ST-4500 - Echo Snow Thrower (SN: 5001018329934 - 5001171329934) Frame, Auger, Scraper Parts Diagram

Snow Thrower

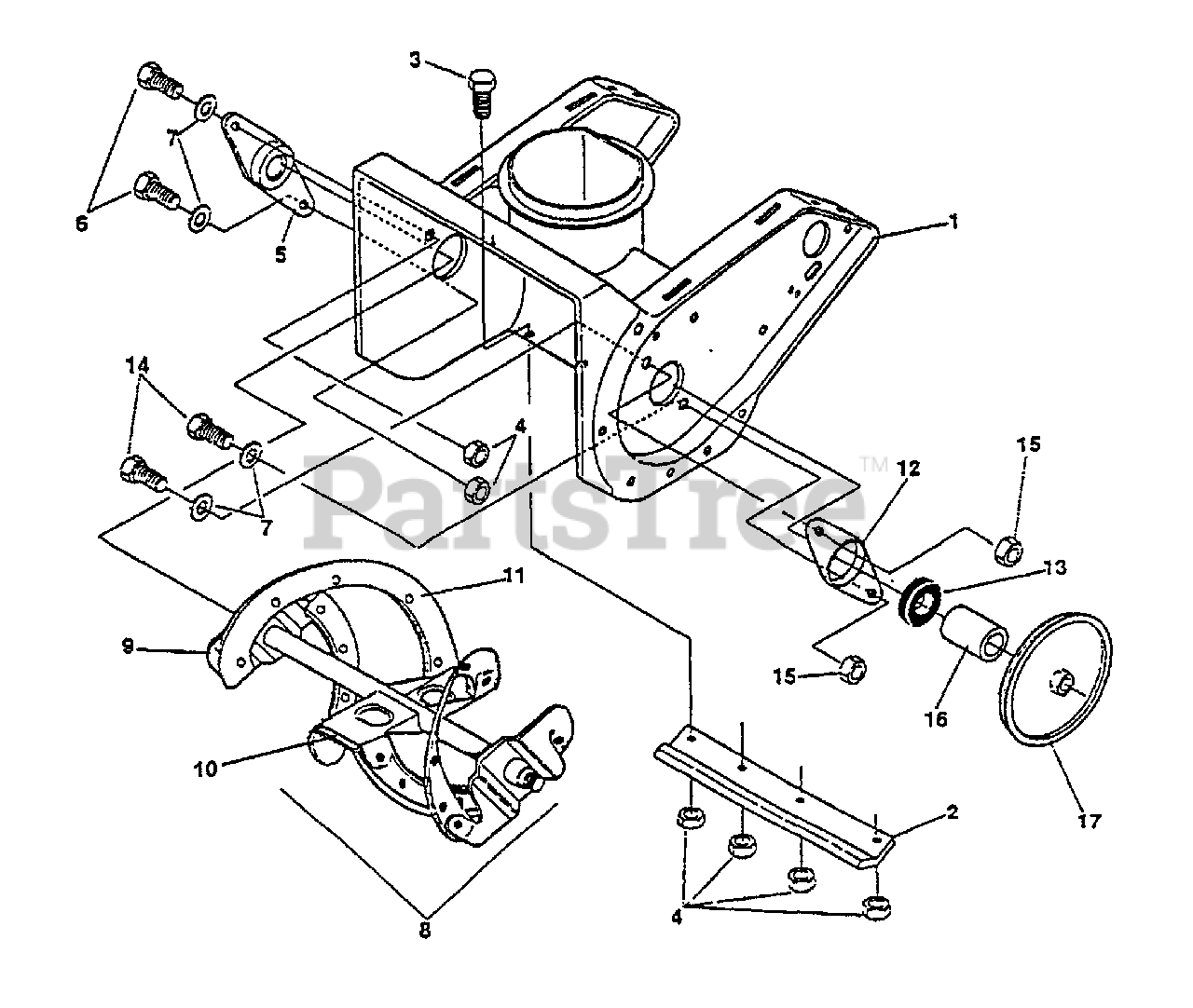

Frame, Auger, Scraper Parts Diagram

  • Title

1

Echo 14307008

AUGER INTAKE ASSY - 21"
(Superseded to Discontinued)

$

$

Not available

2

Echo 14302418

BLADE, SCRAPER

$96.99

$

Usually ships in 2-4 days

0

3

Echo 14055686

SCREW - 1/4-20 X 5/8"
(Superseded to Discontinued)

$

$

Not available

4

Echo 14046931

LOCKNUT - 1/4-20
(Superseded to Discontinued)

$

$

Not available

5

Echo 14054837

BEARING, FLANGE
(Superseded to Discontinued)

$

$

Not available

6

Echo 14303108

SCREW - 1/4-20 X .88"

$1.49

$

Usually ships in 2-4 days

0

7

Echo 14120392

WASHER

$0.99

$

Usually ships in 2-4 days

0

8

Echo 14307049

AUGER ASSY

Note: Does not include blade strips

$145.99

$

Usually ships in 2-4 days

0

8A

Echo 14309376

AUGER ASSY - 21"
(Superseded to Discontinued)

Note: Includes items 8 - 10

$

$

Not available

9

Echo 14302565

AUGER, BLADE STRIP
(Superseded to Discontinued)

$

$

Not available

10

Echo 14057121

AUGER, CENTER BLADE STRIP
(Superseded to 14335992)

$19.99

$

Usually ships in 2-4 days

0

11

Echo 14049838

RIVET - .250 X .5"

$4.99

$

In Stock, Qty 15

0

12

Echo 14007905

RETAINER, BEARING

$4.99

$

Usually ships in 2-4 days

0

13

Echo 14049562

BEARING, BALL - 6203

$10.99

$

Usually ships in 2-4 days

0

14

Echo 14302628

SCREW - 1/4-20 X .75"
(Superseded to Discontinued)

$

$

Not available

15

Echo 14001502

NUT - 1/4-20

$0.99

$

Usually ships in 2-4 days

0

16

Echo 14302428

SPACER, SLEEVE .640X.88X.732

$1.49

$

Usually ships in 2-4 days

0

17

Echo 14301855

PULLEY, V3L 6.00X.75 20 GA

$33.99

$

Usually ships in 2-4 days

0
