ST-4500 - Echo Snow Thrower (SN: 5001181329934 - 5001999999999) Discharge Chute, Chute Worm Parts Diagram

Snow Thrower

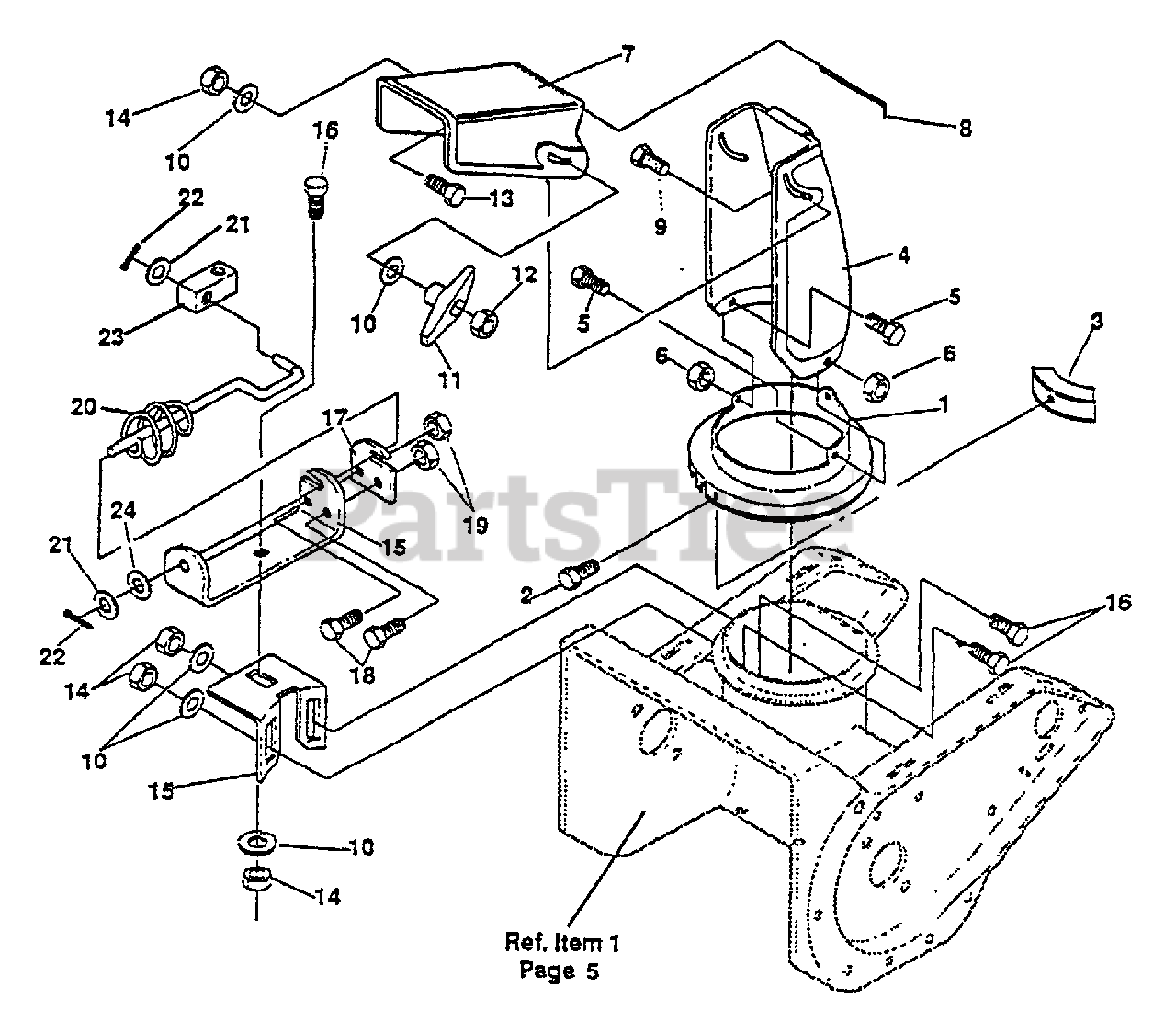

Discharge Chute, Chute Worm Parts Diagram

  • Title

1

Echo 14307842

RING, LWR CHUTE
(Superseded to Discontinued)

$

$

Not available

2

Echo 14056962

SCREW 1/4"-14×0.63

$1.49

$

Usually ships in 2-4 days

0

3

Echo 14300790

CLIP, CHUTE RING PLASTIC
(Superseded to Discontinued)

$

$

Not available

4

Echo 14325048

CHUTE - LOWER
(Superseded to Discontinued)

$

$

Not available

5

Echo 14180016

SCREW 1/4"-20×0.50

$0.99

$

Usually ships in 2-4 days

0

6

Echo 14004631

NUT - 1/4-20
(Superseded to Discontinued)

$

$

Not available

7

Echo 14325049

CHUTE - UPPER

$15.99

$

Usually ships in 2-4 days

0

8

Echo 14310562

WIRE, CHUTE HINGE
(Superseded to Discontinued)

$

$

Not available

9

Echo 14302842

BOLT 5/16"-18×1.25" CARRLN
(Superseded to Discontinued)

$

$

Not available

10

Echo 14120393

WASHER

$1.49

$

Usually ships in 2-4 days

0

11

Echo 14013527

KNOB, T 2 BLADE W/5/16-18 NUT

$2.99

$

Usually ships in 2-4 days

0

12

Echo 14120376

NUT

$2.49

$

Usually ships in 2-4 days

0

13

Echo 14058208

SCREW 5/16"-18×0.75
(Superseded to Discontinued)

$

$

Not available

14

Echo 14001498

NUT, 5/16"-18

$2.99

$

Usually ships in 2-4 days

0

15

Echo 14302505

BRACKET, WORM ADJUST
(Superseded to Discontinued)

Note: S/N 5001018329934 - 5001171329934

$

$

Not available

15

Echo 14300728

BRACKET, CHUTE ROD
(Superseded to Discontinued)

Note: S/N 5001181329934 & up

$

$

Not available

16

Echo 14070993

BOLT, CARRIAGE 5/16-18×0.75
(Superseded to Discontinued)

$

$

Not available

17

Echo 14307741

PLATE, CHUTE ROD
(Superseded to Discontinued)

$

$

Not available

18

Echo 14180016

SCREW 1/4"-20×0.50

$0.99

$

Usually ships in 2-4 days

0

19

Echo 14001502

NUT, 1/4"-20

$0.99

$

Usually ships in 2-4 days

0

20

Echo 14307742

ROD ASSY, CHUTE CONTROL LOWER
(Superseded to Discontinued)

$

$

Not available

21

Echo 14035336

WASHER, FLAT 0.390×0.75×0.031
(Superseded to Discontinued)

$

$

Not available

22

Echo 14121222

PIN - COTTER
(Superseded to Discontinued)

$

$

Not available

23

Echo 14051564

BLOCK, PIVOT PLASTIC
(Superseded to Discontinued)

$

$

Not available

24

Echo 14313431

WASHER, SADDLE
(Superseded to Discontinued)

$

$

Not available
