ST-5000 - Echo Snow Thrower (SN: 5001002 - 5001627) Handles, Auger Ctrl, Wheels Parts Diagram

Snow Thrower

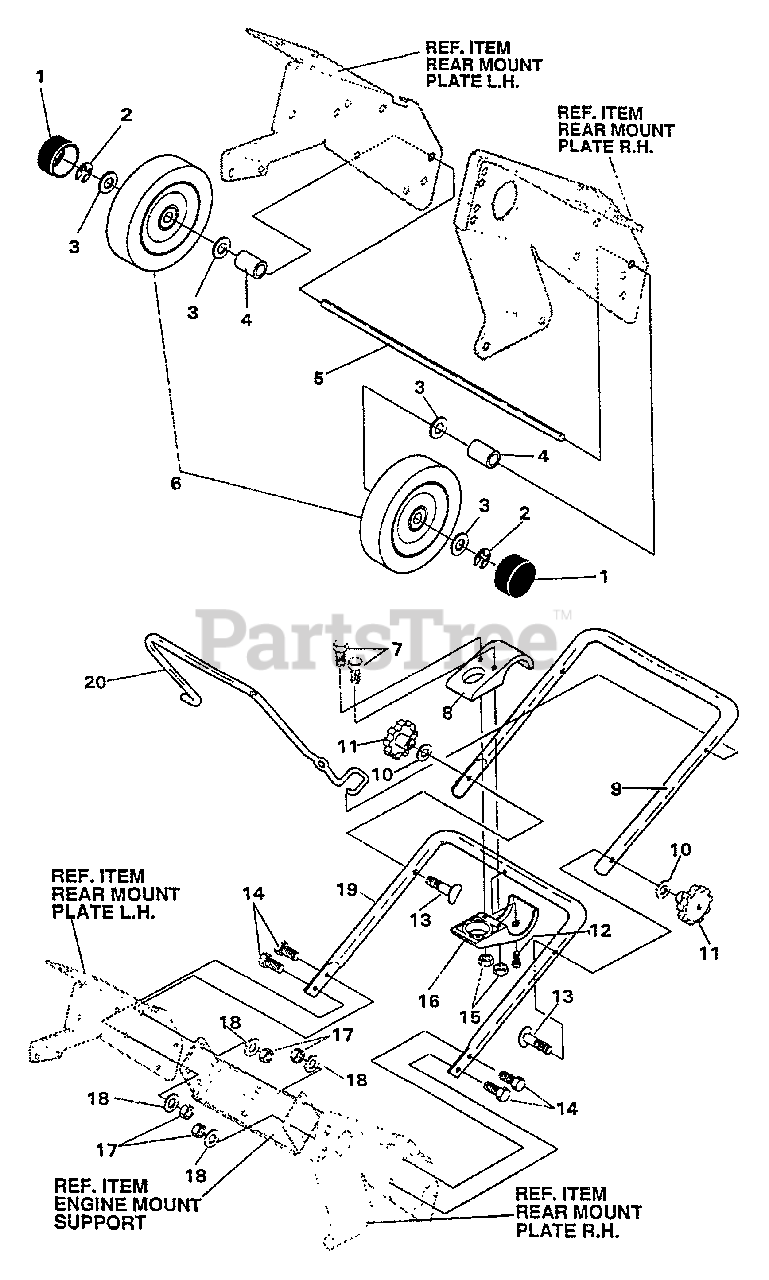

Handles, Auger Ctrl, Wheels Parts Diagram

  • Title

1

Echo 14036832

CAP, HUB
(Superseded to Discontinued)

$

$

Not available

2

Echo 14026178

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

3

Echo 14120394

WASHER
(Superseded to Discontinued)

$

$

Not available

4

Echo 14309656

SPACER

$

$

Not available

5

Echo 14307719

SHAFT, AXLE 5/21
(Superseded to Discontinued)

$

$

Not available

6

Echo 14325016

WHEEL ASSY

$

$

Not available

7

Echo 14309815

SCREW #10-24×1.00

$0.99

$

Usually ships in 2-4 days

0

8

Echo 14308715

BRKT HALF, CHUTE CRANK
(Superseded to Discontinued)

$

$

Not available

9

Echo 14325597

HANDLE, UPPER

$40.99

$

Usually ships in 2-4 days

0

10

Echo 14022025

WASHER
(Superseded to Discontinued)

$

$

Not available

11

Echo 14329935

KNOB

$3.49

$

Usually ships in 2-4 days

0

12

Echo 14310169

SCREW 1/4"-20×0.63

$0.99

$

Usually ships in 2-4 days

0

13

Echo 14337584

BOLT, 5/16-18×2.00

$0.99

$

Usually ships in 2-4 days

0

14

Echo 14180077

SCREW 5/16"-18×0.75

$1.49

$

Usually ships in 2-4 days

0

15

Echo 14997316

NUT
(Superseded to Discontinued)

$

$

Not available

16

Echo 14308716

BRKT HALF, CHUTE CRANK
(Superseded to Discontinued)

$

$

Not available

17

Echo 14001498

NUT, 5/16"-18

$2.99

$

Usually ships in 2-4 days

0

18

Echo 14120393

WASHER

$1.49

$

Usually ships in 2-4 days

0

19

Echo 14309964

HANDLE, LOWER
(Superseded to Discontinued)

$

$

Not available

20

Echo 14307007

BAR, CONTROL DRIVE 0.31 DIA.
(Superseded to 14307747)

$47.99

$

Usually ships in 2-4 days

0
