ST-5024 - Echo Snow Thrower (Type 1E) Impeller Assembly, Worm Gear, Auger Shaft, Gear Case Parts Diagram

Snow Thrower (Type 1E)

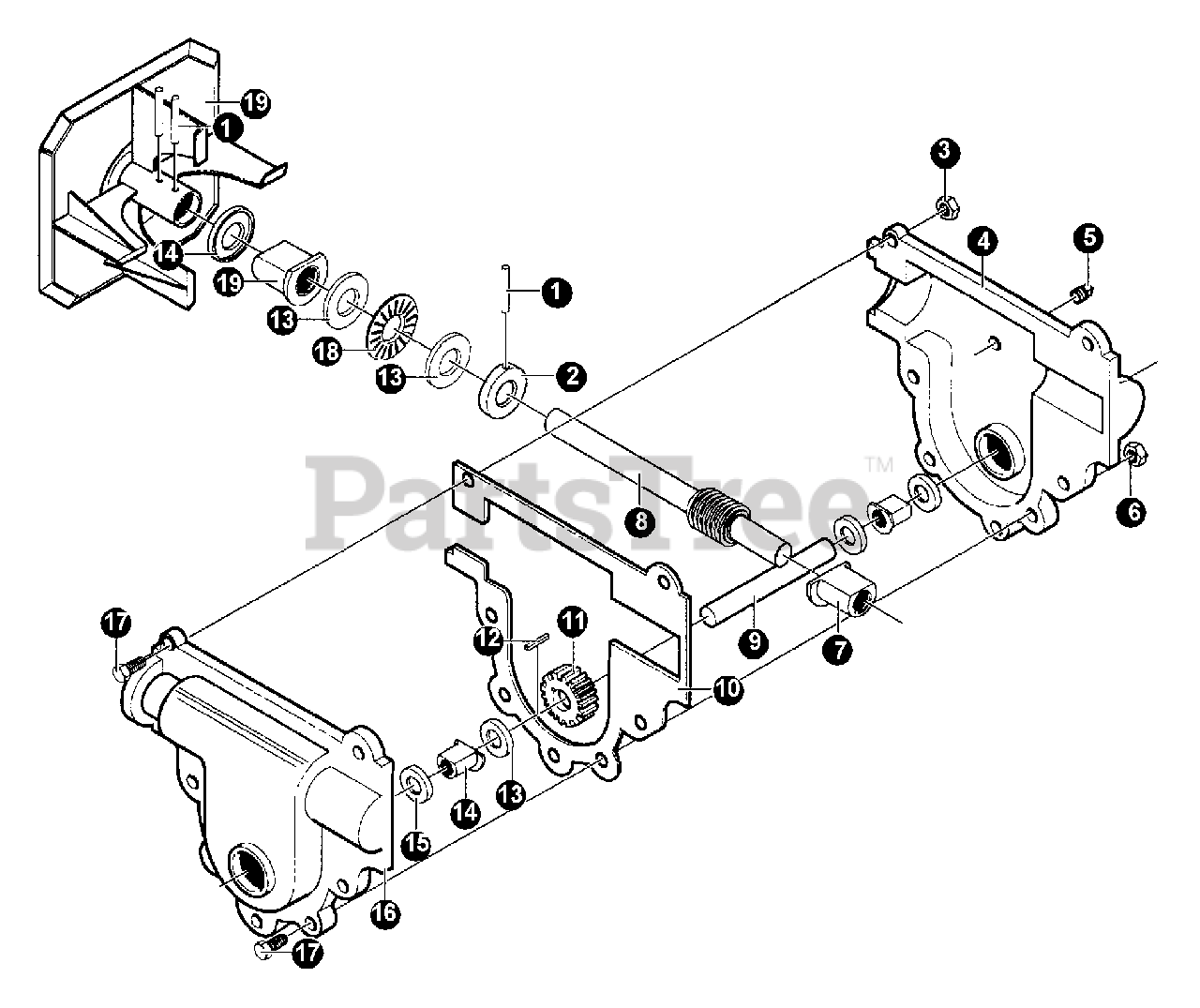

Impeller Assembly, Worm Gear, Auger Shaft, Gear Case Parts Diagram

  • Title

1

Echo 14454565

PIN, SPRING
(Superseded to Discontinued)

$

$

Not available

2

Echo 14580295

COLLAR, THRUST 0.753×1.24×0.50
(Superseded to Discontinued)

$

$

Not available

3

Echo 14303008

NUT
(Superseded to Discontinued)

$

$

Not available

4

Echo 14010576

CASE, GEAR - LEFT
(Superseded to Discontinued)

$

$

Not available

5

Echo 14009344

SCREW 3/8"-16
(Superseded to Discontinued)

$

$

Not available

6

Echo 14046931

NUT, 1/4"-20
(Superseded to Discontinued)

$

$

Not available

7

Echo 14050221

BEARING, FL 0.502IDX0.752ODX0.75
(Superseded to Discontinued)

$

$

Not available

8

Echo 14583125

SHAFT, WORM

$53.99

$

Usually ships in 2-4 days

0

9

Echo 14340286

SHAFT, AUGER OUTPUT
(Superseded to Discontinued)

$

$

Not available

10

Echo 14051279

GASKET, GEAR CASE

$2.49

$

Usually ships in 2-4 days

0

11

Echo 14051405

GEAR, WORM
(Superseded to Discontinued)

$

$

Not available

12

Echo 14431787

KEY, WOODRUFF #61

$2.49

$

Usually ships in 2-4 days

0

13

Echo 14009346

WASHER, FLAT
(Superseded to Discontinued)

$

$

Not available

14

Echo 14050304

BEARING, FL 0.752IDX1.002OD
(Superseded to Discontinued)

$

$

Not available

15

Echo 14009566

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

16

Echo 14010577

CASE, GEAR - RIGHT
(Superseded to Discontinued)

$

$

Not available

17

Echo 14180020

SCREW 1/4 - 20×75 HHC

$1.49

$

Usually ships in 2-4 days

0

18

Echo 14313828

BEARING, ROLL

$4.99

$

Usually ships in 2-4 days

0

19

Echo 14585598

IMPEL ASSY
(Superseded to 14760194)

$

$

Not available
