ST 521 E - Husqvarna 21" Snow Blower (1997-01) FRAME Parts Diagram

21" Snow Blower

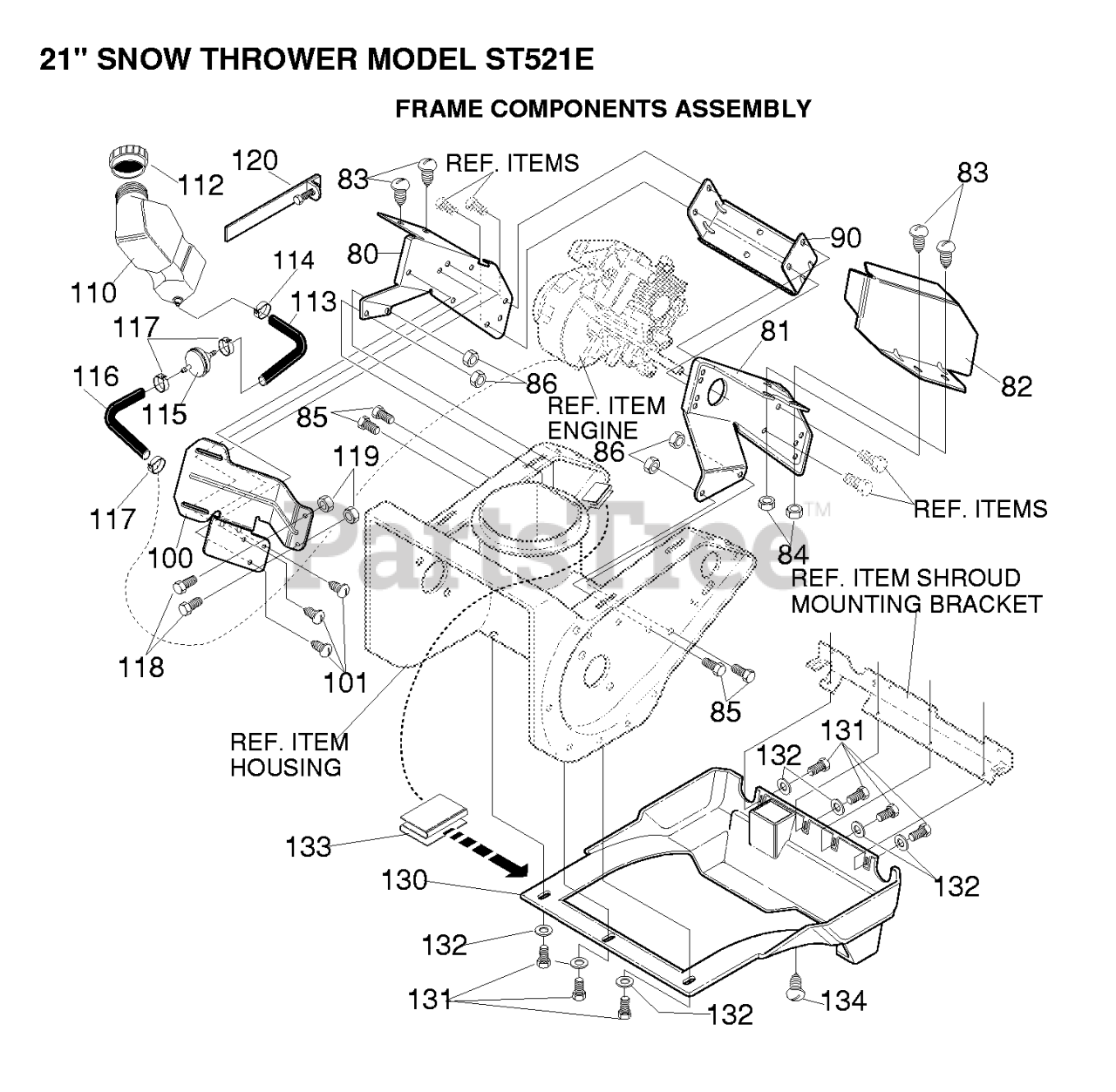

FRAME Parts Diagram

  • Title

132

Husqvarna 601001703

WASHER

$

$

Not available

82

Husqvarna 601001769

SHIELD, ENGINE HEAT

$

$

Not available

110

Husqvarna 601001774

TANK, FUEL, 1.62 QT.

$

$

Not available

120

Husqvarna 601001780

CLAMP, WORM DR

$

$

Not available

131

Husqvarna 601001782

SCREW, #10-24X.63
(Superseded to 601001792)

$

$

Not available

80

Husqvarna 601001767

PLATE, REAR MT RH

$

$

Not available

101

Husqvarna 601001773

SCREW, #10-24X.63
(Superseded to 601001792)

$

$

Not available

112

Husqvarna 601001775

CAP, FUEL, W/2654 SEAL

$

$

Not available

134

Husqvarna 601000883

SCREW, 10-16X.50 DRILLITE

$

$

Not available

86

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

In Stock, only 2 left!

0

113

Husqvarna 601001776

TUBING, GAS LINE 8 IN.

$

$

Not available

100

Husqvarna 601001772

BRACKET, GAS TANK 2 CY

$

$

Not available

84

Husqvarna 601000827

NUT 1/4-20

$4.99

$

In Stock, only 4 left!

0

90

Husqvarna 601001771

SUPPORT, FRAME

$

$

Not available

117

Husqvarna 601001779

CLAMP, TUBING

$

$

Not available

119

Husqvarna 601001367

NUT

$

$

Not available

116

Husqvarna 601001778

TUBING, GAS LINE 3 IN.

$

$

Not available

83

Husqvarna 601001770

SCREW, 1/4-20X.63

$

$

Not available

114

Husqvarna 601000554

CLAMP, HOSE

$

$

Not available

118

Husqvarna 601001366

SCREW

$

$

Not available

130

Husqvarna 601002084

SHROUD, BOTTOM

$

$

Not available

115

Husqvarna 601001777

FILTER, IN-LINE

$

$

Not available

81

Husqvarna 601001768

PLATE, REAR MT LH
(Superseded to 601400023)

$

$

Not available

85

Husqvarna 601001640

SCREW 5/16-18X.50

$

$

Not available

133

Husqvarna 601001783

CLIP, "S" TINNERMAN

$

$

Not available
