ST 522 H - Husqvarna 22" Snow Blower (1996-10) Chute Assembly Parts Diagram

22" Snow Blower

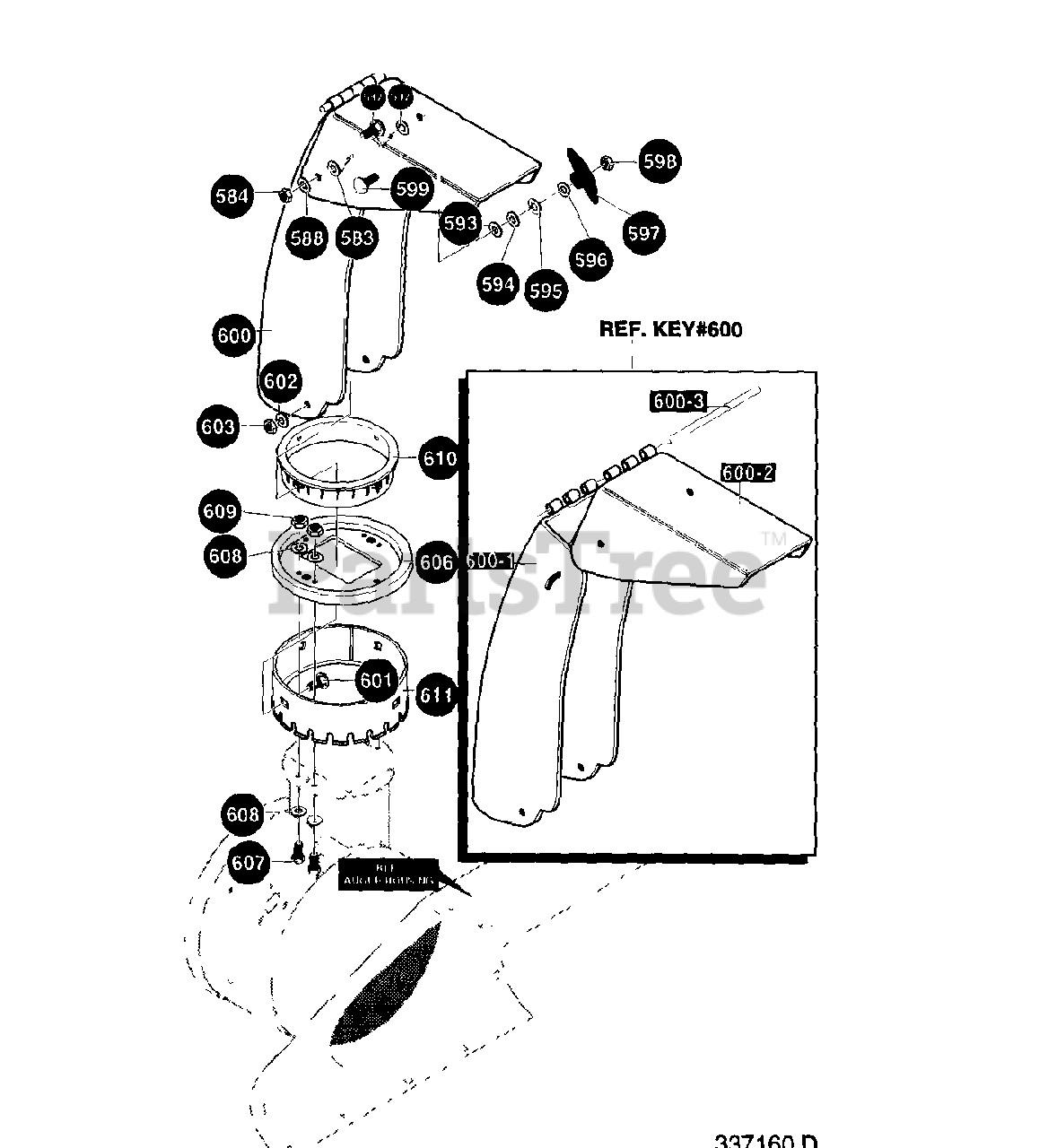

Chute Assembly Parts Diagram

  • Title

582

Husqvarna 601001411

Bolt, 5/16-18 x .75

$

$

Not available

583

Husqvarna 601002126

Washer, Pl .438 x .75 x .064

$

$

Not available

584

Husqvarna 601000059

Nut, 5/16-18 Reghexctrlk

$6.99

$

In Stock, only 2 left!

0

588

Husqvarna 601001524

Washer, 315 x .75 x .064

$

$

Not available

592

Husqvarna 601002126

Washer, Pl 438 x .75 x .064

$

$

Not available

593

Husqvarna 601000059

Washer, 315 x .75 x .064

$6.99

$

In Stock, only 2 left!

0

594

Husqvarna 601000019

Flatwasher 344 x .69 x .065

$3.49

$

In Stock, only 1 left!

0

595

Husqvarna 601000023

Washer, .328 x .60 x .09

$

$

Not available

596

Husqvarna 601000019

Flatwasher 344 x .69 x .065

$3.49

$

In Stock, only 1 left!

0

597

Husqvarna 601000684

Knob, T
(Superseded to 601400069)

$14.99

$

In Stock, only 1 left!

0

598

Husqvarna 601000012

Nut, 5/16-18 Reghex

$

$

Not available

599

Husqvarna 601000899

Bolt, Carr 5/16-18 x 1.00

$

$

Not available

600

Husqvarna 601002127

Chute Assembly

$

$

Not available

6001

Husqvarna 601002128

Lower Chute

$

$

Not available

6002

Husqvarna 601002129

Upper Chute

$

$

Not available

6003

Husqvarna 601002130

Hinge Pin

$

$

Not available

601

Husqvarna 601002040

Bolt, 5/16-18 x 1.00

$

$

Not available

602

Husqvarna 601000019

Flatwasher, .344 x .69 x .065

$3.49

$

In Stock, only 1 left!

0

603

Husqvarna 601001464

Nut,5/16-18 Hexnyl

$

$

Not available

606

Husqvarna 601001838

Collar, Chute

$

$

Not available

607

Husqvarna 601000068

Screw, 1/4-20 x .75

$

$

Not available

608

Husqvarna 601000018

Flatwasher, 281 x .63 x .065

$

$

Not available

609

Husqvarna 601000062

Nut, 1/4-20
(Superseded to 601002318)

$7.99

$

In Stock, only 2 left!

0

610

Husqvarna 601001839

Retainer, Ring Inner

$17.99

$

In Stock, Qty 8

0

611

Husqvarna 601001840

Retainer, Ring Outer

$29.99

$

In Stock, Qty 9

0
