ST 522 H - Husqvarna 22" Snow Blower (1998-01) Engine Assembly Parts Diagram

22" Snow Blower

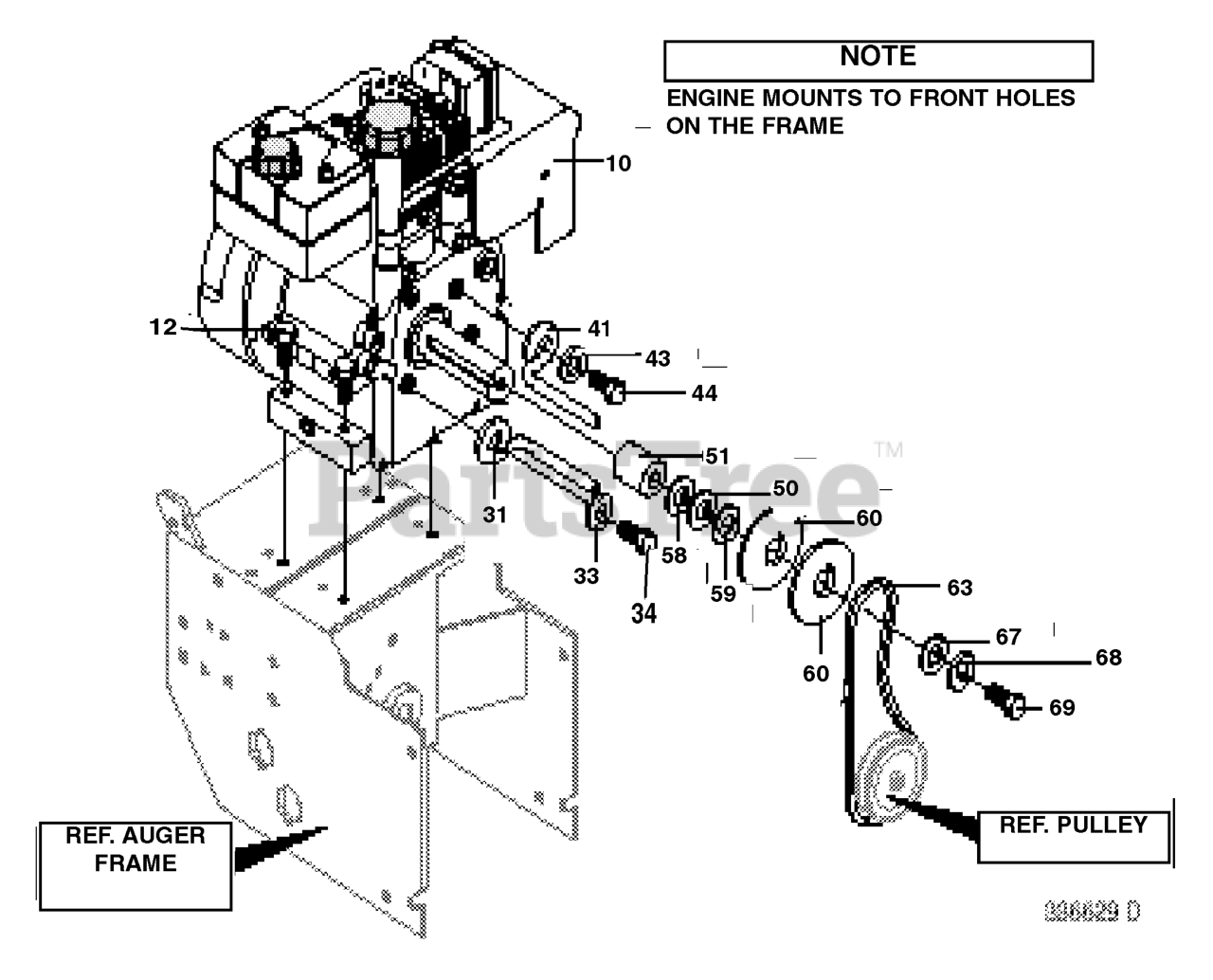

Engine Assembly Parts Diagram

  • Title

10

Engine

Note: See "Engine" Manual

$

$

Not available

12

Husqvarna 601002162

SCREW, 5/16-18

$

$

Not available

31

Husqvarna 601001432

BELT GUIDE

$

$

Not available

33

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X

$

$

Not available

34

Husqvarna 601001443

SCREW

$

$

Not available

41

Husqvarna 601001432

BELT GUIDE

$

$

Not available

43

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X

$

$

Not available

44

Husqvarna 601001443

SCREW

$

$

Not available

50

UNKNOWN

$

$

Not available

51

Husqvarna 601002145

SPACER, SLEV

$

$

Not available

58

Husqvarna 601001438

WASHER

$

$

Not available

59

Husqvarna 601002020

Spacer, Slev .753 x 1.12 x .38

$

$

Not available

60

Husqvarna 601002021

PULLEY, ENGINE

$

$

Not available

63

Husqvarna 601002148

V-BELT

$

$

Not available

67

Husqvarna 601001441

WASHER

$

$

Not available

68

Husqvarna 601000015

WASHER, REGSPTLK.393X.68X

$

$

Not available

69

Husqvarna 601000527

SCREW, 3/8-24X1.00 NYLHHC

$

$

Not available

Husqvarna 601002327

Owner's Manual

$

$

Not available
