ST 523 - Husqvarna 23" Snow Blower (1995-01) Engine Parts Diagram

23" Snow Blower

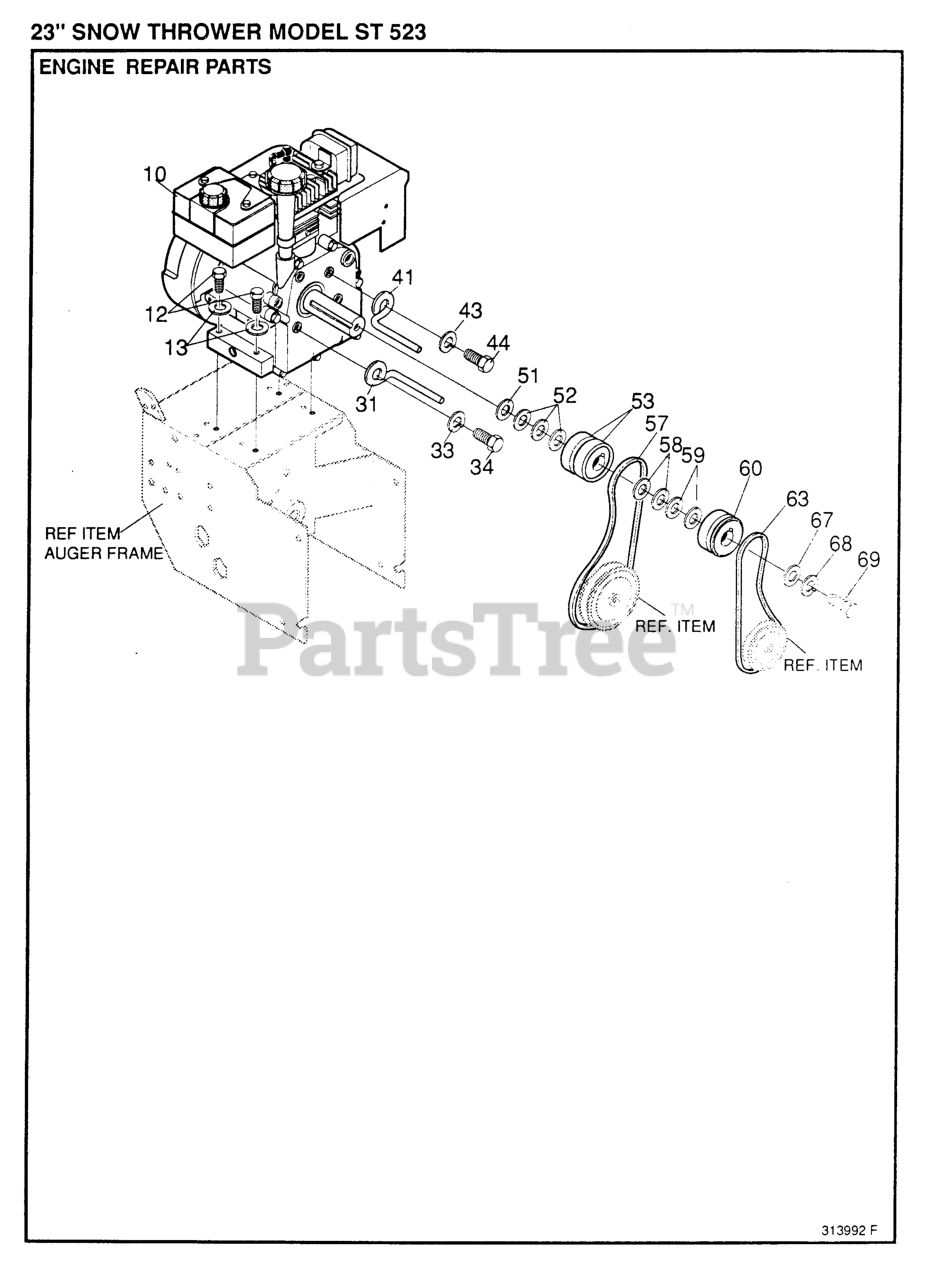

Engine Parts Diagram

  • Title

10

ENGINE, 5 HP

$

$

Not available

12

Husqvarna 601001431

SCREW

$

$

Not available

13

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X

$

$

Not available

31

Husqvarna 601001432

BELT GUIDE

$

$

Not available

33

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X

$

$

Not available

34

Husqvarna 601001433

SCREW

$

$

Not available

41

Husqvarna 601001432

BELT GUIDE

$

$

Not available

43

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X

$

$

Not available

44

Husqvarna 601001433

SCREW

$

$

Not available

51

Husqvarna 601001434

WASHER

$

$

Not available

52

Husqvarna 601001435

WASHER

$

$

Not available

53

Husqvarna 601001436

PULLEY

$

$

Not available

54

Husqvarna 601001435

WASHER

$

$

Not available

57

Husqvarna 601001437

BELT 1733324SM

$19.99

$

In Stock, Qty 8

0

58

Husqvarna 601001438

WASHER

$

$

Not available

59

Husqvarna 601001435

WASHER

$

$

Not available

60

Husqvarna 601001439

PULLEY

$

$

Not available

63

Husqvarna 601001440

BELT

$

$

Not available

67

Husqvarna 601001441

WASHER

$

$

Not available

68

Husqvarna 601000015

WASHER, REGSPTLK.393X.68X

$

$

Not available

69

Husqvarna 601000527

SCREW, 3/8-24X1.00 NYLHHC

$

$

Not available

Husqvarna 601001586

OWNER'S MANUAL

$

$

Not available
