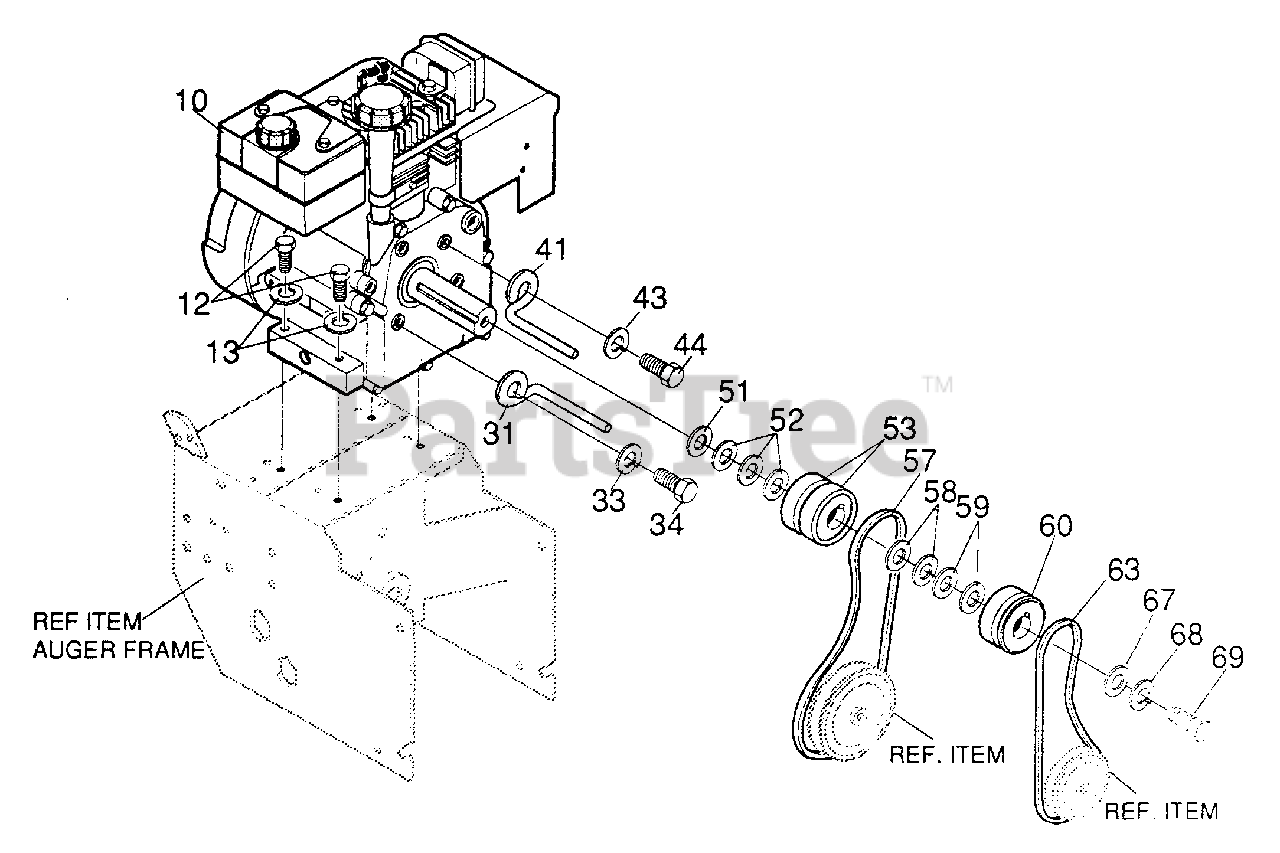

ST 523 - Husqvarna 23" Snow Blower (1995-01) Engine Parts Diagram

23" Snow Blower

Engine Parts Diagram

  • Title

10

ENGINE, 5 HP

$

$

Not available

12

Husqvarna 601001431

SCREW, 5/16-180.25

$

$

Not available

13

Husqvarna 601000023

WASHER, HVSPTLK .328 x .60 x .09

$

$

Not available

31

Husqvarna 601001432

GUIDE, ROD BELT, RH

$

$

Not available

33

Husqvarna 601000023

WASHER, HVSPTLK .328 x .60 x .09

$

$

Not available

34

Husqvarna 601001433

SCREW, 5/16-24 x .625 HHC

$

$

Not available

41

Husqvarna 601001432

GUIDE, ROD BELT RH

$

$

Not available

43

Husqvarna 601000023

WASHER, HVSPTLK .328 x .60 x .09

$

$

Not available

44

Husqvarna 601001433

SCREW, 5/16-24 x .625 HHC

$

$

Not available

51

Husqvarna 601001434

WASHER, CRANKSHAFT

$

$

Not available

52

Husqvarna 601001435

FLATWASHER, .752 x .91 x .02

$

$

Not available

53

Husqvarna 601001436

PULLEY, HALF V31- 2.00 x .752 ID

$

$

Not available

54

Husqvarna 601001435

WASHER, FLAT .752 x .91 x .02

$

$

Not available

57

Husqvarna 601001437

BELT, V 3L 33.13 LONG

$19.99

$

In Stock, Qty 20+

0

58

Husqvarna 601001438

FLATWASHER, .7650 .12 x .06

$

$

Not available

59

Husqvarna 601001435

FLATWASHER, .752 x .91 x .02

$

$

Not available

60

Husqvarna 601001439

PULLEY, ENGINE V41

$

$

Not available

63

Husqvarna 601001440

BELT, V 4L AUG DRIVE 30.7

$

$

Not available

67

Husqvarna 601001441

FLATWASHER

$

$

Not available

68

Husqvarna 601000015

WASHER, REGSPTLK.393 x .68 x .10

$

$

Not available

69

Husqvarna 601000527

SCREW, 3/8-240.00 NYL

$

$

Not available

Husqvarna 601001586

OWNER'S MANUAL

$8.99

$

Usually ships in 3-10 days

0
