ST 523 - Husqvarna 23" Snow Blower (1995-01) HANDLE & CONTROLS Parts Diagram

23" Snow Blower

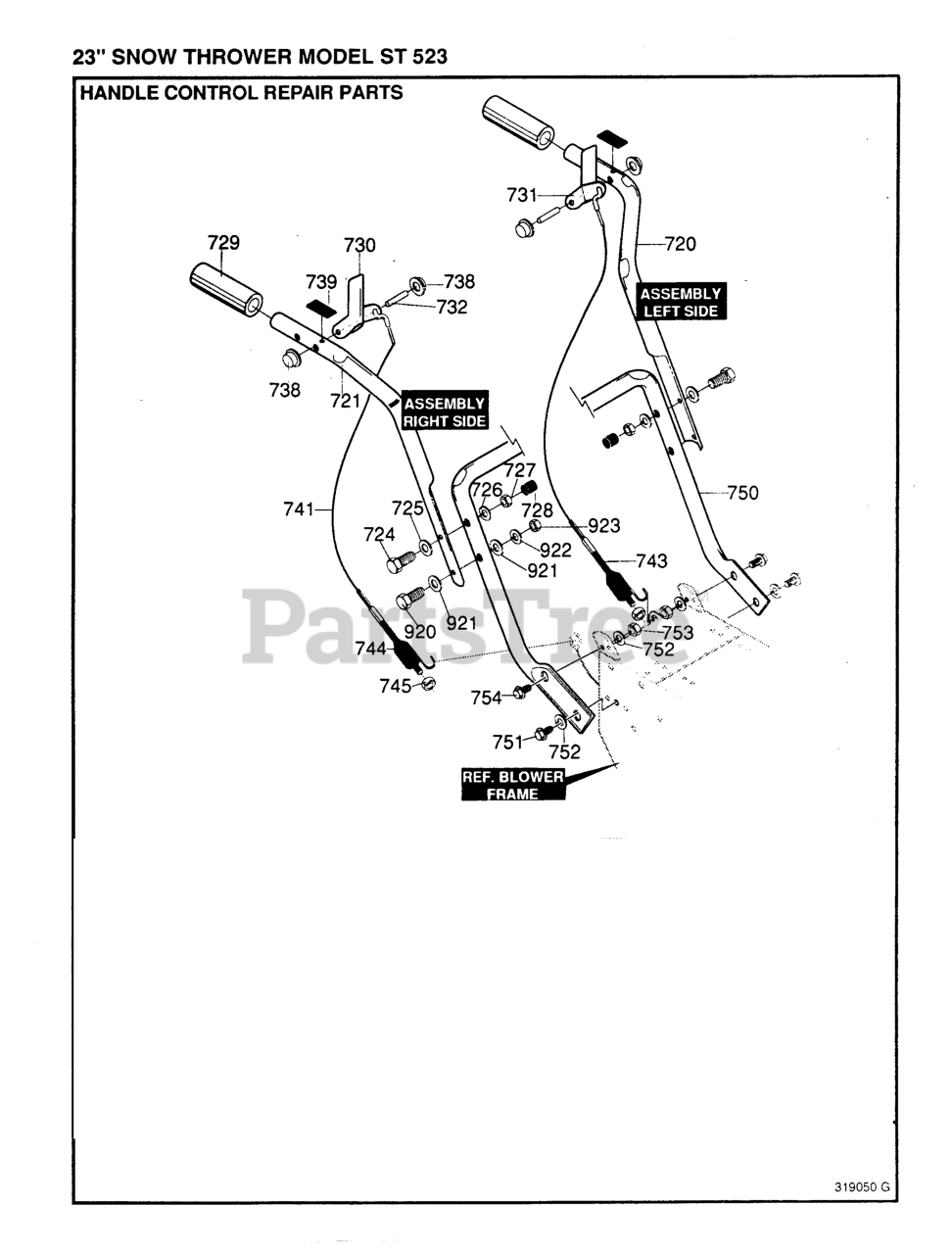

HANDLE & CONTROLS Parts Diagram

  • Title

751

Husqvarna 601000073

SCREW, 5/16-18X .75 HHC

$

$

Not available

922

Husqvarna 601000015

WASHER, REGSPTLK.393X.68X

$

$

Not available

720

Husqvarna 601001542

UPPER HANDLE, LH

$

$

Not available

741

Husqvarna 601001551

CLUTCH CABLE

$

$

Not available

745

Husqvarna 601000062

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$14.99

$

Usually ships in 3-10 days

0

753

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

738

Husqvarna 601000516

NUT, PUSH ON CAP .312 OD

$

$

Not available

752

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X

$

$

Not available

721

Husqvarna 601001543

UPPER HANDLE, RH

$

$

Not available

724

Husqvarna 601001544

SCREW

$

$

Not available

750

Husqvarna 601001554

LOWER HANDLE

$

$

Not available

923

Husqvarna 601000060

NUT, 3/8-16 REGHXCTRLK
(Superseded to 601002407)

$

$

Not available

754

Husqvarna 601000520

SCREW, 5/16-18X .75 WAHHT

$

$

Not available

731

Husqvarna 601001548

HANDLE, LH
(Superseded to 601001927)

$

$

Not available

725

Husqvarna 601000020

WASHER, FLAT .406X .81X.

$

$

Not available

728

Husqvarna 601001545

STOP

$

$

Not available

921

Husqvarna 601000020

WASHER, FLAT .406X .81X.

$

$

Not available

730

Husqvarna 601001547

HANDLE, RH
(Superseded to 601001926)

$

$

Not available

727

Husqvarna 601000060

NUT, 3/8-16 REGHXCTRLK
(Superseded to 601002407)

$

$

Not available

920

Husqvarna 601001555

SCREW

$

$

Not available

739

Husqvarna 601001550

BUMPER

$

$

Not available

743

Husqvarna 601001552

SPRING TENSION

$

$

Not available

732

Husqvarna 601001549

PIVOT PIN

$

$

Not available

726

Husqvarna 601000015

WASHER, REGSPTLK.393X.68X

$

$

Not available

744

Husqvarna 601001553

CLUTCH SPRING

$

$

Not available

729

Husqvarna 601001546

HANDLE GRIP

$

$

Not available
