ST 523 - Husqvarna 23" Snow Blower (1995-01) Wheel Assembly Parts Diagram

23" Snow Blower

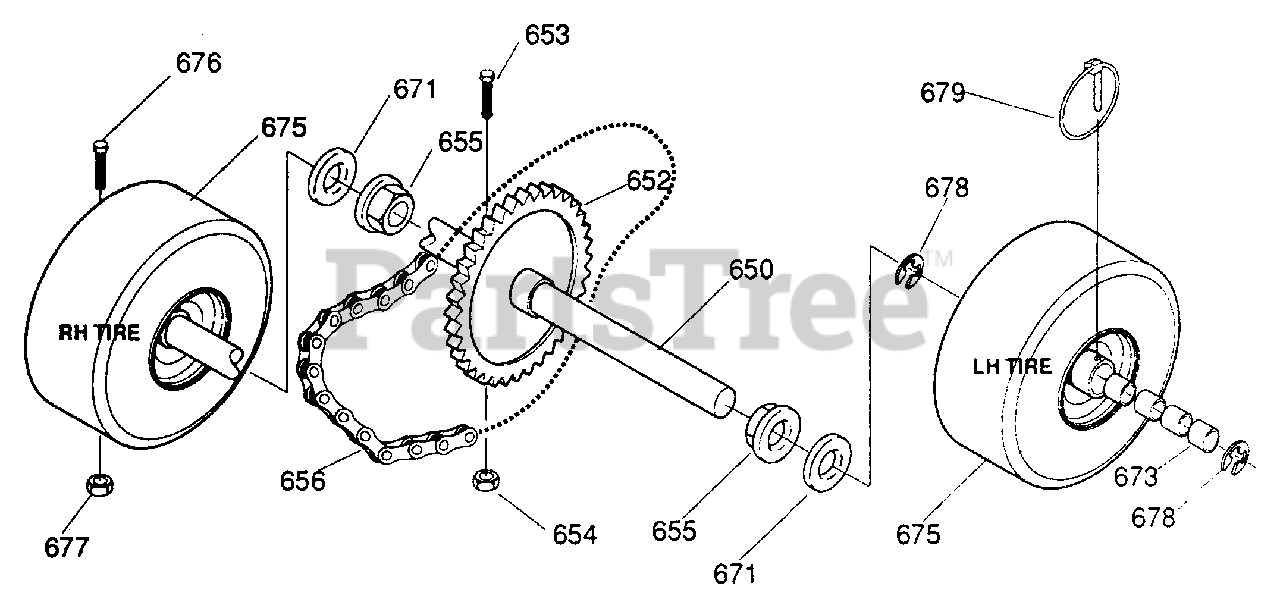

Wheel Assembly Parts Diagram

  • Title

650

Husqvarna 601001533

SHAFT, AXLE

$

$

Not available

652

Husqvarna 601001534

SPRKT HUB #40-35T x .75 ID

$

$

Not available

653

Husqvarna 601001535

SCREW, 1/4-20 x 2.25

$

$

Not available

654

Husqvarna 601000062

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$7.99

$

In Stock, only 2 left!

0

655

Husqvarna 601001536

BEARING, FL .755 ID x 1.127 OD x .75

$24.99

$

In Stock, only 2 left!

0

656

Husqvarna 601001486

CHAIN, ROLLER #42 x 40PITCHES

$

$

Not available

671

Husqvarna 601001438

FLATWASHER,.765 x 1.12 x .06

$

$

Not available

673

Husqvarna 601001537

BEARING, FLANGE

$

$

Not available

675

Husqvarna 601001538

TIRE & RIM, PU 13 x 5.O x 6

$

$

Not available

676

Husqvarna 601001539

SCREW, SHR 1/4-20 x 1.75

$

$

Not available

677

Husqvarna 601000062

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$7.99

$

In Stock, only 2 left!

0

678

Husqvarna 601001540

RING, RET

$

$

Not available

679

Husqvarna 601001541

PIN, KLIK.25 x 1.38 DIA

$

$

Not available
