ST 525 (UT-15177) - Homelite String Trimmer Shaft - Spool & String - Grass Deflector Parts Diagram

String Trimmer

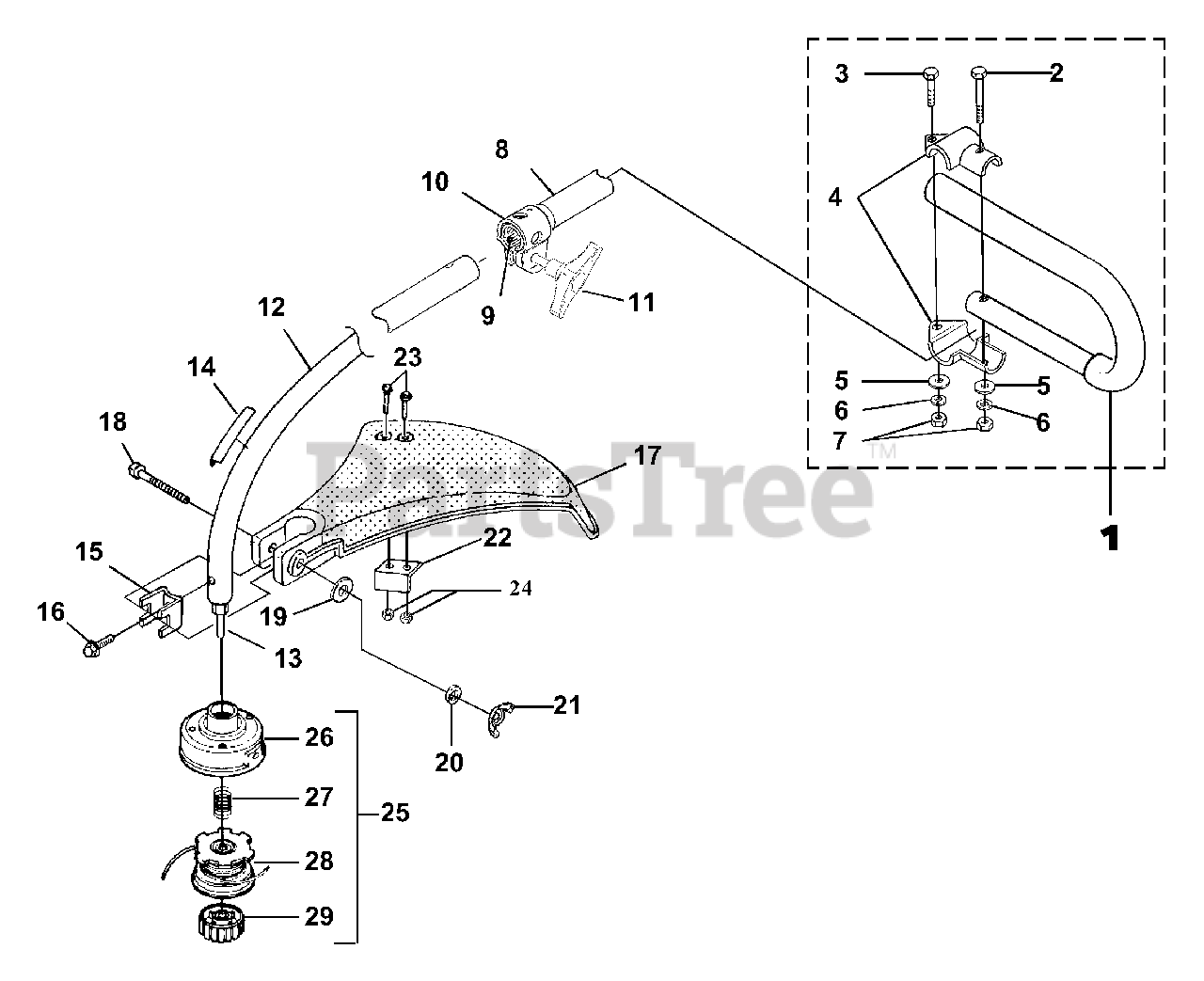

Shaft - Spool & String - Grass Deflector Parts Diagram

  • Title

1

Homelite A07159

HANDLE("J")
(Superseded to UP06534)

Note: Includes items 2-7

$

$

Not available

2

Homelite UP04154

SCREW-Hex Hd. (1/4-20 X 1 1/2")
(Superseded to 82278)

$1.49

$

Usually ships in 3-7 days

0

3

Homelite UP04158

SCREW-Hex Hd. (1/4-20 X 1")
(Superseded to 82496)

$

$

Not available

4

Homelite UP04105

CLAMP-Handle Bar
(Superseded to 099075001007)

$1.49

$

Usually ships in 3-7 days

0

5

Homelite UP04251

WASHER-Flat (1/4")
(Superseded to 84004)

$1.49

$

Usually ships in 3-7 days

0

6

Homelite UP03409

WASHER-Lock (1/4")
(Superseded to 83009)

$4.99

$

Usually ships in 3-7 days

0

7

Homelite UP03399

NUT-Hex (1/4-20)
(Superseded to 81242)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite UP05136

DRIVESHAFT ASSY. (Upper)
(Superseded to UP05136A)

Note: Includes items 9-11

$46.99

$

Usually ships in 3-7 days

0

9

Homelite A07667

FLEXSHAFT w/Collar & Liner
(Superseded to A07667A)

$

$

Not available

10

Homelite UP03839

COUPLER KIT
(Superseded to UP03839A)

Note: Includes item 11

$

$

Not available

11

Homelite UP05137

KNOB
(Superseded to PS02071)

$

$

Not available

12

Homelite UP03851

DRIVESHAFT HOUSING (Lower)
(Superseded to UP03851A)

Note: Includes items 13-16

$19.99

$

Usually ships in 3-7 days

0

13

Homelite A07673

SHAFT-Flex

$35.99

$

Usually ships in 3-7 days

0

14

Homelite PS00038

DECAL-Warning
(Superseded to UP04352)

$

$

Not available

15

Homelite 07928

CLAMP
(Superseded to UP04137)

$

$

Not available

16

Homelite 88077

SCREW-Sems Hex (10-24 X 3/8")
(Superseded to PS05243)

$

$

Not available

17

Homelite A04705

DEFLECTOR & BLADE KIT (55 Deg.)
(Superseded to UP06710A)

Note: Includes items 18-24

$

$

Not available

18

Homelite 80295

SCREW-Cap Hex Hd. (1/4-20 X 2")

$2.99

$

Usually ships in 3-7 days

0

19

Homelite 84006

WASHER-Flat (1/4")

$

$

Not available

20

Homelite 83009

WASHER-Lock (1/4")

$4.99

$

Usually ships in 3-7 days

0

21

Homelite 93992

NUT-Wing, Washer Faced (1/4-20)

$

$

Not available

22

Homelite UP04119

BLADE-Cut-Off

Note: Includes items 23-24

$

$

Not available

23

Homelite 82531

SCREW-Mech. Hex Hd. (10-24 X 7/8")
(Superseded to 660616001)

$

$

Not available

24

Homelite 81208

NUT-Hex (10-24)

$

$

Not available

25

Homelite DA04591A

STRINGHEAD-Complete (.095")
(Superseded to DA04591AA)

Note: Includes items 26-29

$60.99

$

In Stock, only 1 left!

0

26

Homelite A98231A

HOUSING & EYELET (Dual Line)
(Superseded to 099068001005)

$

$

Not available

27

Homelite 06713

SPRING-Compression

$1.49

$

In Stock, only 2 left!

0

28

Homelite UP00147

SPOOL & STRING (.095")
(Superseded to UP04661A)

$60.99

$

In Stock, only 1 left!

0

29

Homelite DA98866A

RETAINER-Spool (R.H. Thread, Black)
(Superseded to UP04273A)

$

$

Not available
