ST 624 - Husqvarna 24" Snow Blower (1998-01) Engine Assembly Parts Diagram

24" Snow Blower

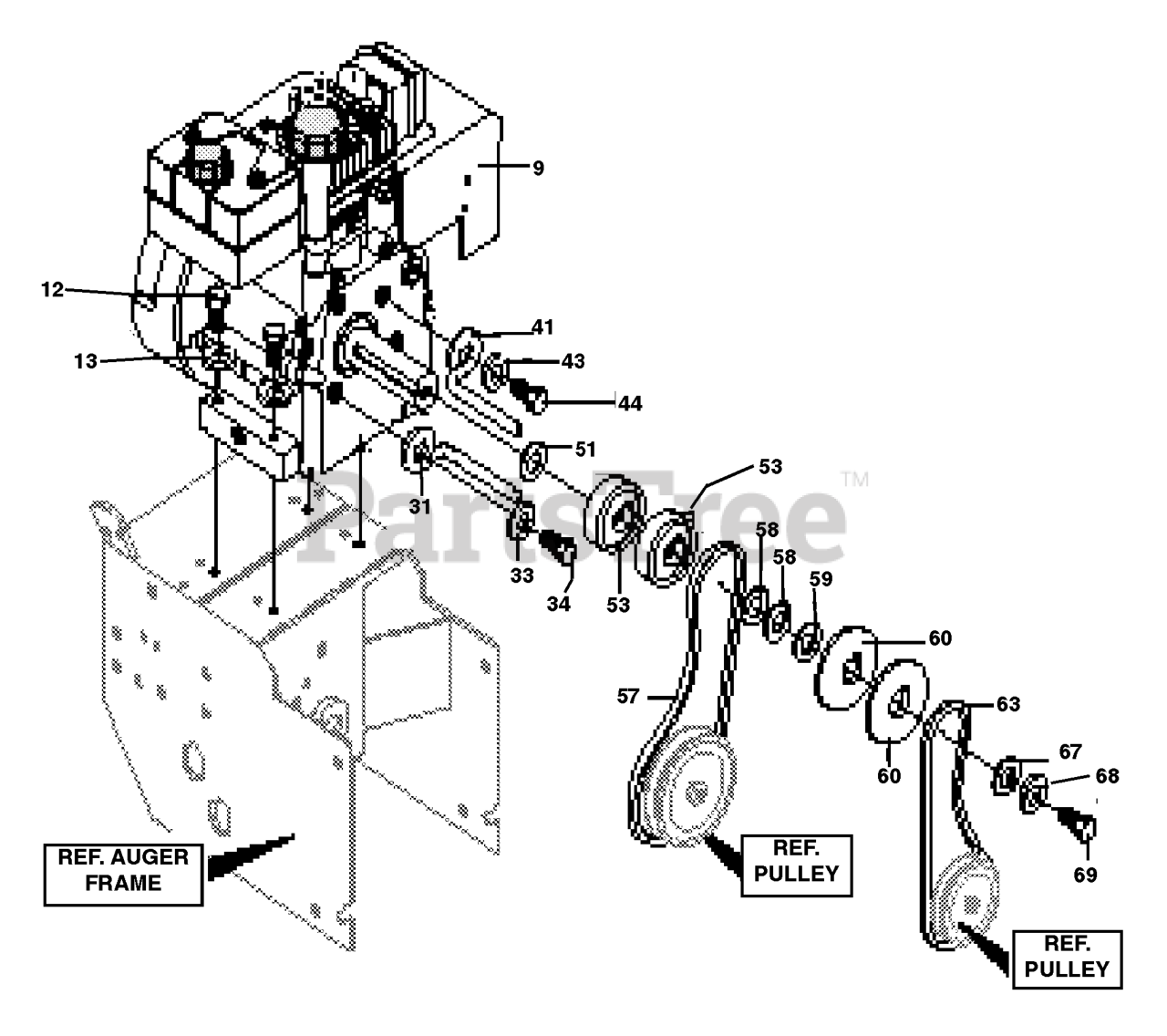

Engine Assembly Parts Diagram

  • Title

9

UNKNOWN

$

$

Not available

10

ENGINE, 6HP

Note: See Engine Manual

$

$

Not available

12

Husqvarna 601002162

SCREW, 5/16-18

$

$

Not available

13

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X

$

$

Not available

31

Husqvarna 601001517

SPACER

$5.99

$

In Stock, only 3 left!

0

33

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X

$

$

Not available

34

Husqvarna 601001443

SCREW

$

$

Not available

41

Husqvarna 601001517

SPACER

$5.99

$

In Stock, only 3 left!

0

43

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X

$

$

Not available

44

Husqvarna 601001443

SCREW

$

$

Not available

51

Husqvarna 601001434

WASHER

$

$

Not available

53

Husqvarna 601001436

PULLEY

$

$

Not available

57

Husqvarna 601001437

BELT 1733324SM

$19.99

$

In Stock, Qty 8

0

58

Husqvarna 601001438

WASHER

$

$

Not available

59

Husqvarna 601002020

SPACER, SLEEVE

$

$

Not available

60

Husqvarna 601002021

PULLEY, ENGINE

$

$

Not available

63

Husqvarna 601002148

V-BELT

$

$

Not available

67

Husqvarna 601001441

WASHER

$

$

Not available

68

Husqvarna 601000015

WASHER, REGSPTLK.393X.68X

$

$

Not available

69

Husqvarna 601000527

SCREW, 3/8-24X1.00 NYLHHC

$

$

Not available

Husqvarna 601002371

OWNER'S MANUAL

$

$

Not available
