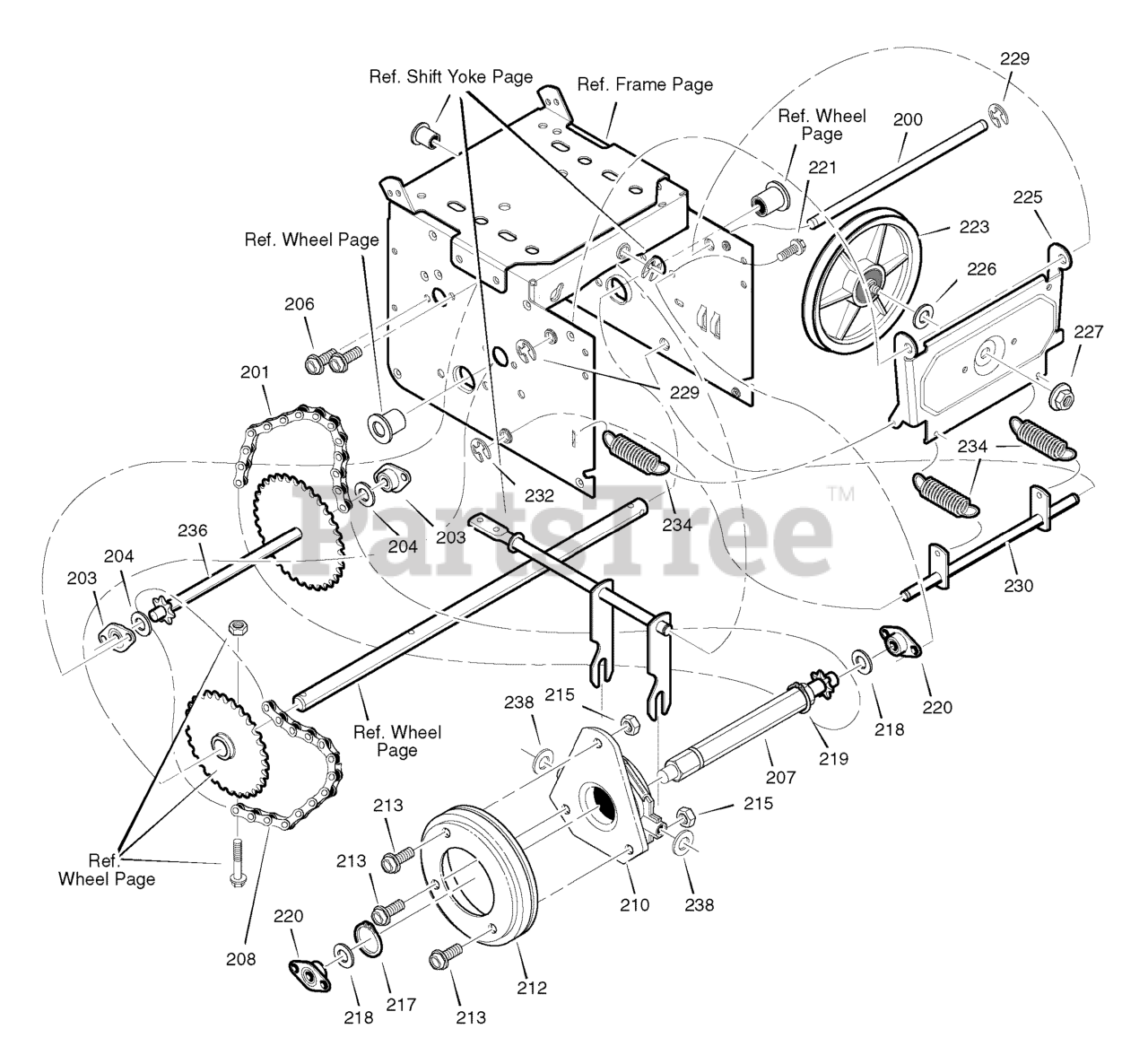

ST 6524 (624650x16A) - Frontier 24" Snow Thrower (2006) Drive Parts Diagram

24" Snow Thrower

Drive Parts Diagram

  • Title

200

Murray MT1501092YZMA

AXLE, L.F. Swing Plate
(Superseded to 1501092YZMA)

$12.99

$

Usually ships in 2-12 days

0

201

Murray MT579851MA

CHAIN, Roller, #420 x 19
(Superseded to 579851MA)

$21.99

$

In Stock, only 1 left!

0

203

Murray MT334163MA

BEARING & RETAINER ASSEMBLY
(Superseded to 334163MA)

$11.99

$

In Stock, Qty 20+

0

204

Murray MT579858MA

WASHER
(Superseded to 579858MA)

$4.49

$

In Stock, only 2 left!

0

206

Murray MT25X020MA

SCREW, Tap 5/16 - 18 x 1/2
(Superseded to 25X020MA)

$4.99

$

In Stock, Qty 6

0

207

Murray MT1501100MA

HEX SHAFT ASSEMBLY
(Superseded to 1501100MA)

$

$

Not available

208

Murray MT579868MA

CHAIN, Roller, #420 x 18
(Superseded to 579868MA)

$20.99

$

In Stock, only 1 left!

0

210

Murray MT337029MA

BEARING, Trunion Clutch R.H.
(Superseded to 1739282YP)

$39.99

$

In Stock, Qty 6

0

212

Murray MT1501435MA

WHEEL, Friction Disc
(Superseded to 1501435MA)

$27.99

$

In Stock, Qty 20+

0

213

Murray MT001X38MA

BOLT
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 20+

0

215

Murray MT303008MA

NUT, Hex Keps, 1/4 - 20
(Superseded to 703914)

$3.49

$

In Stock, Qty 18

0

217

Murray MT579859MA

RING, Retainer
(Superseded to 579859MA)

$4.49

$

Usually ships in 2-12 days

0

218

Murray MT579858MA

WASHER
(Superseded to 579858MA)

$4.49

$

In Stock, only 2 left!

0

219

Murray MT0011X2MA

RING, Snap

$

$

Currently unavailable

220

Murray MT334163MA

BEARING & RETAINER ASSEMBLY
(Superseded to 334163MA)

$11.99

$

In Stock, Qty 20+

0

221

Murray MT25X020MA

SCREW, Tap 5/16 - 18 x 1/2
(Superseded to 25X020MA)

$4.99

$

In Stock, Qty 6

0

223

Murray MT1501115MA

FRICTION PULLEY
(Superseded to 1501115MA)

$

$

Not available

225

Murray MT1501057YZMA

PLATE, L.F. Swinging
(Superseded to 1501057YZMA)

$37.99

$

In Stock, only 1 left!

0

226

Murray MT1501158MA

SPACER, Friction Pulley
(Superseded to 1501158MA)

$4.99

$

In Stock, only 2 left!

0

227

Murray MT15X114MA

NUT, Flange Lock, 3/8 - 24
(Superseded to 15X114MA)

$4.49

$

Usually ships in 2-12 days

0

229

Murray MT11X30MA

RETAINER, Ring
(Superseded to 11X30MA)

$4.49

$

In Stock, only 2 left!

0

230

Murray MT1502105YZMA

SPRING LINK ASSEMBLY, L.F.

$

$

Currently unavailable

232

Murray MT11X30MA

RETAINER, Ring
(Superseded to 11X30MA)

$4.49

$

In Stock, only 2 left!

0

234

Murray MT165X112MA

SPRING, Extension
(Superseded to 1736469YP)

$6.99

$

In Stock, Qty 6

0

236

Murray MT1501090MA

SPROCKET, 33/7
(Superseded to 1501237MA)

$80.99

$

In Stock, only 1 left!

0

238

Murray MT71074MA

WASHER, Flat
(Superseded to 71074MA)

$

$

Not available
