ST 6524 (624650x16B) - Frontier 24" Snow Thrower (2007) Discharge Chute Parts Diagram

24" Snow Thrower

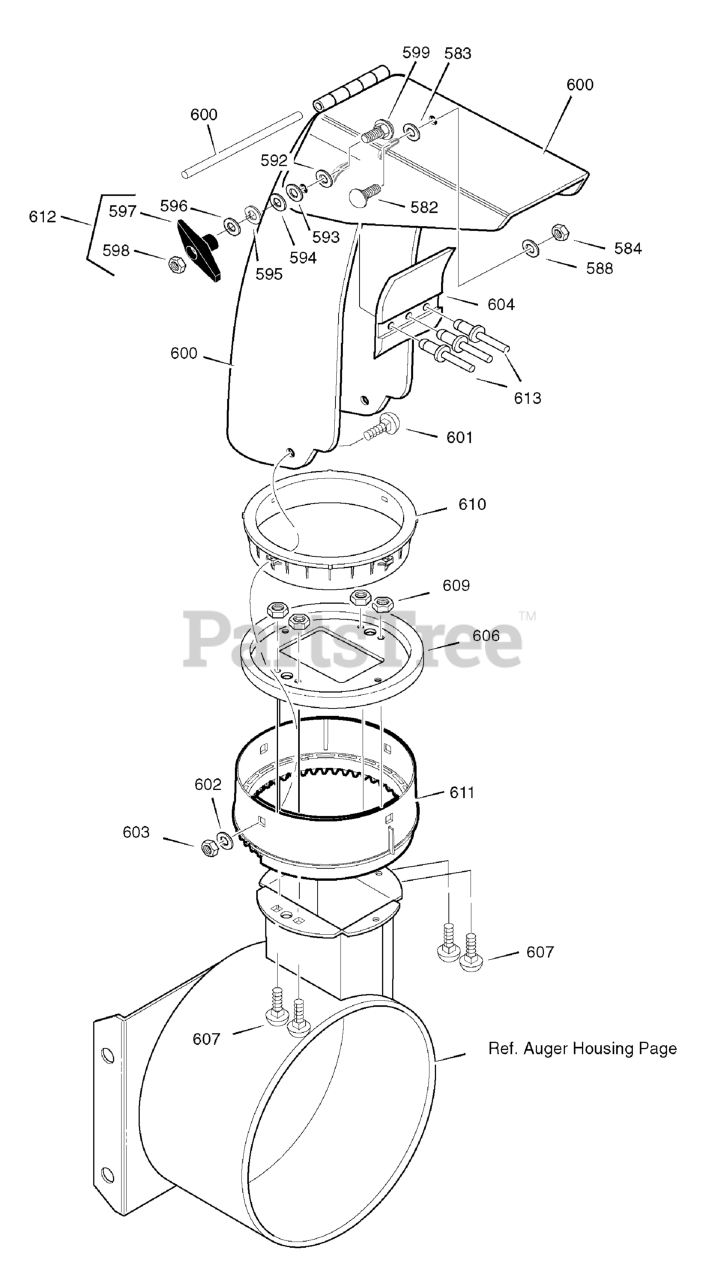

Discharge Chute Parts Diagram

  • Title

582

Murray MT340720MA

BOLT, Carriage, 5/16 - 18 x 3/4
(Superseded to 703225)

$3.99

$

Usually ships in 2-12 days

0

583

Murray MT12021MA

WASHER, Plastic
(Superseded to 12021MA)

$3.99

$

In Stock, only 2 left!

0

584

Murray MT71038MA

NUT, Hex Nylock, 5/16 - 18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

588

Murray MT6711MA

WASHER, Plastic
(Superseded to 6711MA)

$3.99

$

Usually ships in 2-12 days

0

592

Murray MT12021MA

WASHER, Plastic
(Superseded to 12021MA)

$3.99

$

In Stock, only 2 left!

0

593

Murray MT6711MA

WASHER, Plastic
(Superseded to 6711MA)

$3.99

$

Usually ships in 2-12 days

0

594

Murray MT71071MA

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

595

Murray MT71060MA

WASHER, Split
(Superseded to 5025170SM)

$4.49

$

In Stock, Qty 8

0

596

Murray MT71071MA

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

597

Murray MT57171MA

KNOB

$

$

Currently unavailable

598

Murray MT15X144MA

NUT, Hex, 5/16 - 18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 8

0

599

Murray MT002X97MA

BOLT, 5/16 - 18 x 1
(Superseded to 704210)

$4.99

$

In Stock, only 2 left!

0

600

Murray MT1502118E701MA

CHUTE ASSEMBLY

$

$

Currently unavailable

601

Murray MT2X100MA

BOLT, Carriage, 5/16 - 18 x 1
(Superseded to 704217)

$

$

Not available

602

Murray MT71071MA

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

603

Murray MT71038MA

NUT, Hex Nylock, 5/16 - 18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

604

Murray MT760268MA

FLAP, Chute
(Superseded to 760268MA)

$10.99

$

Usually ships in 2-12 days

0

606

Murray MT1501932YZMA

CHUTE COLLAR
(Superseded to 1501932YZMA)

$30.99

$

Usually ships in 2-12 days

0

607

Murray MT02X101MA

SCREW, 1/4 - 20 x 3/4
(Superseded to 703440)

$3.99

$

In Stock, only 4 left!

0

609

Murray MT15X145MA

NUT, Hex Nylock, 1/4 - 20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

610

Murray MT337227MA

RETAINER RING, Inner
(Superseded to 337227MA)

$17.99

$

In Stock, Qty 18

0

611

Murray MT1501282MA

RETAINER RING, Outer
(Superseded to 1501282MA)

$

$

Not available

612

Murray MT1501260MA

KNOB & NUT
(Superseded to 1501260MA)

Note: (Includes Ref. Nos. 597 & 598)

$8.49

$

In Stock, Qty 11

0

613

Murray MT760987MA

RIVENT, Pop
(Superseded to 760987MA)

$3.99

$

In Stock, only 1 left!

0
