ST 661 BS (1696410-01) - Champion 24" Snow Thrower, 7.5hp, Canada (2015) Handles & Controls Group Parts Diagram

24" Snow Thrower, 7.5hp, Canada

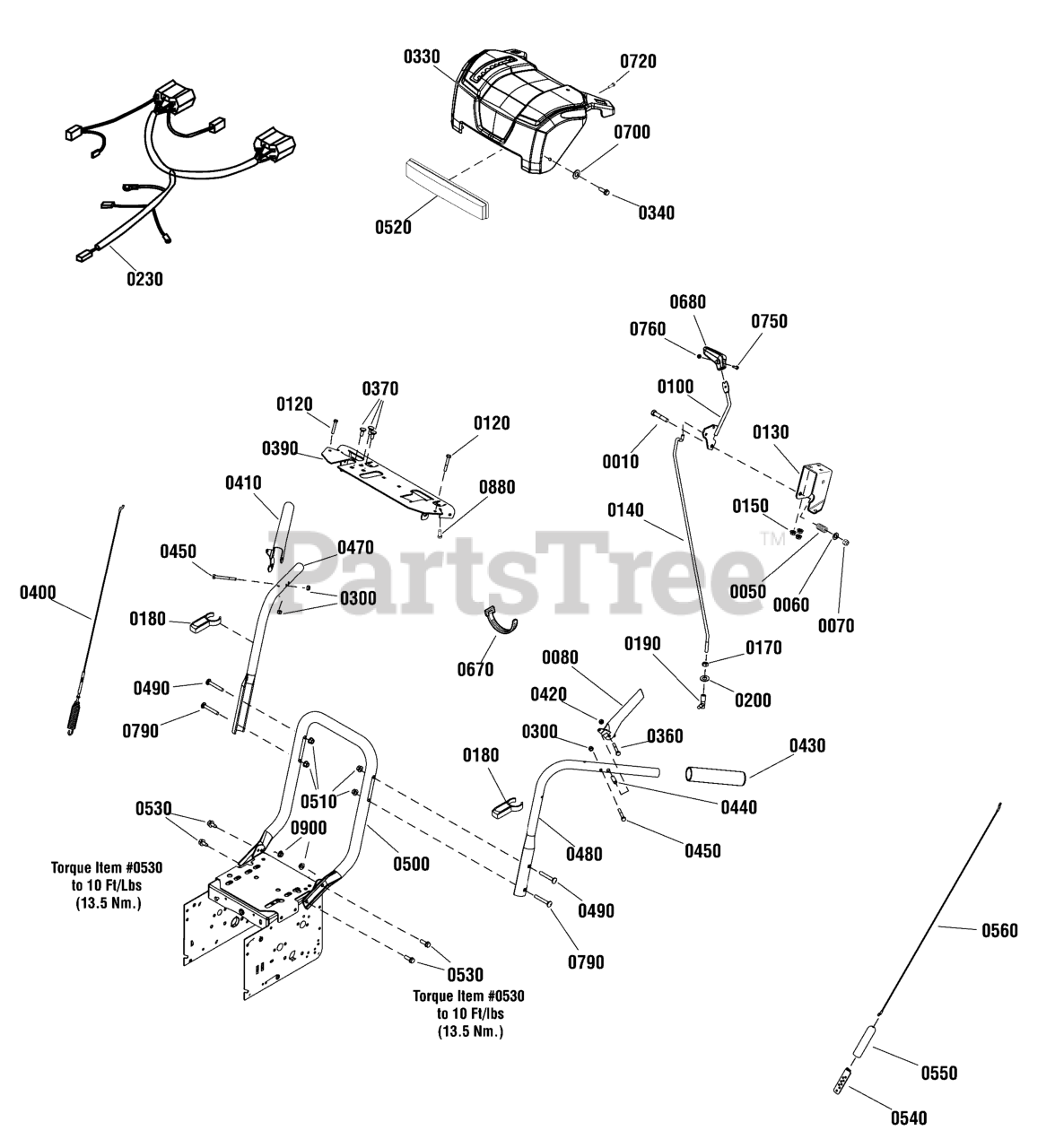

Handles & Controls Group Parts Diagram

  • Title

0010

Murray 703589

CAPSCREW, Hex Head, 3/8-16 x 2, GR5

$4.49

$

In Stock, Qty 20+

0

0050

Murray 50786MA

SPRING, 3/4"

$5.49

$

Usually ships in 2-12 days

0

0060

Murray 71072MA

WASHER, Flat, 13/32

$4.49

$

In Stock, only 3 left!

0

0070

Murray 1919439SM

NUT, Hex Lock, ESNA LIGHT, 3/8-16
(Superseded to 703117)

$3.99

$

In Stock, Qty 20+

0

0080

Murray 1739782AYP

LEVER, Clutch, LH

$

$

Not available

0100

Murray 703047

SPEED LEVER

$59.99

$

Usually ships in 2-12 days

0

0120

Murray 7091003YP

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, GR5
(Superseded to 703588)

$4.49

$

In Stock, only 2 left!

0

0130

Murray 1737684YP

BRACKET, Controls

$17.99

$

Usually ships in 2-12 days

0

0140

Murray 1751543YP

ROD, 25"
(Superseded to 704085)

$24.99

$

Usually ships in 2-12 days

0

0150

Murray 690272MA

NUT, Hex Flange, Whiz Lock, 5/16-18

$

$

Not available

0170

Murray 703331

NUT, Hex, 5/16-24

$4.49

$

In Stock, Qty 17

0

0180

Murray 1739510YP

BRACKET, Lower Mounting

$15.99

$

Usually ships in 2-12 days

0

0190

Murray 703224

BALLJOINT

$23.99

$

In Stock, only 1 left!

0

0200

Murray 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

0300

Murray 1920397SM

NUT, Hex Lock, ESNA LIGHT, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0330

Murray 1757473YP

COVER ASSEMBLY, Panel

$82.99

$

Usually ships in 2-12 days

0

0340

Murray 703062

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8

$4.99

$

In Stock, Qty 20+

0

0360

Murray 1753529YP

BOLT, Shoulder, 1/4 x 1-1/4

$3.99

$

In Stock, only 1 left!

0

0370

Murray 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0390

Murray 1739500AYP

SUPPORT, Dash

$54.99

$

Usually ships in 2-12 days

0

0400

Murray 703221

CABLE, Auger Drive

$26.99

$

In Stock, only 3 left!

0

0410

Murray 1739783AYP

LEVER, Clutch, RH

$29.99

$

In Stock, only 1 left!

0

0420

Murray 1933896SM

NUT, Hex Lock, Nylon Insert, 10-24
(Superseded to 703412)

$4.49

$

In Stock, Qty 5

0

0430

Murray 1726317SM

GRIP

$8.99

$

Usually ships in 2-12 days

0

0440

Murray 703223

SPACER, Stepped

$4.49

$

Usually ships in 2-12 days

0

0450

Murray 703045

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G5

$3.99

$

Usually ships in 2-12 days

0

0470

Murray 1734587ASM

HANDLE, Upper, RH

$54.99

$

Usually ships in 2-12 days

0

0480

Murray 1734586ASM

HANDLE, Upper, LH

$58.99

$

Usually ships in 2-12 days

0

0490

Murray 1960273SM

BOLT, Carriage, Short Neck, 5/16-18 x 2-1/4, GR5
(Superseded to 704421)

$5.49

$

In Stock, Qty 17

0

0500

Murray 1737274AYP

HANDLE, Lower

$113.99

$

Usually ships in 2-12 days

0

0510

Murray 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0520

Murray 1754423YP

INSERT

$7.49

$

Usually ships in 2-12 days

0

0530

Murray 703225

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

0540

Murray 313441MA

BRACKET, Cable Adjusting

$

$

Not available

0550

Murray 308146MA

BOOT, Spring End Cover

$6.99

$

In Stock, Qty 8

0

0560

Murray 1501124MA

CABLE, Front Drive
(Superseded to 762259MA)

$13.99

$

In Stock, only 2 left!

0

0670

Murray 703586

TIE, Self Lock

$4.99

$

Usually ships in 2-12 days

0

0680

Murray 1733192SM

KNOB, Slot Speed

$8.99

$

Usually ships in 2-12 days

0

0700

Murray 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0720

Murray 703944

SCREW, Round Head Phillips, #10-16 x 3/8

$3.49

$

Usually ships in 2-12 days

0

0750

Murray 1960589

SCREW, Round Head Phillips, #10-24 x 3/4
(Superseded to 1960589SM)

$4.49

$

Usually ships in 2-12 days

0

0760

Murray 7091290SM

NUT, Hex Lock, Nylon, #10C
(Superseded to 703412)

$4.49

$

In Stock, Qty 5

0

0790

Murray 703175

BOLT, Carriage, Short Neck, 5/16-18 x 1-3/4, GR5

$3.99

$

Usually ships in 2-12 days

0

0880

Murray 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ
(Superseded to 1960728SM)

$3.99

$

In Stock, only 4 left!

0

0900

Murray 1960684SM

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703222)

$6.49

$

In Stock, only 2 left!

0
