ST 70 (UT-21524) - Homelite Electric String Trimmer Exploded View Parts Diagram

Electric String Trimmer

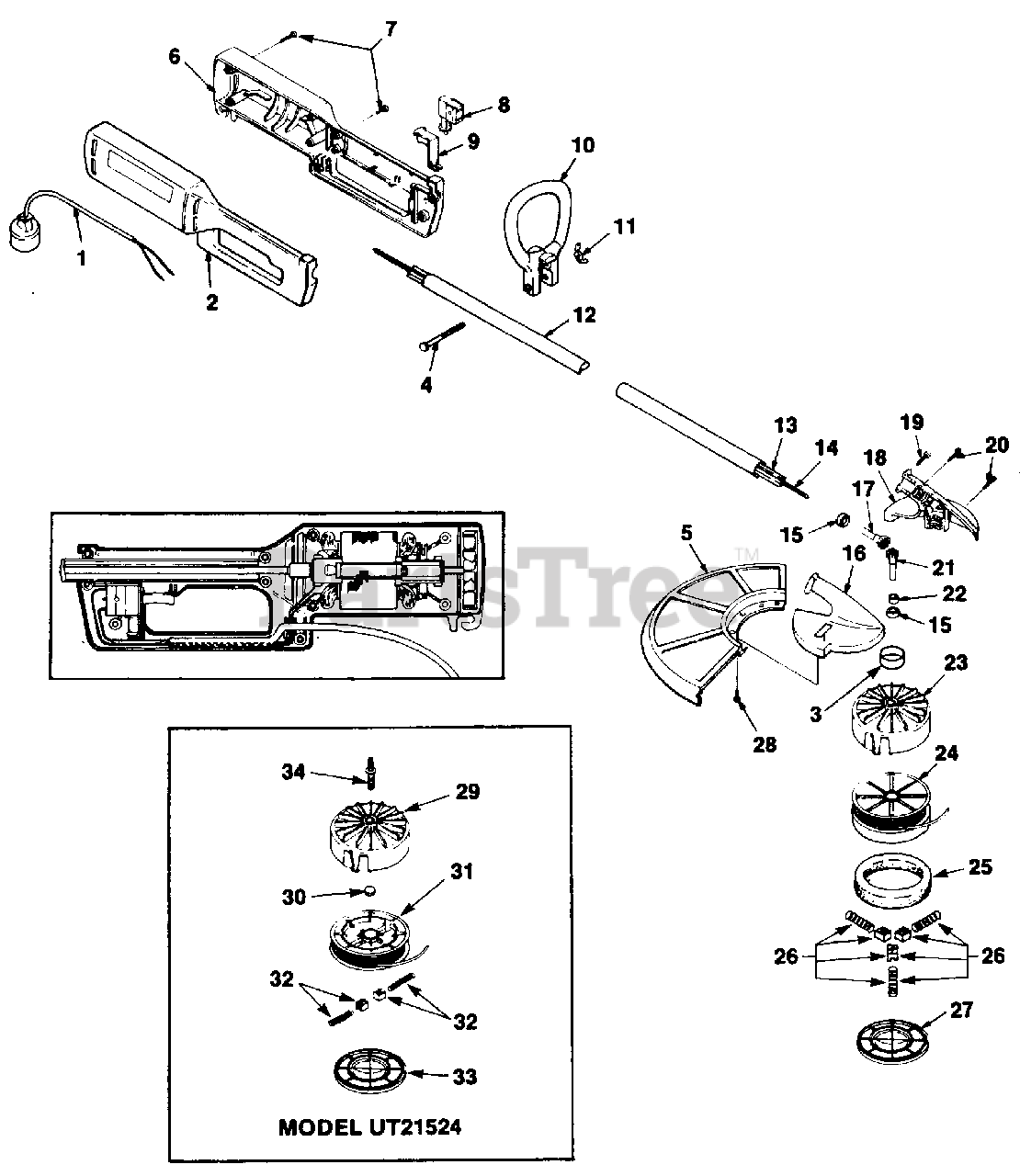

Exploded View Parts Diagram

  • Title

1

Homelite 98720A

CORD SET

$

$

Currently unavailable

2

Homelite 98980

HOUSING- Motor (right)

$

$

Not available

3

Homelite 01393

WASHER- Cupped (UT21524-A)

$

$

Not available

4

Homelite 80295

SCREW- Hex hd. (1/4-20 x 2")

$2.99

$

Usually ships in 3-7 days

0

5

Homelite A00004A

STRING GUARD w/Cut-off blade

$

$

Currently unavailable

6

Homelite 98979

HOUSING- Motor (left)

$

$

Not available

7

Homelite 93243

SCREW- Thd. forming (#10-16 x 9/16")
(Superseded to 95198)

$

$

Not available

8

Homelite 95547A

SWITCH
(Superseded to A00859)

$

$

Currently unavailable

9

Homelite 98983

TRIGGER- Switch

$

$

Not available

10

Homelite 00065

HANDLE- Front

$

$

Not available

11

Homelite 93992

NUT- Wing

$

$

Not available

12

Homelite 98978

TUBE

$

$

Not available

13

Homelite 00002

TUBE- Liner

$

$

Currently unavailable

14

Homelite 00003A

SHAFT- Flexible

$

$

Currently unavailable

15

Homelite 00786

BEARING

$

$

Not available

16

Homelite 98988A

HOUSING- Gear (right)

$

$

Currently unavailable

17

Homelite 98990A

GEAR- Drive

$

$

Currently unavailable

18

Homelite 98987A

HOUSING- Gear (left)

$

$

Not available

19

Homelite 94065

SCREW- Thd. forming (10-16 x 3/4")

$

$

Not available

20

Homelite 82526

SCREW- Thd. forming (6-19 x 3/4")

$

$

Not available

21

Homelite 98989A

GEAR- Driven

$

$

Not available

22

Homelite 00441

BEARING- Flange

$

$

Not available

23

Homelite A00854

STRINGHEAD & EYELET ASSY. (UT21524-A)

$

$

Currently unavailable

24

Homelite A00848

SPOOL & STRING (UT21524-A)

$

$

Currently unavailable

25

Homelite 00844

RING- Foam (UT21524-A)

$

$

Not available

26

Homelite A01791

SLIDE & SPRING KIT (UT21524-A)

$

$

Currently unavailable

27

Homelite 00751

RETAINER- Spool (UT21524-A)

$

$

Not available

28

Homelite 82535

SCREW- Thd. forming (#10-14 x 5/8")
(Superseded to UP03888)

$

$

Not available

29

Homelite A00534

STRINGHEAD EYELET ASSY. (UT21524)

$

$

Currently unavailable

30

Homelite 00511

BUMPER- Rubber (UT21524)
(Superseded to 48506)

$

$

Not available

31

Homelite DA95916B

SPOOL & STRING (UT21524)

$

$

Currently unavailable

32

Homelite A96586

SLIDE & SPRING KIT (UT21524)

$

$

Currently unavailable

33

Homelite 951371

RETAINER- Spool (UT21524)

$

$

Currently unavailable

34

Homelite 00442

CONNECTOR- Drive (UT21524)

$

$

Not available

Homelite 00417B

CONNECTOR- Motor to Cable

$

$

Not available
