ST 724 - Husqvarna 24" Snow Blower (1996-01) ENGINE Parts Diagram

24" Snow Blower

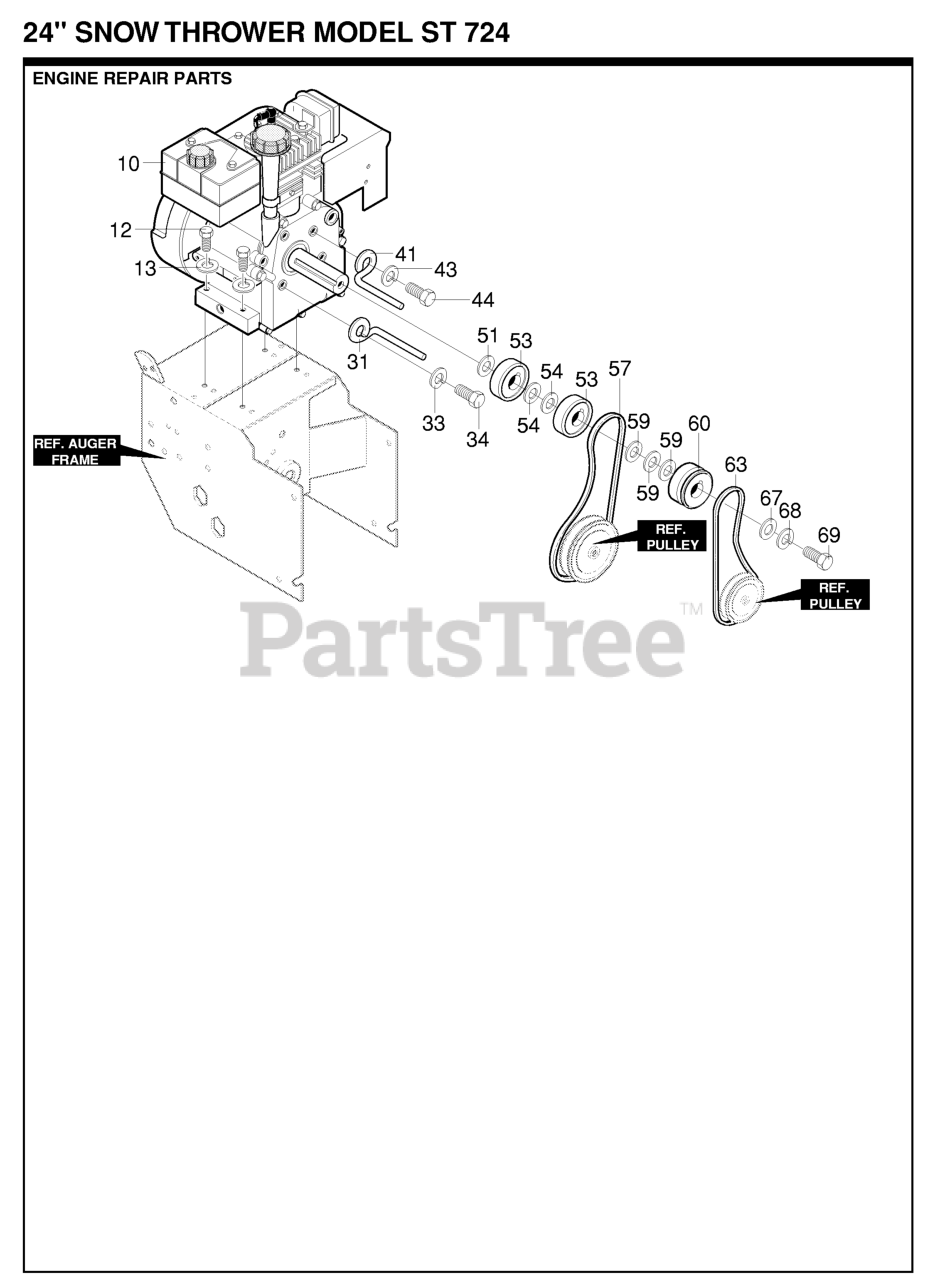

ENGINE Parts Diagram

  • Title

60

Husqvarna 601001593

PULLEY, ENGINE V4L

$

$

Not available

43

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X

$

$

Not available

69

Husqvarna 601000527

SCREW, 3/8-24X1.00 NYLHHC

$

$

Not available

54

Husqvarna 601001435

WASHER

$

$

Not available

67

Husqvarna 601001441

WASHER

$

$

Not available

31

Husqvarna 601001432

BELT GUIDE

$

$

Not available

12

Husqvarna 601000073

SCREW, 5/16-18X .75 HHC

$

$

Not available

68

Husqvarna 601000015

WASHER, REGSPTLK.393X.68X

$

$

Not available

33

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X

$

$

Not available

63

Husqvarna 601001737

BELT, V 4L 36.6LG

$23.99

$

In Stock, only 2 left!

0

57

Husqvarna 601001437

BELT 1733324SM

$19.99

$

In Stock, Qty 8

0

51

Husqvarna 601001434

WASHER

$

$

Not available

10

Husqvarna ~ENGINE

See Engine Manual

$

$

Currently unavailable

44

Husqvarna 601001433

SCREW

$

$

Not available

601 00 17-36

Husqvarna 601001736

OWNER'S MANUAL ENG/FR

$

$

Not available

53

Husqvarna 601001436

PULLEY

$

$

Not available

13

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X

$

$

Not available

34

Husqvarna 601001433

SCREW

$

$

Not available

59

Husqvarna 601001438

WASHER

$

$

Not available

41

Husqvarna 601001432

BELT GUIDE

$

$

Not available
