ST 724 - Husqvarna 24" Snow Blower (1996-01) FRAME Parts Diagram

24" Snow Blower

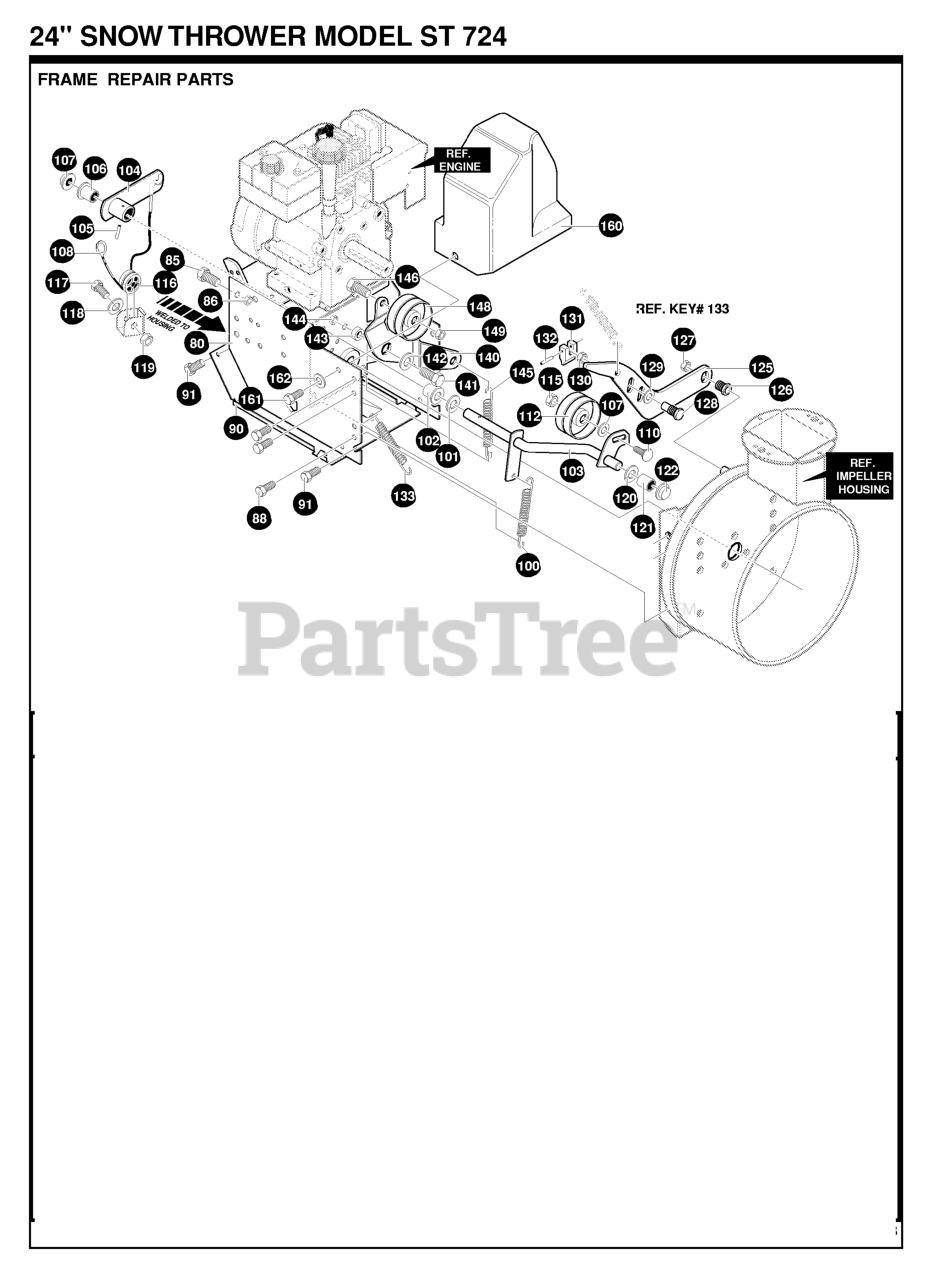

FRAME Parts Diagram

  • Title

117

Husqvarna 601001456

BOLT, SHEAR 703057

$

$

Not available

100

Husqvarna 601001089

SPRING

$

$

Not available

90

Husqvarna 601001739

COVER, BOTTOM WHEEL DRIVE

$

$

Not available

130

Husqvarna 601001603

NUT, 1/2-20 JAM

$

$

Not available

142

Husqvarna 601001462

WASHER

$

$

Not available

116

Husqvarna 601001455

SPOOL CABLE.AUGER CTR 579860MA

$

$

Not available

126

Husqvarna 601001602

BOLT. BRAKE ARM 9/16-18

$

$

Not available

120

Husqvarna 601001446

WASHER

$

$

Not available

149

Husqvarna 601001335

NUT

$

$

Not available

128

Husqvarna 601001604

BOLT-BRAKE ARM ADJ.

$

$

Not available

80

Husqvarna 601001738

FRAME, ASSY ENG. MT.

$

$

Not available

161

Husqvarna 601001445

SCREW

$

$

Not available

143

Husqvarna 601001463

BUSHING

$

$

Not available

127

Husqvarna 601001601

NUT, 9/16-18 HEX

$

$

Not available

144

Husqvarna 601001464

NUT

$

$

Not available

88

Husqvarna 601000519

SCREW, 5/16-18X .50 WAHHT

$

$

Not available

91

Husqvarna 601001445

SCREW

$

$

Not available

112

Husqvarna 601001454

IDLER PULLEY

$

$

Not available

107

Husqvarna 601001452

NUT

$

$

Not available

125

Husqvarna 601001605

BRAKE ARM BRACKET

$

$

Not available

148

Husqvarna 601001454

IDLER PULLEY

$

$

Not available

162

Husqvarna 601000018

WASHER, FLAT .281X .63X.

$

$

Not available

131

Husqvarna 601001459

PAD

$

$

Not available

106

Husqvarna 601001447

FLANGE BEARING

$

$

Not available

101

Husqvarna 601001446

WASHER

$

$

Not available

132

Husqvarna 601001451

PIN

$

$

Not available

140

Husqvarna 601001461

LEVER

$

$

Not available

129

Husqvarna 601001473

WASHER

$

$

Not available

86

Husqvarna 601000823

NUT 5/16-24 HXWDFLLK

$

$

Not available

145

Husqvarna 601001089

SPRING

$

$

Not available

104

Husqvarna 601001449

LEVER, CLUTCH CABLE

$

$

Not available

111

Husqvarna 601000020

WASHER, FLAT .406X .81X.

$

$

Not available

121

Husqvarna 601001599

BEARING, SLEV

$

$

Not available

119

Husqvarna 601000062

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$14.99

$

Usually ships in 3-10 days

0

108

Husqvarna 601001453

CABLE, .205 EYE 6.12 579856

$

$

Not available

146

Husqvarna 601001740

SCREW, 3/8-16 X 1.25

$

$

Not available

110

Husqvarna 601001598

CARR. BOLT, 3/8-16X1.25

$

$

Not available

103

Husqvarna 601001597

ASSY, SHAFT AUG CLUTCH

$

$

Not available

118

Husqvarna 601000018

WASHER, FLAT .281X .63X.

$

$

Not available

122

Husqvarna 601001452

NUT

$

$

Not available

133

Husqvarna 601001460

SPRING

$

$

Not available

160

Husqvarna 601001465

COVER, BELT

$

$

Not available

105

Husqvarna 601001451

PIN

$

$

Not available

102

Husqvarna 601001447

FLANGE BEARING

$

$

Not available

115

Husqvarna 601001335

NUT

$

$

Not available

85

Husqvarna 601001443

SCREW

$

$

Not available

141

Husqvarna 601000073

SCREW, 5/16-18X .75 HHC

$

$

Not available
