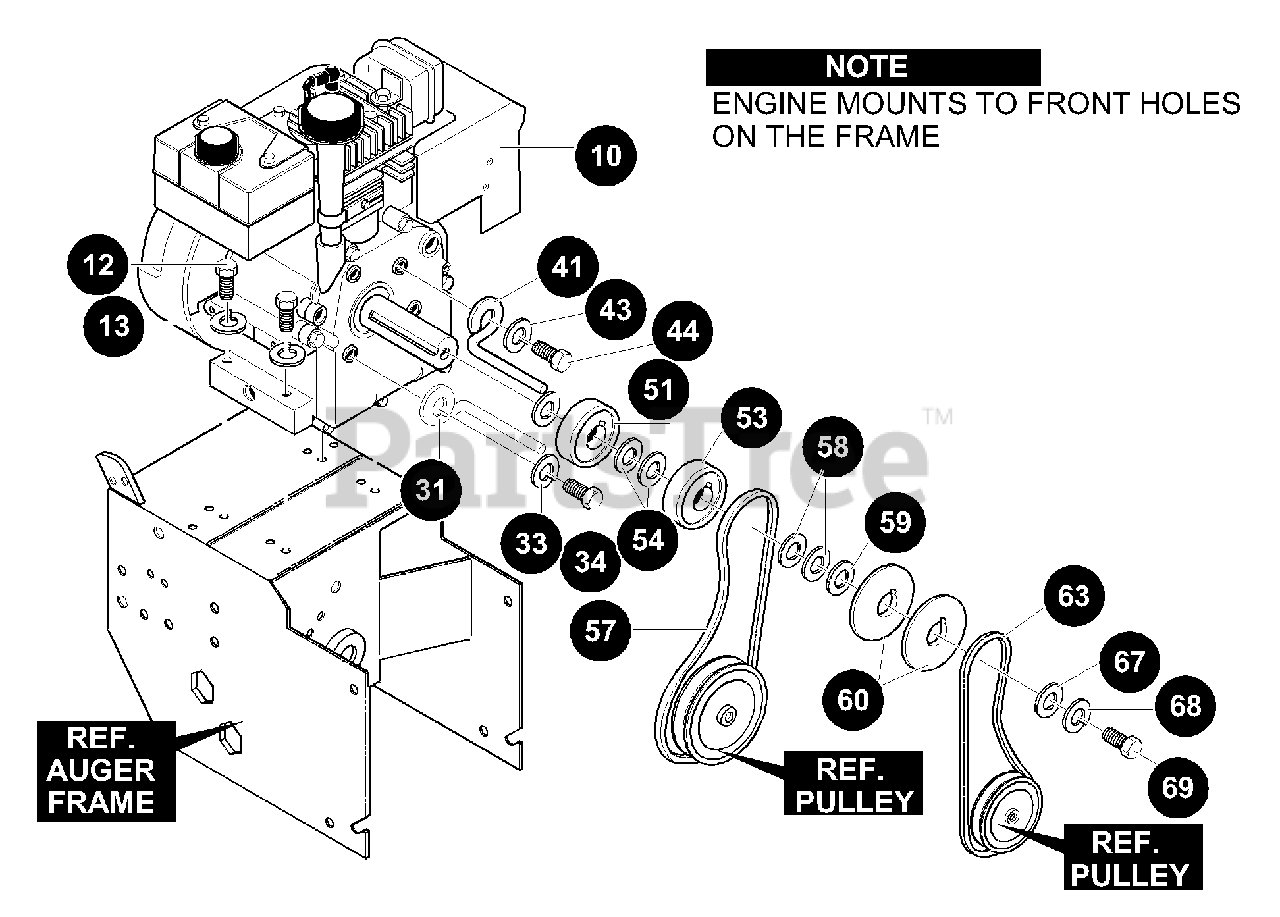

ST 724 - Husqvarna 24" Snow Blower (1997-01) Engine Assembly Parts Diagram

24" Snow Blower

Engine Assembly Parts Diagram

  • Title

10

ENGINE, 7 HP

Note: (See Engine Manual)

$

$

Not available

12

Husqvarna 601000073

SCREW, 5/16-18X.75

$

$

Not available

13

Husqvarna 601000023

WASHER, .328X.60X.09

$

$

Not available

31

Husqvarna 601001432

GUIDE, ROD BELT RH

$

$

Not available

33

Husqvarna 601000023

WASHER, .328X.60X.09

$

$

Not available

34

Husqvarna 601001433

SCREW, 5/16-24X .625HHC

$

$

Not available

41

Husqvarna 601001432

GUIDE, ROD BELT RH

$

$

Not available

43

Husqvarna 601000023

WASHER, .328X.60X.09

$

$

Not available

44

Husqvarna 601001433

SCREW, 5/16-24X .625HHC

$

$

Not available

51

Husqvarna 601001434

WASHER, CRANKSHAFT

$

$

Not available

53

Husqvarna 601001436

PULLEY, HALF

$

$

Not available

54

Husqvarna 601001435

FLATWASHER .752X .91X.02

$

$

Not available

57

Husqvarna 601001437

BELT, V 3L 33.13LG

$19.99

$

In Stock, Qty 20+

0

58

Husqvarna 601001438

FLATWASHER .765X1.12X.06

$

$

Not available

59

Husqvarna 601002020

SPACER, SLEEVE

$

$

Not available

60

Husqvarna 601002021

PULLEY, ENGINE

$

$

Not available

63

Husqvarna 601001737

BELT, V 4L 36.6

$22.99

$

In Stock, only 2 left!

0

67

Husqvarna 601001441

WASHER, FLAT

$

$

Not available

68

Husqvarna 601000015

WASHER, .393X.68X.10

$

$

Not available

69

Husqvarna 601000527

SCREW, 3/8-24X1.00

$

$

Not available

Husqvarna 601002022

OWNER'S MANUAL

$4.99

$

Usually ships in 3-10 days

0
