ST 725 SC (UT-15153) - Homelite String Trimmer Straight Shaft Boom - Handle - Throttle - Stringhead - Grass Deflector Parts Diagram

String Trimmer

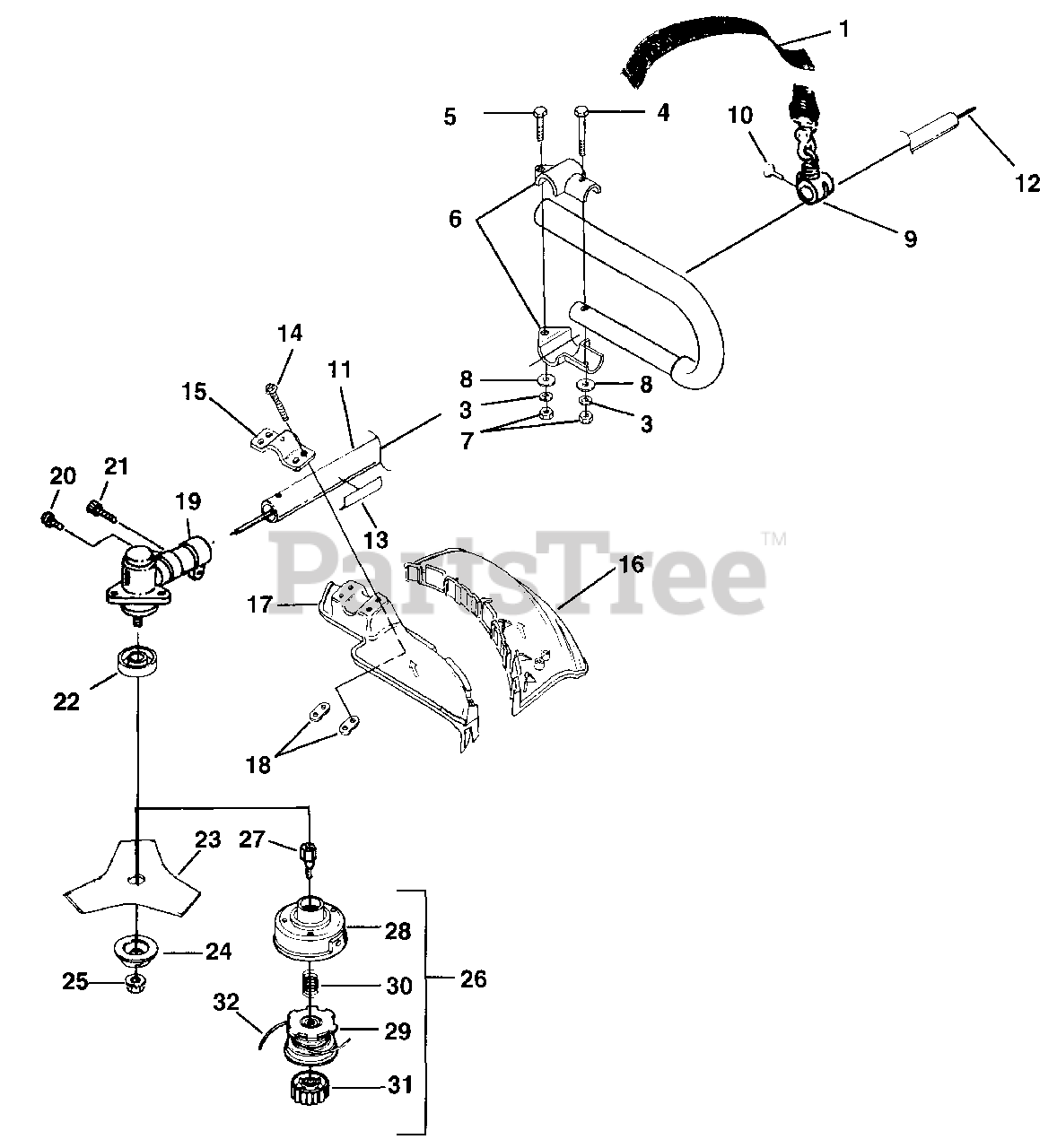

Straight Shaft Boom - Handle - Throttle - Stringhead - Grass Deflector Parts Diagram

  • Title

1

Homelite UP00108

HARNESS w/Connector
(Superseded to 944701)

$6.99

$

Usually ships in 3-7 days

0

?2

Homelite A07159

J-HANDLE BAR KIT
(Superseded to UP06534)

Note: (Incl. items 3 - 8)

$

$

Not available

3

Homelite 83009

Washer-Lock

$4.99

$

Usually ships in 3-7 days

0

4

Homelite 82278

SCREW-Hex Hd. (1/4-20 X 1/2")

Note: (Torque Specs 75-85 In/Lbs [8.5-9.6 Nm])

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 82496

SCREW-Hex Hd. (1/4-20 X 1")

Note: (Torque Specs 75-85 In/Lbs [8.5-9.6 Nm])

$

$

Not available

6

Homelite 00422

CLAMP-Handle Bar
(Superseded to 099075001007)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 81242

NUT-Hex (1/4-20)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 84004

WASHER- Flat
(Superseded to 678013001)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite A94442

BRACKET-Hanger

Note: (Incl. item 10)

$10.99

$

Usually ships in 3-7 days

0

10

Homelite 82260

SCREW-Thumb (10-24 X 1/2")

$

$

Not available

11

Homelite UP03169

HOUSING-Drive Shaft

Note: (Incl. items 12 & 13)

$

$

Not available

12

Homelite 98818

SHAFT-Drive

$

$

Not available

13

Homelite 02985

DECAL-Warning
(Superseded to 983751001)

$

$

Not available

14

Homelite 825551

SCREW-Mach. Truss Hd. (10-24 X 3/4)
(Superseded to UP03899)

$2.99

$

Usually ships in 3-7 days

0

15

Homelite 08619

CLAMP
(Superseded to 984251001)

$6.49

$

Usually ships in 3-7 days

0

16

Homelite A08152

STRING SHIELD
(Superseded to UP04353)

$

$

Not available

17

Homelite 08573

BLADE GUARD

$

$

Not available

18

Homelite A08139

MOUNTING PLATE

$

$

Not available

19

Homelite A03888

GEAR HEAD
(Superseded to UP04120)

$

$

Not available

20

Homelite 88049

SCREW-Sems Hex Hd. (10-24 X 1/2")

Note: (Torque Specs 40-50 In/Lbs [4.5-5.6 Nm])

$

$

Not available

21

Homelite 82586

SCREW-Cap Socket Hd. (1/4-20 x 7/8")

Note: (Torque Specs 55-65 In/Lbs [6.2-7.3 Nm])

$2.99

$

Usually ships in 3-7 days

0

22

Homelite 041681A

WASHER-Flange
(Superseded to 099078001005)

$6.49

$

Usually ships in 3-7 days

0

23

Homelite D98717C

BLADE-Tri-Arc
(Superseded to 638006004)

$12.99

$

Usually ships in 3-7 days

0

24

Homelite 04409

WASHER-Flange

$2.49

$

In Stock, only 1 left!

0

25

Homelite 04277

NUT-Hex (L.H.)
(Superseded to 678018001)

$

$

Not available

26

Homelite DA03174A

STRINGHEAD COMPLETE
(Superseded to UP04650A)

Note: (Incl. items 27 - 31)

$30.99

$

In Stock, only 1 left!

0

27

Homelite 9855141

CONNECTOR-Drive

$

$

Not available

28

Homelite A98231A

HOUSING & EYELET (Dual Line)
(Superseded to 099068001005)

$

$

Not available

29

Homelite DA02598C

SPOOL & STRING (.095" Line)
(Superseded to UP00147)

Note: (Incl. item 30)

$60.99

$

Usually ships in 3-7 days

0

30

Homelite B06713

SPRING-Compression
(Superseded to 06713)

$1.49

$

In Stock, only 2 left!

0

31

Homelite A97910A

RETAINER-Spool (L.H.) (Red)
(Superseded to 308042003)

$1.49

$

Usually ships in 3-7 days

0

32

Homelite D06513

LINE-Replacement (.095" Dia.) (135')

$

$

Not available
