ST 725 (UT-15178) - Homelite String Trimmer Edger Attachment Parts Diagram

String Trimmer

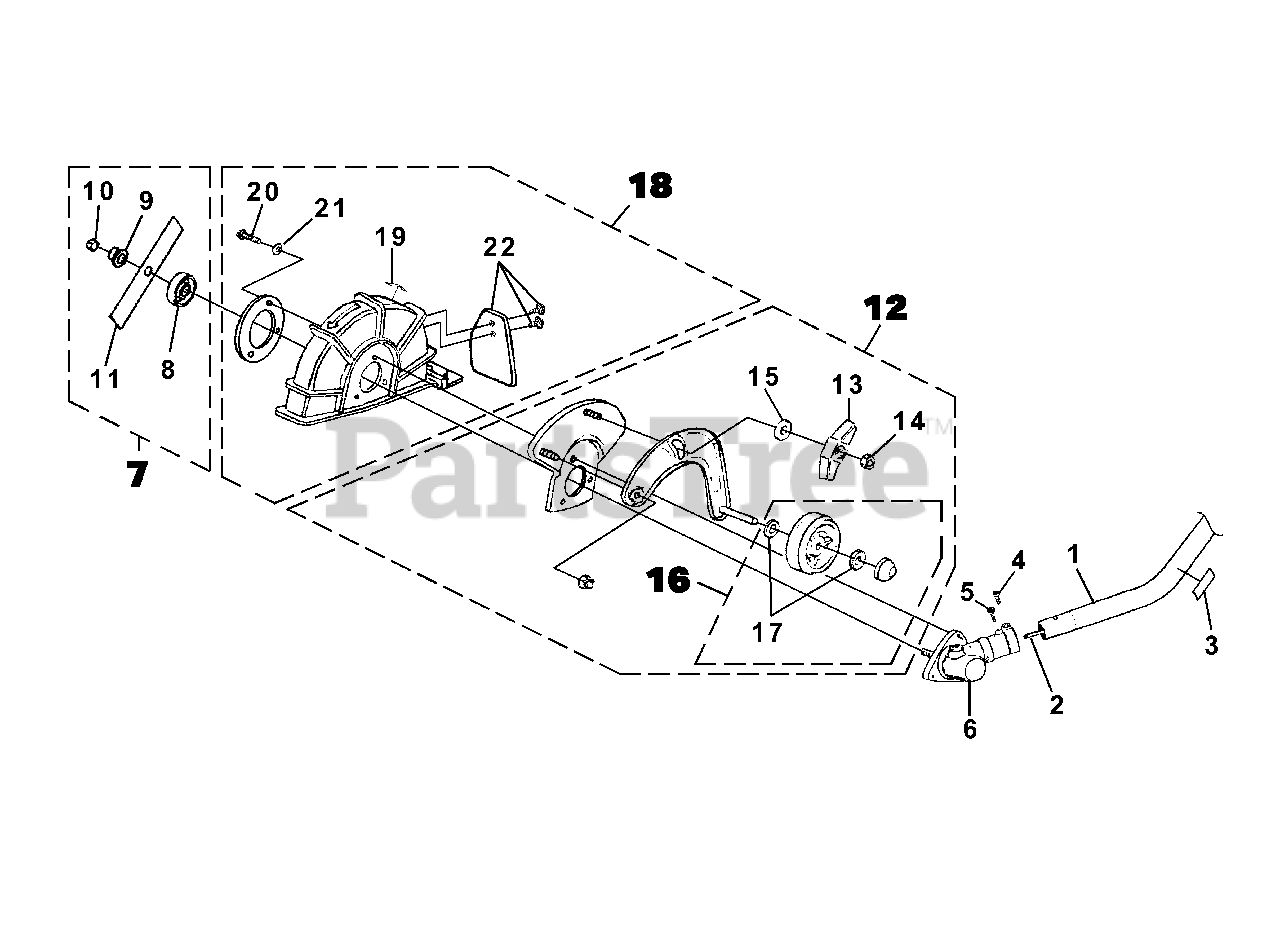

Edger Attachment Parts Diagram

  • Title

1

Homelite UP03921

DRIVESHAFT HOUSING
(Superseded to UP03921A)

Note: Includes items 2-3

$

$

Not available

2

Homelite A07679

SHAFT-Flexible

$14.99

$

Usually ships in 3-7 days

0

3

Homelite UP04116

DECAL-Warning
(Superseded to 983751001)

$

$

Not available

4

Homelite UP05572

SCREW-Cap Socket Hd. (1/4-20 X 7/8")
(Superseded to 82586)

Note: Torque Specs 40-50 In/Lbs; 4.5-5.6 Nm

$5.99

$

Usually ships in 3-7 days

0

5

Homelite UP04254

SCREW-Sems Hex Hd. (10-24 X 1/2")
(Superseded to 88049)

Note: Torque Specs 40-50 In/Lbs; 4.5-5.6 Nm

$

$

Not available

6

Homelite UP04124

GEAR HEAD
(Superseded to PA01364)

$

$

Not available

7

Homelite A06281

BLADE KIT
(Superseded to UP06879)

Note: Includes items 8-11

$28.99

$

Usually ships in 3-7 days

0

8

Homelite UP04126

WASHER-Flanged
(Superseded to 04168A)

$12.99

$

In Stock, only 1 left!

0

9

Homelite UP04129

WASHER-Flanged (Lower)
(Superseded to 04409)

$4.99

$

In Stock, only 2 left!

0

10

Homelite UP04127

NUT-Lock
(Superseded to 04277)

Note: Torque Specs 100-120 In/Lbs; 11.3-13.6 Nm

$

$

Not available

11

Homelite D04359A

BLADE (2" X 9") (Qty.-2)

$

$

Not available

12

Homelite A06280

SUPPORT ARM ASSEMBLY
(Superseded to UP06881)

Note: Includes items 13-17

$75.99

$

Usually ships in 3-7 days

0

13

Homelite UP04132

KNOB-Adjusting
(Superseded to PS06364)

$

$

Not available

14

Homelite UP03397

NUT-Hex

$

$

Not available

15

Homelite UP04252

WASHER-Flat
(Superseded to PS84010)

$

$

Not available

16

Homelite A06279

WHEEL KIT
(Superseded to UP06882)

Note: Includes item 17

$

$

Not available

17

Homelite UP04252

WASHER-Flat
(Superseded to PS84010)

$

$

Not available

18

Homelite A06277A

GUARD KIT
(Superseded to UP06738A)

Note: Includes items 19-22

$

$

Not available

19

Homelite UP04532

DECAL-Warning
(Superseded to 03871A)

$

$

Not available

20

Homelite UP04155

SCREW-Hex Hd. (10-24 X 5/8")
(Superseded to PS01605)

Note: Torque Specs 40-50 In/Lbs; 4.5-5.6 Nm

$

$

Not available

21

Homelite UP03411

WASHER-Lock (#10)

$

$

Currently unavailable

22

Homelite A06296

FLAP KIT
(Superseded to UP06883)

$

$

Not available
