ST 725 (UT-15178) - Homelite String Trimmer Shaft - Spool & String - Grass Deflector Parts Diagram

String Trimmer

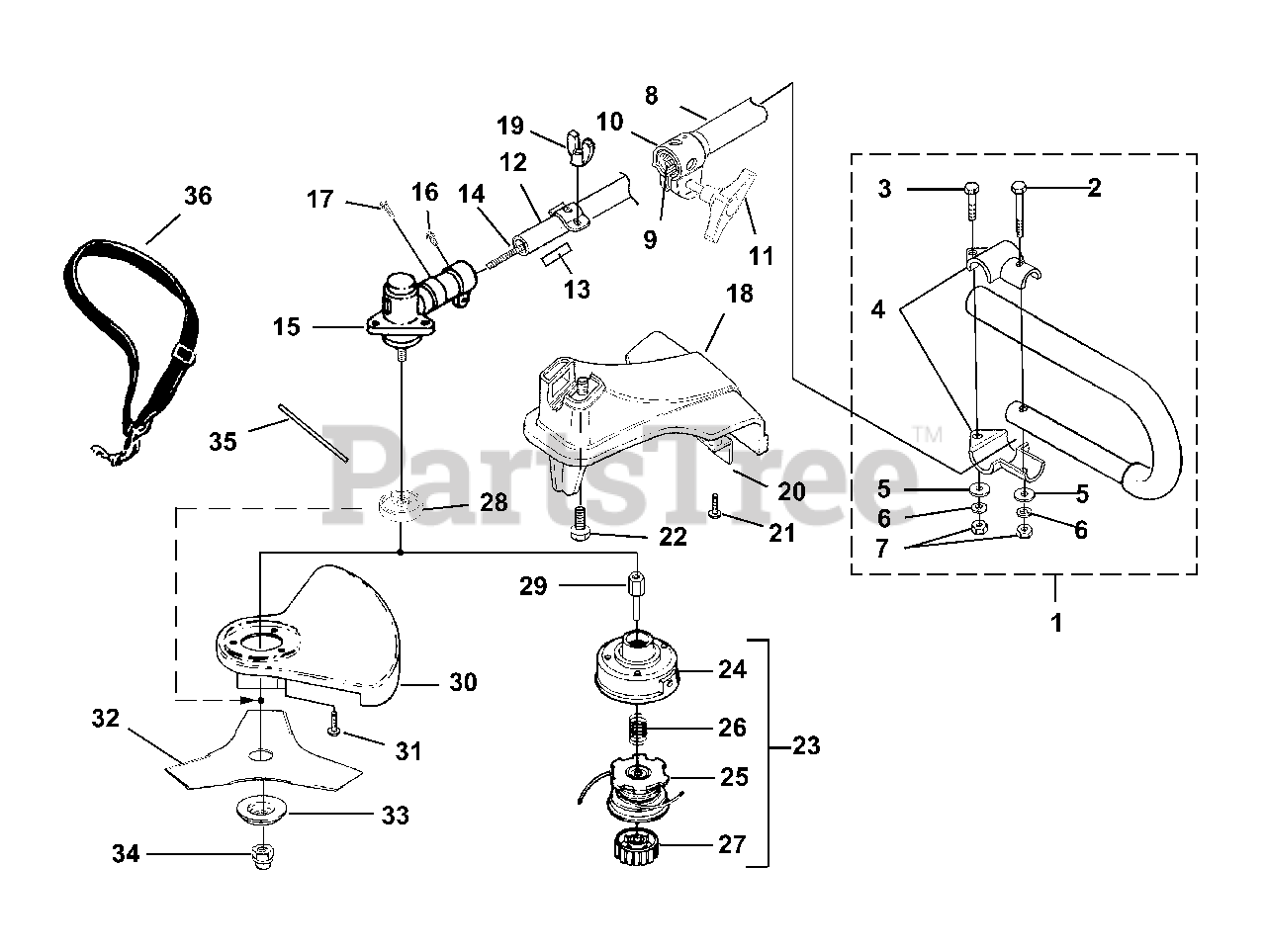

Shaft - Spool & String - Grass Deflector Parts Diagram

  • Title

1

Homelite A07159

HANDLE("J")
(Superseded to UP06534)

Note: Includes items 2-7

$

$

Not available

2

Homelite UP04154

SCREW-Hex Hd. (1/4-20 X 1 1/2")
(Superseded to 82278)

$2.49

$

Usually ships in 3-7 days

0

3

Homelite UP04158

SCREW-Hex Hd. (1/4-20 X 1")
(Superseded to 82496)

$

$

Not available

4

Homelite UP04105

CLAMP-Handle Bar
(Superseded to 00422)

$1.49

$

In Stock, only 1 left!

0

5

Homelite UP04251

WASHER-Flat (1/4")
(Superseded to 84004)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite UP03409

WASHER-Lock (1/4")
(Superseded to 83009)

$9.99

$

Usually ships in 3-7 days

0

7

Homelite UP03399

NUT-Hex (1/4-20)
(Superseded to 81242)

Note: Torque Specs 90-100 In/Lbs; 10.2-11.3 Nm

$2.49

$

Usually ships in 3-7 days

0

8

Homelite UP05136

DRIVESHAFT HOUSING (Upper)
(Superseded to UP05136A)

Note: Includes items 9-11

$92.99

$

Usually ships in 3-7 days

0

9

Homelite A07667

FLEXSHAFT-w/Collar & Liner
(Superseded to A07667A)

$

$

Not available

10

Homelite UP03839

COUPLER KIT
(Superseded to UP03839A)

Note: Includes item 11

$

$

Not available

11

Homelite UP05137

KNOB
(Superseded to PS02071)

$

$

Not available

12

Homelite UP03956

DRIVESHAFT HOUSING (Lower)
(Superseded to UP03956A)

Note: Includes items 13-14

$

$

Not available

13

Homelite UP04116

DECAL-Warning
(Superseded to 983751001)

$

$

Not available

14

Homelite UP04369

SHAFT-Flexible
(Superseded to A07679)

$14.99

$

Usually ships in 3-7 days

0

15

Homelite UP04124

GEAR HEAD
(Superseded to PA01364)

Note: Includes items 16-17

$

$

Not available

16

Homelite 82586

Screw, Cap Hd. (1/4-20 X 7/8")

Note: Torque Specs 15-20 In/Lbs; 1.7-2.3 Nm

$5.99

$

Usually ships in 3-7 days

0

17

Homelite UP04254

Screw-Hex Hd. (10-24 x 1/2")
(Superseded to 88049)

Note: Torque Specs 40-50 In/Lbs; 4.5-5.6 Nm

$

$

Not available

18

Homelite A05086

GRASS DEFLECTOR KIT

Note: Includes items 19-22

$

$

Currently unavailable

19

Homelite UP04893

WING NUT
(Superseded to PS02453)

$2.49

$

In Stock, only 2 left!

0

20

Homelite UP04890

BLADE-Cut-Off

Note: Includes item 21

$

$

Not available

21

Homelite UP03898

SCREW, Thread Form. (10-24 X 3/4")
(Superseded to 82546)

Note: Torque Specs 30-50 In/Lbs; 3.4-5.6 Nm

$2.49

$

Usually ships in 3-7 days

0

22

Homelite UP04892

SCREW-Square Head
(Superseded to PS02435)

$4.49

$

Usually ships in 3-7 days

0

23

Homelite DA03174A

STRINGHEAD-Complete (.095")
(Superseded to UP04650A)

Note: Includes items 24-27

$61.99

$

In Stock, only 1 left!

0

24

Homelite A98231A

HOUSING & EYELET (Dual Line)
(Superseded to 099068001005)

$

$

Not available

25

Homelite UP00147

SPOOL & STRING (.095")
(Superseded to UP04661A)

Note: Includes item 26

$120.99

$

In Stock, only 1 left!

0

26

Homelite 06713

SPRING-Compression

$2.49

$

In Stock, Qty 5

0

27

Homelite UP00104

RETAINER-Spool (L.H. Thread, Red)
(Superseded to UP04666)

$8.49

$

In Stock, only 4 left!

0

28

Homelite UP04126

WASHER-Flanged
(Superseded to 04168A)

$12.99

$

In Stock, only 1 left!

0

29

Homelite 9855141

ADAPTER-Shaft

Note: Torque Specs 100-120 In/Lbs; 11.3-13.6 Nm

$

$

Not available

30

Homelite UP05070

BLADE GUARD
(Superseded to 988472)

Note: Includes item 31

$37.99

$

Usually ships in 3-7 days

0

31

Homelite UP04254

SCREW
(Superseded to 88049)

Note: Torque Specs 15-20 In/Lbs; 1.7-2.3 Nm

$

$

Not available

32

Homelite D98717C

BLADE-Tri-Arc(TM)
(Superseded to 638006004)

$24.99

$

In Stock, only 2 left!

0

33

Homelite UP04129

WASHER-Cupped (Lower)
(Superseded to 04409)

$4.99

$

In Stock, only 1 left!

0

34

Homelite UP04127

NUT-Hex (L.H.)
(Superseded to 04277)

Note: Torque Specs 100-120 In/Lbs; 11.3-13.6 Nm

$

$

Not available

35

Homelite UP04100

TOOL-Holding Pin
(Superseded to 099078001040)

$2.49

$

In Stock, only 3 left!

0

36

Homelite UP00108

HARNESS
(Superseded to 944701)

$13.99

$

In Stock, only 1 left!

0
