ST-8027 - Echo Snow Thrower Auger Assembly Parts Diagram

Snow Thrower

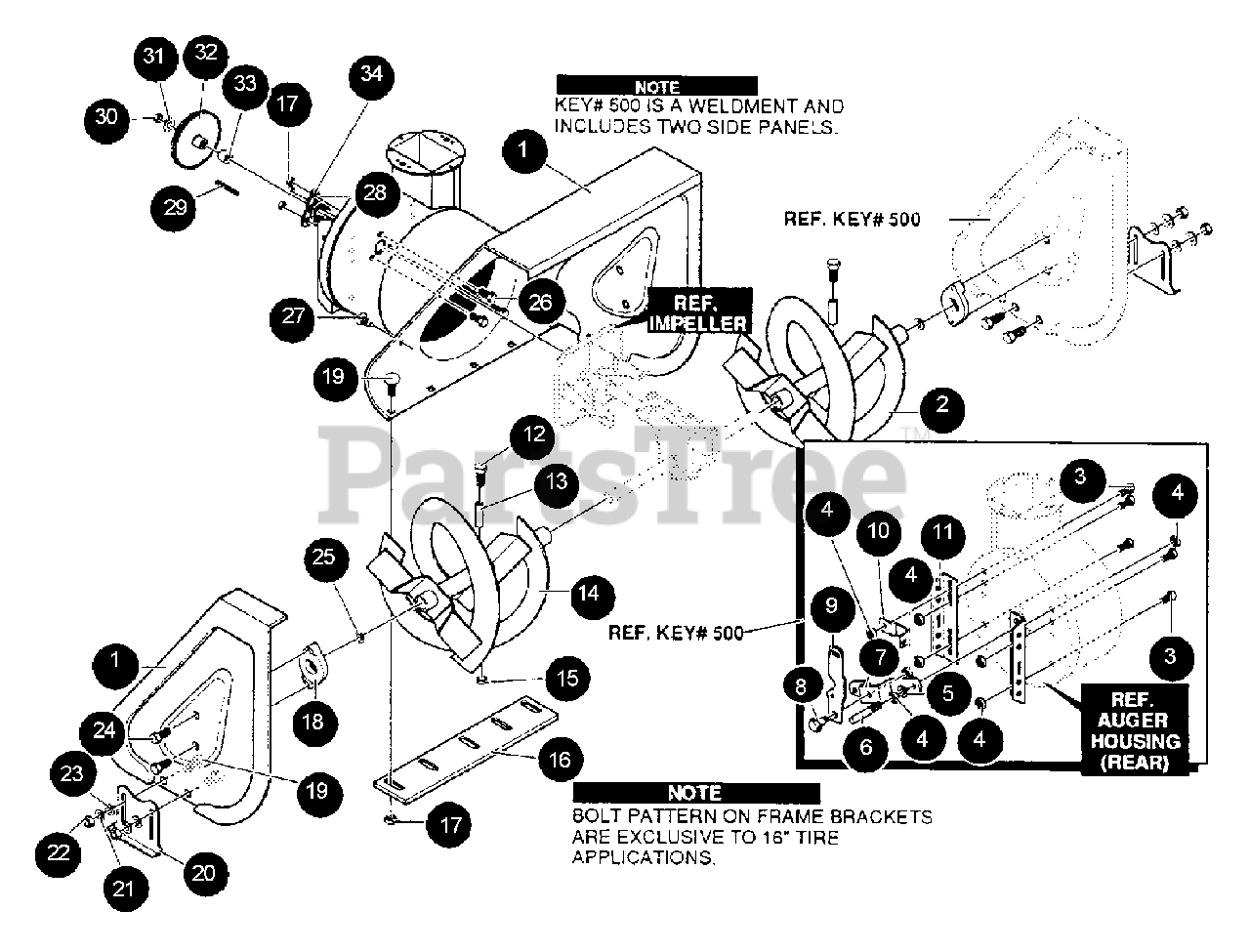

Auger Assembly Parts Diagram

  • Title

1

Echo 14339867

AUGER INTAKE ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo 14339899

AUGER ASSY - RIGHT

$77.99

$

Usually ships in 2-4 days

0

3

Echo 14071003

SCREW - 3/8-16×0.75" -- HEX HEAD CAP
(Superseded to Discontinued)

$

$

Not available

4

Echo 14001499

NUT, 3/8"-16
(Superseded to Discontinued)

$

$

Not available

5

Echo 14120382

WASHER. REGSPTLK 0.393×0.68×0.10
(Superseded to Discontinued)

$

$

Not available

6

Echo 14586224

STUD, BRAKE ARM

$1.49

$

Usually ships in 2-4 days

0

7

Echo 14336657

PLATE, CLUTCH
(Superseded to 14761195)

$

$

Not available

8

Echo 14335587

BOLT - 3/8-16
(Superseded to Discontinued)

$

$

Not available

9

Echo 14760073

BRACKET, IDLER

$4.99

$

Usually ships in 2-4 days

0

10

Echo 14340353

BRACKET, CABLE

$3.49

$

Usually ships in 2-4 days

0

11

Echo 14585247

BRACKET, MOUNTING
(Superseded to Discontinued)

$

$

Not available

12

Echo 14009524

SCREW 1/4"-20

$6.99

$

In Stock, only 2 left!

0

13

Echo 14003943

SPACER
(Superseded to Discontinued)

$

$

Not available

14

Echo 14339899

AUGER ASSY - RIGHT

$77.99

$

Usually ships in 2-4 days

0

15

Echo 14001502

NUT, 1/4"-20

$0.99

$

Usually ships in 2-4 days

0

16

Echo 14583035

BLADE, SCRAPER
(Superseded to Discontinued)

$

$

Not available

17

Echo 14710026

NUT, 5/16"-18

$0.99

$

Usually ships in 2-4 days

0

18

Echo 14313873

BEARING, AUGER SHAFT
(Superseded to Discontinued)

$

$

Not available

19

Echo 14070993

BOLT, CARRIAGE 5/16-18×0.75
(Superseded to Discontinued)

$

$

Not available

20

Echo 14000873

SKID, HEIGHT ADJUST

$14.99

$

Usually ships in 2-4 days

0

21

Echo 14120638

WASHER

$0.99

$

Usually ships in 2-4 days

0

22

Echo 14120376

NUT

$2.49

$

Usually ships in 2-4 days

0

23

Echo 14120393

WASHER

$1.49

$

Usually ships in 2-4 days

0

24

Echo 14035498

SCREW, 5/16-18×0.75 WAHHTAP
(Superseded to Discontinued)

$

$

Not available

25

Echo 14073755

WASHER, FLAT

$1.49

$

Usually ships in 2-4 days

0

26

Echo 14180077

SCREW 5/16"-18×0.75

$1.49

$

Usually ships in 2-4 days

0

27

Echo 14760040

PLUG, CHRISTMAS TREE
(Superseded to Discontinued)

$

$

Not available

28

Echo 14049562

BEARING, BALL

$10.99

$

Usually ships in 2-4 days

0

29

Echo 14071371

KEY, SQUARE 0.18SQX88LG
(Superseded to Discontinued)

$

$

Not available

30

Echo 14274654

LOCKNUT - 1/2-20
(Superseded to Discontinued)

$

$

Not available

31

Echo 14071074

WASHER, FLAT
(Superseded to Discontinued)

$

$

Not available

32

Echo 14583146

PULLEY, V4L

$47.99

$

Usually ships in 2-4 days

0

33

Echo 14334514

SPACER

$0.99

$

Usually ships in 2-4 days

0

34

Echo 14582960

RETAINER, BEARING

$2.99

$

Usually ships in 2-4 days

0
