ST 826 E - Husqvarna 26" Snow Blower (1995-01) Engine/Belts Parts Diagram

26" Snow Blower

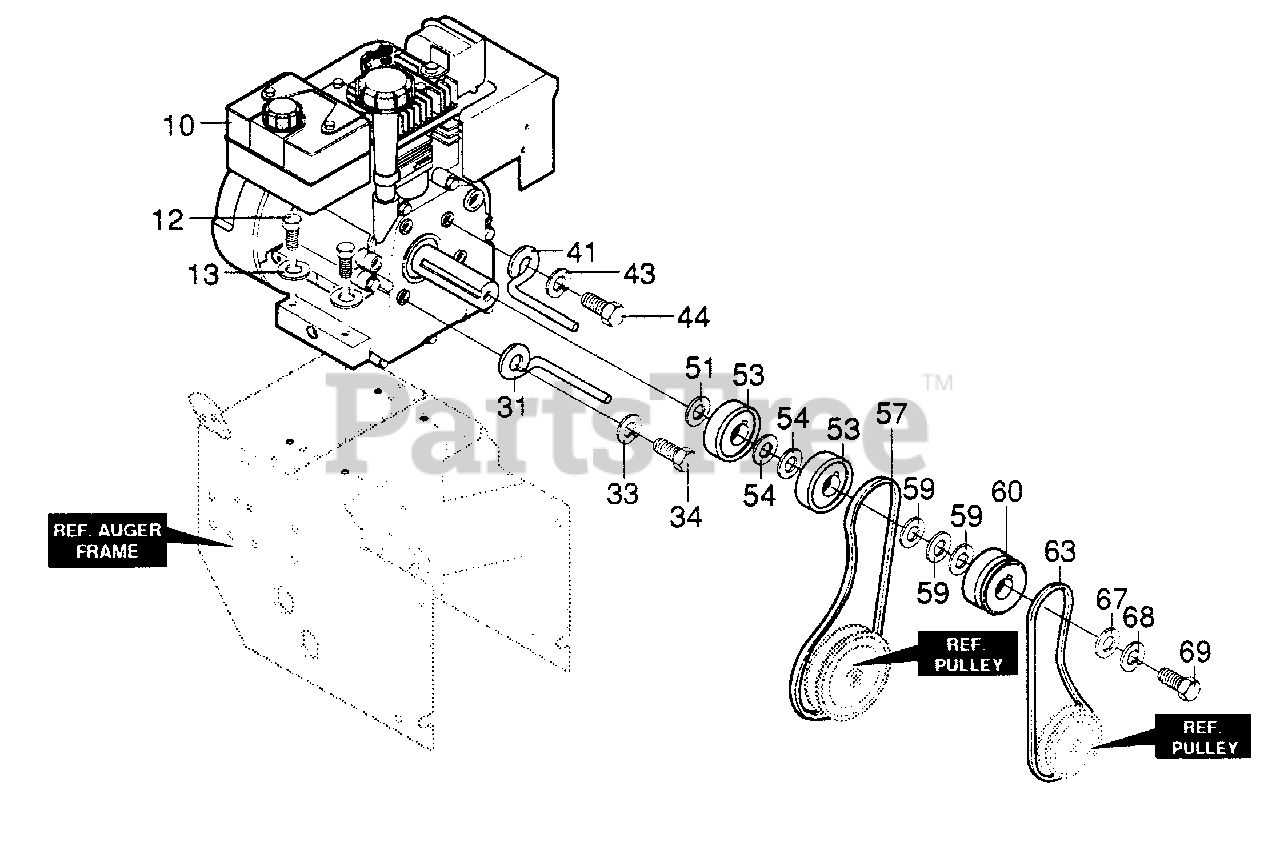

Engine/Belts Parts Diagram

  • Title

10

ENGINE 8 HP TEC

Note: (SEE ENGINE MANUAL)

$

$

Not available

12

Husqvarna 601001592

SCREW, 5/16-180.50

$

$

Not available

13

Husqvarna 601000023

WASHER, HVSPTLK.328x.60x.09

$

$

Not available

31

Husqvarna 601001432

GUIDE, ROD BELT, RH

$

$

Not available

33

Husqvarna 601000023

WASHER, HVSPTLK.328x.60x.09

$

$

Not available

34

Husqvarna 601001433

SCREW, 5/16-24x.625 HHC

$

$

Not available

41

Husqvarna 601001432

GUIDE, ROD BELT RH

$

$

Not available

43

Husqvarna 601000023

WASHER, HVSPTLK.328x.60x.09

$

$

Not available

44

Husqvarna 601001433

SCREW, 5/16-24x.625 HHC

$

$

Not available

51

Husqvarna 601001434

WASHER, CRANKSHAFT

$

$

Not available

53

Husqvarna 601001436

PULLEY, HALF V3L- 2.00x.752 ID

$

$

Not available

54

Husqvarna 601001435

WASHER, FLAT .752x.91x.02

$

$

Not available

57

Husqvarna 601001437

BELT, V 3L 33.13 LONG

$19.99

$

Usually ships in 3-10 days

0

59

Husqvarna 601001438

FLATWASHER,.765x1.12x.02

$

$

Not available

60

Husqvarna 601001593

PULLEY, ENGINE V4L

$

$

Not available

63

Husqvarna 601001594

BELT, V 4L 38.2 LG AUG DRIVE

$23.99

$

In Stock, only 3 left!

0

67

Husqvarna 601001441

FLATWASHER .375x1.25x.104

$

$

Not available

68

Husqvarna 601000015

WASHER, REGSPTLK.393x.68x.10

$

$

Not available

69

Husqvarna 601000527

SCREW, 3/8-240.00 NYL

$

$

Not available
