ST 8526 (1694997) - Frontier 26" Snow Thrower (2006) Handles and Controls Group Parts Diagram

26" Snow Thrower

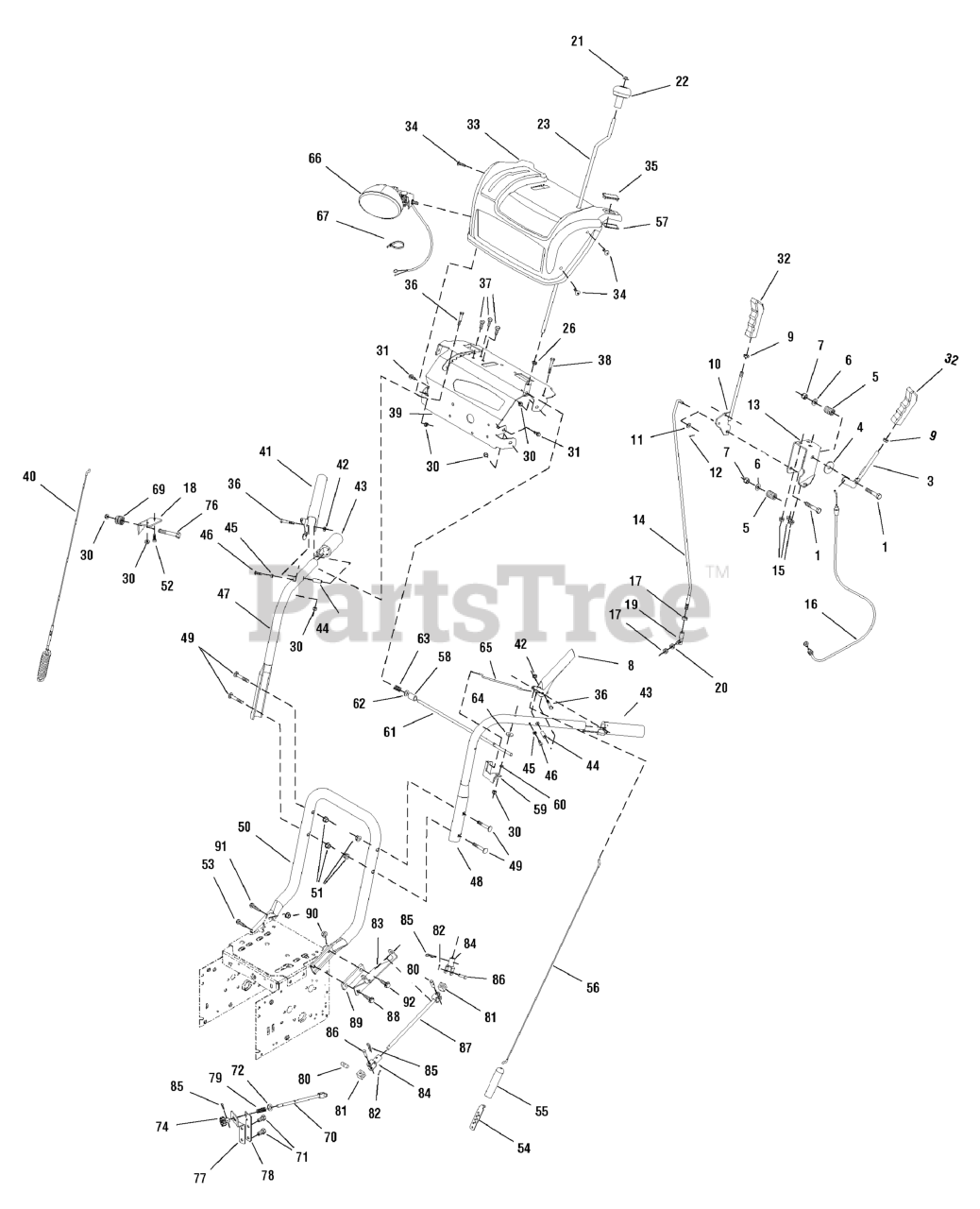

Handles and Controls Group Parts Diagram

  • Title

1

Murray MT1923701

CAPSCREW, Hex Head 3/8-16 x 2 G5

$

$

Currently unavailable

3

Murray MT1732427

ROD, Chute

$

$

Currently unavailable

4

Murray MT1924356

WASHER, 3/8

$

$

Currently unavailable

5

Murray MT50786

SPRING

$

$

Currently unavailable

6

Murray MT1918266

WASHER, 3/8

$

$

Currently unavailable

7

Murray MT1919439

NUT, Hex Lock ESNA Light, 3/8-16

$

$

Currently unavailable

8

Murray MT1722667

GRIP, Clutch L.H.

$

$

Currently unavailable

9

Murray MT1917421

NUT, Hex Jam, 3/8-16

$

$

Currently unavailable

10

Murray MT1733614

ROD & BRACKET ASSEMBLY, Speed

$

$

Currently unavailable

11

Murray MT1921319

WASHER, 1/4

$

$

Currently unavailable

12

Murray MT1918447

COTTER PIN

$

$

Currently unavailable

13

Murray MT1733045A

BRACKET, Control

$

$

Currently unavailable

14

Murray MT1732531

ROD

$

$

Currently unavailable

15

Murray MT1931277

NUT, Hex Flange Whiz Lock, 5/16-18

$

$

Currently unavailable

16

Murray MT1732971

CABLE, Deflector Control

$

$

Currently unavailable

17

Murray MT2820263

NUT, Hex 5/16-24

$

$

Currently unavailable

18

Murray MT1733481A

BRACKET, Spout Cable

$

$

Currently unavailable

19

Murray MT50782

BALLJOINT, Steel

$

$

Currently unavailable

20

Murray MT1917356

LOCKWASHER, Spring 5/16

$

$

Currently unavailable

21

Murray MT1960093

NUT, Push Pal Stud Capped 3/8

$

$

Currently unavailable

22

Murray MT1714084

KNOB, Spinner

$

$

Currently unavailable

23

Murray MT1715658

ROD, Chute Control

$

$

Currently unavailable

26

Murray MT1667588

BUSHING

$

$

Currently unavailable

30

Murray MT1920397

NUT, Hex Lock ESNA Light 1/4-20

$

$

Currently unavailable

31

Murray MT1927429

SCREW, Hex Washer Head Taptite, 1/4-20 x 5/8

$

$

Currently unavailable

32

Murray MT306689

GRIP, Lever

$

$

Currently unavailable

33

Murray MT1732416F

COVER, Panel

$

$

Currently unavailable

34

Murray MT1960715

SCREW, Truss Head Torx Drive 1/4-20 x 3/4

$

$

Currently unavailable

35

Murray MT1709188

PLUG, Hole

$

$

Currently unavailable

36

Murray MT1922837

CAPSCREW, Hex Head, 1/4-20 x 1-1/2 G5

$

$

Currently unavailable

37

Murray MT1931333

CARRIAGE BOLT, 5/16-18 x 3/4 G5

$

$

Currently unavailable

38

Murray MT1921962

CAPSCREW, Hex Head, 1/4-20 x 1-3/4 G5

$

$

Currently unavailable

39

Murray MT1732064A

SUPPORT, Dash Panel Cover

$

$

Currently unavailable

40

Murray MT1732471

CABLE & SPRING ASSEMBLY, Auger Drive R.H.

$

$

Currently unavailable

41

Murray MT1722638

GRIP, Clutch R.H.

$

$

Currently unavailable

42

Murray MT1923358

NUT, Hex Centerlock 1/4-20

$

$

Currently unavailable

43

Murray MT1726317

GRIP

$

$

Currently unavailable

44

Murray MT1715655

SPACER, Handle

$

$

Currently unavailable

45

Murray MT1715654

SPACER

$

$

Currently unavailable

46

Murray MT1960671

SCREW, Pan Head Torx, 1/4-20 x 3/4 Thread Cut

$

$

Currently unavailable

47

Murray MT1732783A

HANDLE, Upper R.H.

$

$

Currently unavailable

48

Murray MT1732782A

HANDLE, Upper

$

$

Currently unavailable

49

Murray MT1960723

CARRIAGE BOLT, 5/16-18 x 2-1/4 G5

$

$

Currently unavailable

50

Murray MT1732781A

HANDLE, Lower

$

$

Currently unavailable

51

Murray MT1960686

NUT, Hex Flange ESNA, 5/16-18

$

$

Currently unavailable

52

Murray MT1725702

SCREW, Pan Head Torx

$

$

Currently unavailable

53

Murray MT1664847

SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4

$

$

Currently unavailable

54

Murray MT313441

BRACKET, Cable

$

$

Currently unavailable

55

Murray MT308146

BOOT, Control Spring

$

$

Currently unavailable

56

Murray MT1502113

CABLE, Front Drive

$

$

Currently unavailable

57

Murray MT1733730

SHIM, Hole Plug

$

$

Currently unavailable

58

Murray MT1679166

SPACER

$

$

Currently unavailable

59

Murray MT1733505A

BRACKET, Free Hand

$

$

Currently unavailable

60

Murray MT1733095

SPACER, Powdered Metal

$

$

Currently unavailable

61

Murray MT1733509

ROD & SPRING ASSEMBLY, w/Pin

$

$

Currently unavailable

62

Murray MT1960027

WASHER, 1/2

$

$

Currently unavailable

63

Murray MT2108360

SPRING, Compression

$

$

Currently unavailable

64

Murray MT1960353

WASHER, 1/4

$

$

Currently unavailable

65

Murray MT1722630

ROD, Hold Down

$

$

Currently unavailable

66

Murray MT1732322

HEADLIGHT ASSEMBLY, Oval Clear

Note: (Used On ST9528)

$

$

Currently unavailable

--

BULB, 881-12V 27 Watt Halogen *

$

$

Not available

67

Murray MT2825094

TIE, Self Locking

$

$

Currently unavailable

69

Murray MT579860

SPOOL CABLE, Auger Control

$

$

Currently unavailable

70

Murray MT1732362

ROD & YOKE ASSEMBLY, Chute

$

$

Currently unavailable

71

Murray MT1921965

CAPSCREW, Hex Head 3/8-16 x 3/4 G5

$

$

Currently unavailable

72

Murray MT1918265

WASHER, 5/16

$

$

Currently unavailable

74

Murray MT1501067

GEAR, 9 Tooth

$

$

Currently unavailable

76

Murray MT1931320

CARRIAGE BOLT, 1/4-20 x 1-1/4 G5

$

$

Currently unavailable

77

Murray MT1732283F

BRACKET, Chute Gear

$

$

Currently unavailable

78

Murray MT1733422A

BRACKET, Spring

$

$

Currently unavailable

79

Murray MT164X37

SPRING, Compression

$

$

Currently unavailable

80

Murray MT578060

PIN, Universal Joint

$

$

Currently unavailable

81

Murray MT578063

BLOCK, Universal Pivot

$

$

Currently unavailable

82

Murray MT579493

PIN, Cotter

$

$

Currently unavailable

83

Murray MT1733737A

SUPPORT, Chute Rod

$

$

Currently unavailable

84

Murray MT1733611

YOKE & TUBE ASSEMBLY, Chute

$

$

Currently unavailable

85

Murray MT1501293

PIN, Hair Chute Gear

$

$

Currently unavailable

86

Murray MT578309

PIN, Clevis

$

$

Currently unavailable

87

Murray MT1733182

ROD & YOKE ASSEMBLY, Chute

$

$

Currently unavailable

88

Murray MT1960373

SCREW, Hex Washer Head Taptite 5/16-18 x 1

$

$

Currently unavailable

89

Murray MT1733379A

SPACER, Block

$

$

Currently unavailable

90

Murray MT1935048

NUT, Hex Flange Two-Way Lock, 5/16-18

$

$

Currently unavailable

91

Murray MT1921333

CAPSCREW, Hex Head, 5/16-18 x 1 G5

$

$

Currently unavailable

92

Murray MT1921977

CAPSCREW, Hex Head, 5/16-18 x 1-1/4 G5

$

$

Currently unavailable
