ST 855 BS (1696544-00) - Champion 22" Snow Thrower, 11.5hp (2015) Auger Group Parts Diagram

22" Snow Thrower, 11.5hp

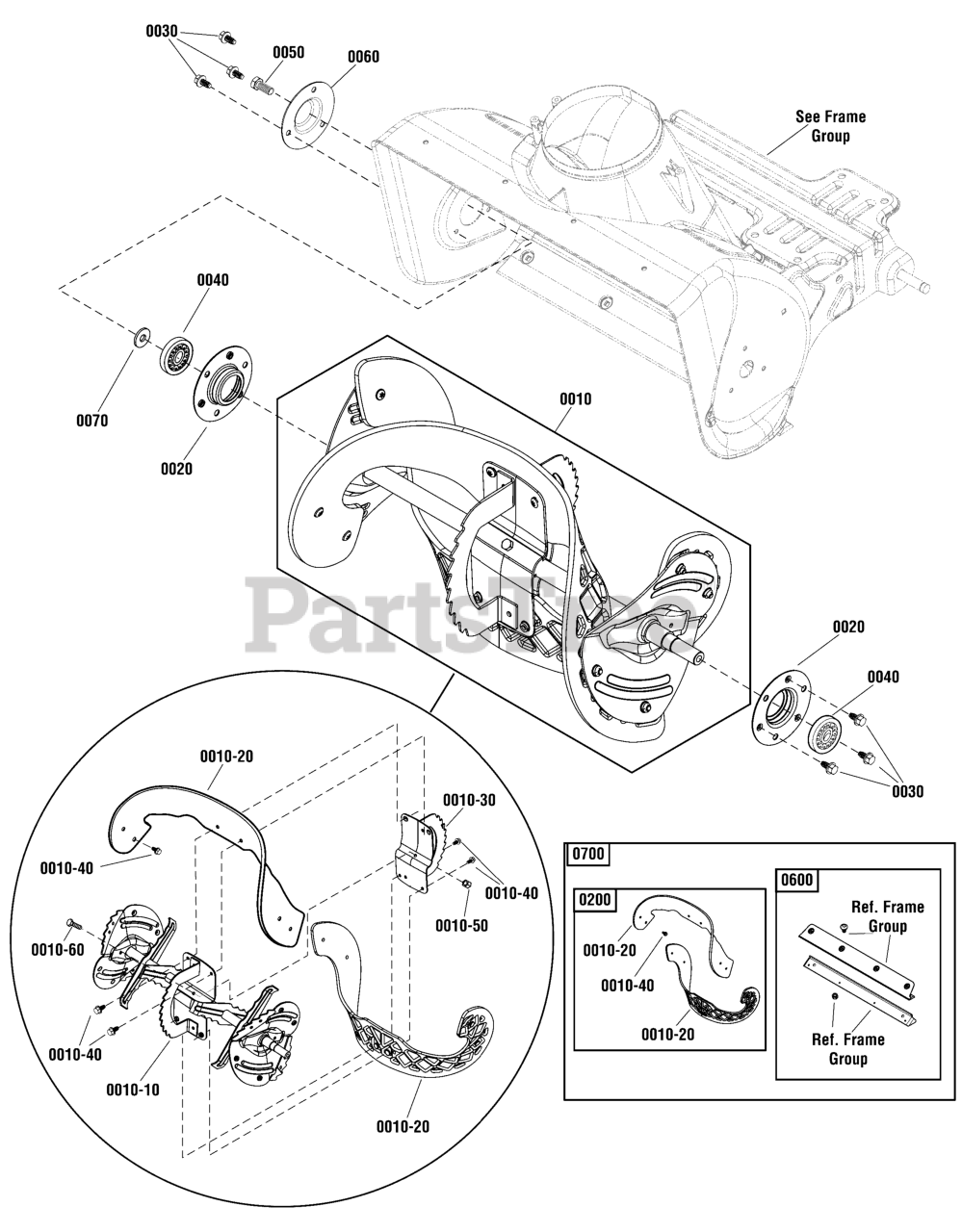

Auger Group Parts Diagram

  • Title
0010

Murray 1687814

AUGER ASSEMBLY, Complete

Note: (Incl. Ref. Nos. 0010-10, 0010-20, 0010-30, 0010-40, 0010-50 & 0010-60)

$170.99

$

In Stock, only 2 left!

0

0010-10

* AUGER SHAFT ASSEMBLY

$

$

Not available

0010-20

** FLIGHT, Auger

Note: (Included with Ref. No. 0200)

$

$

Not available

0010-30

* PLATE, Auger, Center

$

$

Not available

0010-40

Murray 7091246YP

SCREW, 1/4-20 x 3/4, Pan Head Torx
(Superseded to 770003)

Note: (Included with Ref. No. 0200)

$3.99

$

In Stock, only 4 left!

0

0010-50

Murray 7091603SM

NUT, Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0010-60

Murray 703234

CAPSCREW, Hex Head, 1/4-20 X 1 1/2, G5

$4.49

$

In Stock, only 3 left!

0

0020

Murray 1739228YP

RETAINER, Bearing

$6.99

$

Usually ships in 2-12 days

0

0030

Murray 704130

SCREW, Hex Washer Head, Trilob, 1/4-20 x 1/2

$3.99

$

In Stock, Qty 20+

0

0040

Murray 1705897SM

BEARING, Ball, 11/16 x 1-9/16 x 15/32

$8.49

$

In Stock, Qty 20+

0

0050

Murray 704287

CAPSCREW, Hex Head, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 19

0

0060

Murray 1739229AYP

CAP, BEARING

$7.99

$

Usually ships in 2-12 days

0

0070

Murray 703118

WASHER, Flat, 7/8 x 21/64

$3.49

$

In Stock, only 2 left!

0

0200

Murray 1687804

KIT, AUGER FLIGHT

Note: (Incl. Ref. Nos. 0010-20 & 0010-40)

$107.99

$

In Stock, only 1 left!

0

0600

Murray 1687805

KIT, Scraper Bar

Note: (Reference Frame group)

$97.99

$

In Stock, only 1 left!

0

0700

Murray 1687806

KIT, Scraper Bar & Flight

Note: (Incl. Ref. Nos. 0200 & 0600)

$121.99

$

In Stock, Qty 7

0
