ST 927 E - Husqvarna 27" Snow Blower (1996-01) Auger Housing Parts Diagram

27" Snow Blower

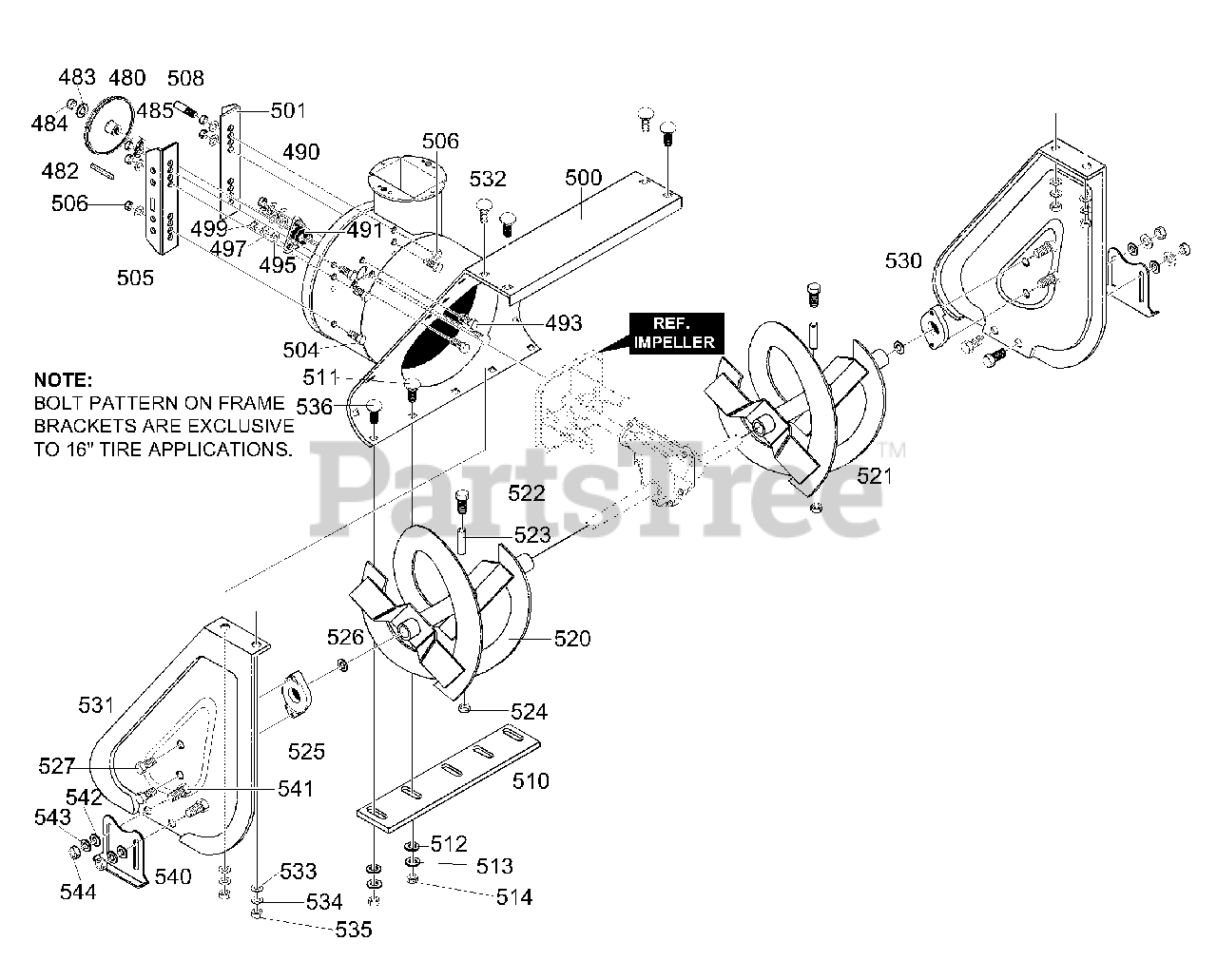

Auger Housing Parts Diagram

  • Title

480

Husqvarna 601001609

PULLEY, V4L 8.40

$

$

Not available

482

Husqvarna 601001507

KEY, SQUARE .18SQX.88LG

$

$

Not available

483

Husqvarna 601001446

FLATWASHER, .53X1.00X.063

$

$

Not available

484

Husqvarna 601000107

NUT, 1/2-20 REGHXCTRLK

$

$

Not available

485

Husqvarna 601001610

SPACER, SLEV .676X1.00X.53

$

$

Not available

490

Husqvarna 601001509

RETAINER, BALL

$

$

Not available

491

Husqvarna 601000565

BRING, BALL 6203-2AA-C3

$

$

Not available

493

Husqvarna 601000073

SCREW 5/16-18X.75

$

$

Not available

495

Husqvarna 601000019

FLATWASHER .344X.69X.065

$3.49

$

In Stock, only 1 left!

0

497

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X.09

$

$

Not available

499

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

500

Husqvarna 601001510

HOUSING, ASSY 27/12

$

$

Not available

501

Husqvarna 601001612

BRACKET & NUTS ASSY

$

$

Not available

504

Husqvarna 601001512

SCREW 3/8-16X.75

$

$

Not available

505

Husqvarna 601000015

WASHER, RGSPTLK .393X.68X.10

$

$

Not available

506

Husqvarna 601000060

NUT 3/8-16 REGHEXCTRLK
(Superseded to 601002407)

$

$

Not available

508

Husqvarna 601001742

STUD, BRAKE ARM

$

$

Not available

510

Husqvarna 601001846

BLADE, SCRAPER 27"

$

$

Not available

511

Husqvarna 601001411

BOLT, 5/16-18X.75 CARR.

$

$

Not available

512

Husqvarna 601000019

FLATWASHER .344X.69X.065

$3.49

$

In Stock, only 1 left!

0

513

Husqvarna 601001744

WASHER, SPTLK .328X.60X.09
(Superseded to 601000023)

$

$

Not available

514

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

520

Husqvarna 601001872

AUGER, ASSY LH 25"

$

$

Not available

521

Husqvarna 601001873

AUGER, ASSY RH 25"

$

$

Not available

522

Husqvarna 601001456

SCREW 1/4-20X1.75

$

$

Not available

523

Husqvarna 601001517

SPACER, SLEV .250X.47X.20

$5.99

$

In Stock, Qty 6

0

524

Husqvarna 601000062

NUT 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$7.99

$

In Stock, only 2 left!

0

525

Husqvarna 601001518

AUGER SHAFT BEARING

$

$

Not available

526

Husqvarna 601001519

FLATWASHER 1.005X1.31X.035

$

$

Not available

527

Husqvarna 601000520

SCREW, 5/16-18X.75 WAHHTAP

$

$

Not available

530

Husqvarna 601001520

PLATE, AUGER HSNG LH

$

$

Not available

531

Husqvarna 601001521

PLATE, AUGER HSNG RH

$

$

Not available

532

Husqvarna 601001411

BOLT 5/16-18X.75 CARR.

$

$

Not available

533

Husqvarna 601000019

FLATWASHER .344X.69X.065

$3.49

$

In Stock, only 1 left!

0

534

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X.09

$

$

Not available

535

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

536

Husqvarna 601000899

BOLT, 5/16-18X1.00 CARR.

$

$

Not available

540

Husqvarna 601001745

SKID, HEIGHT ADJUST

$

$

Not available

541

Husqvarna 601001411

BOLT, 5/16-18X.75 CARR.

$

$

Not available

542

Husqvarna 601000019

FLATWASHER .344X.69X.065

$3.49

$

In Stock, only 1 left!

0

543

Husqvarna 601000023

WASHER, HVSPTLK .31X.58X.08

$

$

Not available

544

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available
