ST 927 E - Husqvarna 27" Snow Blower (1996-01) Chute Control Rod Parts Diagram

27" Snow Blower

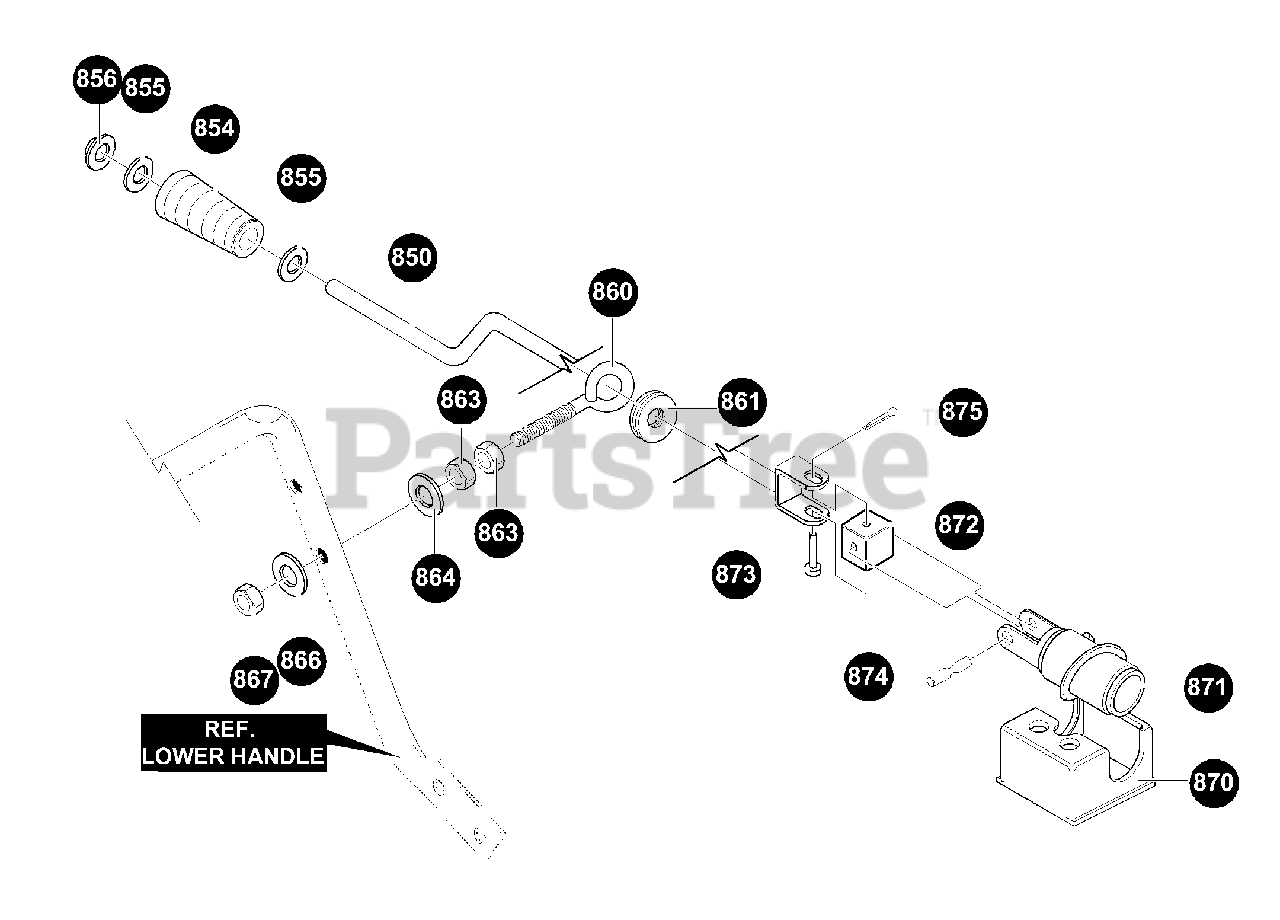

Chute Control Rod Parts Diagram

  • Title

850

Husqvarna 601001749

CRANK ASSY W/YOKE

$

$

Not available

854

Husqvarna 601001569

KNOB, SLEEVE

$

$

Not available

855

Husqvarna 601000020

FLATWASHER .406X.81X.065

$

$

Not available

856

Husqvarna 601001291

NUT, PUSH ON 3/8"

$

$

Not available

860

Husqvarna 601001750

EYE BOLT, 3/8-16X6.00

$

$

Not available

861

Husqvarna 601001408

GROMMET, EYE BOLT

$

$

Not available

863

Husqvarna 601001409

NUT, 3/8-16 HEXJAM

$

$

Not available

864

Husqvarna 601000020

FLATWASHER .406X.81X.065

$

$

Not available

866

Husqvarna 601000020

FLATWASHER, .406X.81X.065

$

$

Not available

867

Husqvarna 601000653

NUT, 3/8-16 REGHEX

$

$

Not available

870

Husqvarna 601001830

BRACKET, WORM MOUNTING

$

$

Not available

871

Husqvarna 601001831

WORM GEAR CHUTE ROTATE

$

$

Not available

872

Husqvarna 601001832

BLOCK, UNIV. PIVOT
(Superseded to 601002053)

$

$

Not available

873

Husqvarna 601001833

PIN, CLEVIS
(Superseded to 601002054)

$

$

Not available

874

Husqvarna 601001834

PIN, UNIV. JOINT
(Superseded to 601002055)

$7.49

$

In Stock, Qty 5

0

875

Husqvarna 601001835

COTTER PIN .06X.50

$

$

Not available
