ST 927 E - Husqvarna 27" Snow Blower (1996-01) Single Hand Control Parts Diagram

27" Snow Blower

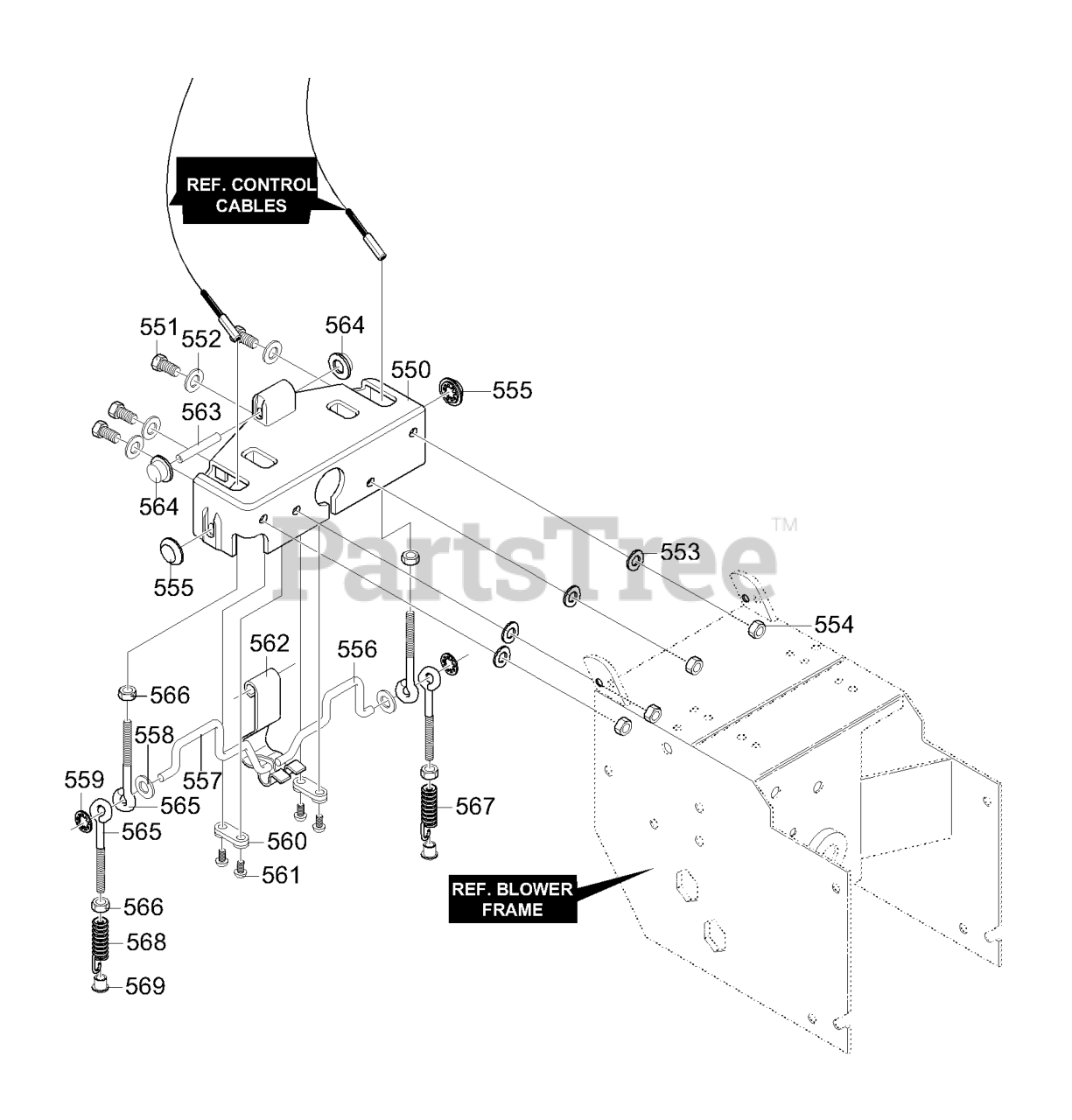

Single Hand Control Parts Diagram

  • Title

550

Husqvarna 601001619

HOUSING, SINGLE HAND CONTL

$

$

Not available

551

Husqvarna 601000073

SCREW, 5/16-18X .75 HHC

$

$

Not available

552

Husqvarna 601000019

WASHER, FLAT .344X .69X.

$

$

Not available

553

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X

$

$

Not available

554

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

555

Husqvarna 601000511

KEY, HI-PRO 404 .50DIAX.1

$

$

Not available

556

Husqvarna 601001620

CAM/LATCH LH

$

$

Not available

557

Husqvarna 601001621

CAM/LATCH RH

$

$

Not available

558

Husqvarna 601000019

WASHER, FLAT .344X .69X.

$

$

Not available

559

Husqvarna 601001622

RING, RETAINING

$

$

Not available

560

Husqvarna 601001623

CLAMP, SHC CAM FRAME MTD

$

$

Not available

561

Husqvarna 601001624

SCREW #8X.75 PANTAPPLAST

$

$

Not available

562

Husqvarna 601001625

CAM LOCK

$

$

Not available

563

Husqvarna 601001626

PIN, SPRING PIVOT

$

$

Not available

564

Husqvarna 601001291

NUT-PUSH ON 3/8"

$

$

Not available

565

Husqvarna 601001627

EYE-BOLT, 10-24X2.50

$8.49

$

Usually ships in 3-10 days

0

566

Husqvarna 601001628

NUT, #10-24 REGHEX

$

$

Not available

567

Husqvarna 601001629

SPRING, DRIVE CLUTCH 2.75

$

$

Not available

568

Husqvarna 601001630

SPRING, AUGER CLUTCH 2.38

$

$

Not available

569

Husqvarna 601001631

NUT, 10-24 T

$

$

Not available
