ST 927 E - Husqvarna 27" Snow Blower (1997-01) DRIVE Parts Diagram

27" Snow Blower

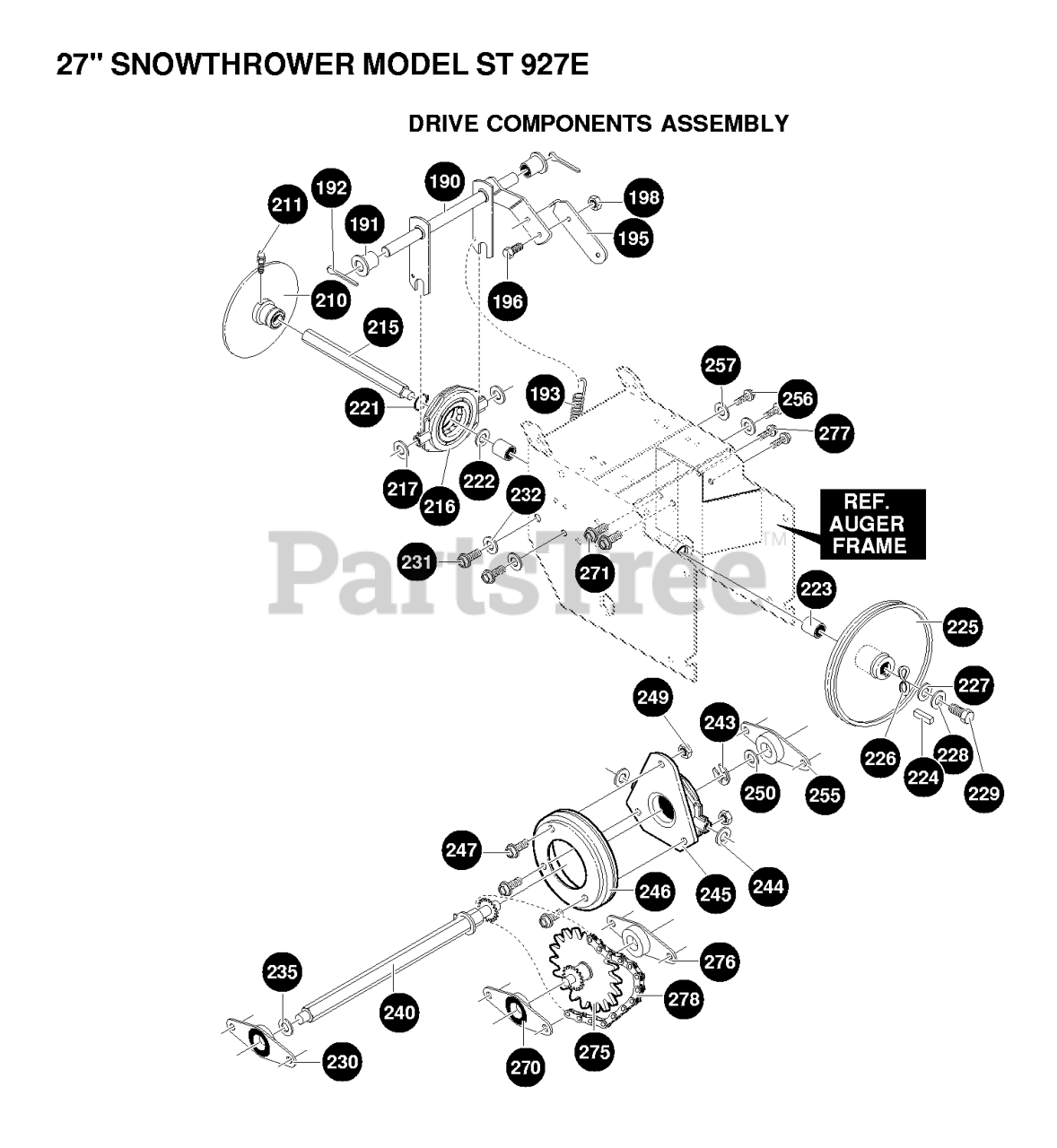

DRIVE Parts Diagram

  • Title

228

Husqvarna 601000014

WASHER, REGSPTLK.263X.49X

$

$

Not available

276

Husqvarna 601001479

BEARING & RETAINER ASSY

$

$

Not available

235

Husqvarna 601001484

WASHER

$

$

Not available

277

Husqvarna 601000519

SCREW, 5/16-18X .50 WAHHT

$

$

Not available

210

Husqvarna 601002031

DISC, ASSY FRICWHL

$

$

Not available

257

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X

$

$

Not available

278

Husqvarna 601001486

CHAIN

$

$

Not available

275

Husqvarna 601001606

JACK, ASSY #41 - 36T & 7T

$

$

Not available

227

Husqvarna 601000003

WASHER, FLAT .281X1.00X.

$

$

Not available

244

Husqvarna 601001446

WASHER

$

$

Not available

240

Husqvarna 601002032

HEX, ASSY #40-8T
(Superseded to 601002475)

$

$

Not available

271

Husqvarna 601000519

SCREW, 5/16-18X .50 WAHHT

$

$

Not available

231

Husqvarna 601000519

SCREW, 5/16-18X .50 WAHHT

$

$

Not available

217

Husqvarna 601001446

WASHER

$

$

Not available

221

Husqvarna 601001474

RING

$

$

Not available

216

Husqvarna 601001472

BEARING

$

$

Not available

246

Husqvarna 601001483

FRICTION DISC

$27.99

$

In Stock, Qty 20+

0

211

Husqvarna 601001470

GREASE FITTING

$

$

Not available

256

Husqvarna 601000519

SCREW, 5/16-18X .50 WAHHT

$

$

Not available

250

Husqvarna 601001484

WASHER

$

$

Not available

191

Husqvarna 601001447

FLANGE BEARING

$

$

Not available

190

Husqvarna 601001466

LEVER

$

$

Not available

198

Husqvarna 601000062

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$7.99

$

In Stock, only 2 left!

0

270

Husqvarna 601001479

BEARING & RETAINER ASSY

$

$

Not available

245

Husqvarna 601001741

BEARING, TRUNION CLUTCH

$

$

Not available

223

Husqvarna 601000539

BEARING
(Superseded to 601000565)

$

$

Not available

192

Husqvarna 601000930

COTTER PIN .125 X 1.0

$

$

Not available

215

Husqvarna 601001471

SHAFT

$

$

Not available

247

Husqvarna 601001374

SCREW

$

$

Not available

230

Husqvarna 601001479

BEARING & RETAINER ASSY

$

$

Not available

195

Husqvarna 601001468

LEVER

$

$

Not available

222

Husqvarna 601001475

WASHER

$

$

Not available

225

Husqvarna 601001477

PULLEY

$

$

Not available

229

Husqvarna 601000068

SCREW, 1/4-20X .75 HHC

$

$

Not available

193

Husqvarna 601001467

SPRING

$

$

Not available

232

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X

$

$

Not available

249

Husqvarna 601001790

NUT, 1/4-20 HEX KEPS

$

$

Not available

243

Husqvarna 601002033

RING, RETEX

$

$

Not available

226

Husqvarna 601001478

WASHER

$

$

Not available

196

Husqvarna 601001374

SCREW

$

$

Not available

224

Husqvarna 601001476

SQUARE KEY

$

$

Not available

255

Husqvarna 601001479

BEARING & RETAINER ASSY

$

$

Not available
