ST 927 E - Husqvarna 27" Snow Blower (1997-01) GEAR CASE Parts Diagram

27" Snow Blower

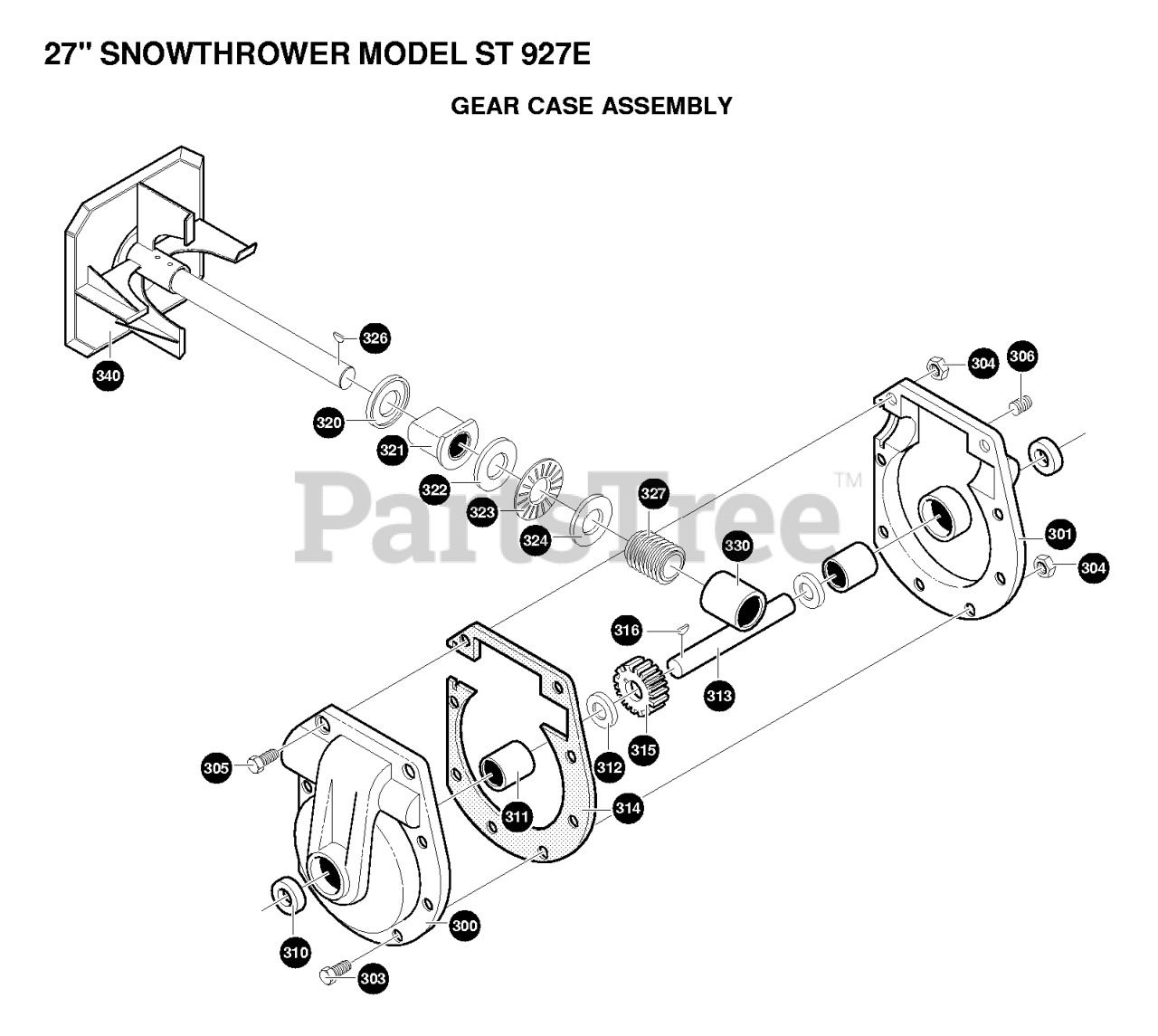

GEAR CASE Parts Diagram

  • Title

340

Husqvarna 601001505

IMPEL ASSY
(Superseded to 601002484)

$

$

Not available

306

Husqvarna 601001490

PIPE PLUG

$

$

Not available

324

Husqvarna 601001500

WASHER

$

$

Not available

327

Husqvarna 601001503

WORM GEAR

$

$

Not available

313

Husqvarna 601001608

SHAFT, AUGER OUTPUT MF 22"

$

$

Not available

326

Husqvarna 601001502

HI-PRO KEY

$

$

Not available

312

Husqvarna 601001493

WASHER

$

$

Not available

314

Husqvarna 601001495

GASKET

$

$

Not available

304

Husqvarna 601001662

NUT,5/16-24
(Superseded to 601000823)

$

$

Not available

321

Husqvarna 601001499

FLANGE BEARING

$

$

Not available

316

Husqvarna 601001497

WOODRUFF KEY

$

$

Not available

311

Husqvarna 601001492

BEARING

$

$

Not available

315

Husqvarna 601001496

WORM GEAR

$

$

Not available

310

Husqvarna 601001491

OIL SEAL
(Superseded to 601002324)

$14.99

$

Usually ships in 3-10 days

0

330

Husqvarna 601001504

BEARING

$

$

Not available

301

Husqvarna 601001488

GEAR CASE, LH

$

$

Not available

303

Husqvarna 601001443

SCREW

$

$

Not available

320

Husqvarna 601001498

RING

$

$

Not available

300

Husqvarna 601001487

GEAR CASE, RH

$

$

Not available

323

Husqvarna 601001501

ROLLER BEARING

$

$

Not available

305

Husqvarna 601001607

SCREW, 5/16-24X1.50 HHC

$

$

Not available

322

Husqvarna 601001500

WASHER

$

$

Not available
