ST 927 E - Husqvarna 27" Snow Blower (1997-11) Chute Crank Assembly Parts Diagram

27" Snow Blower

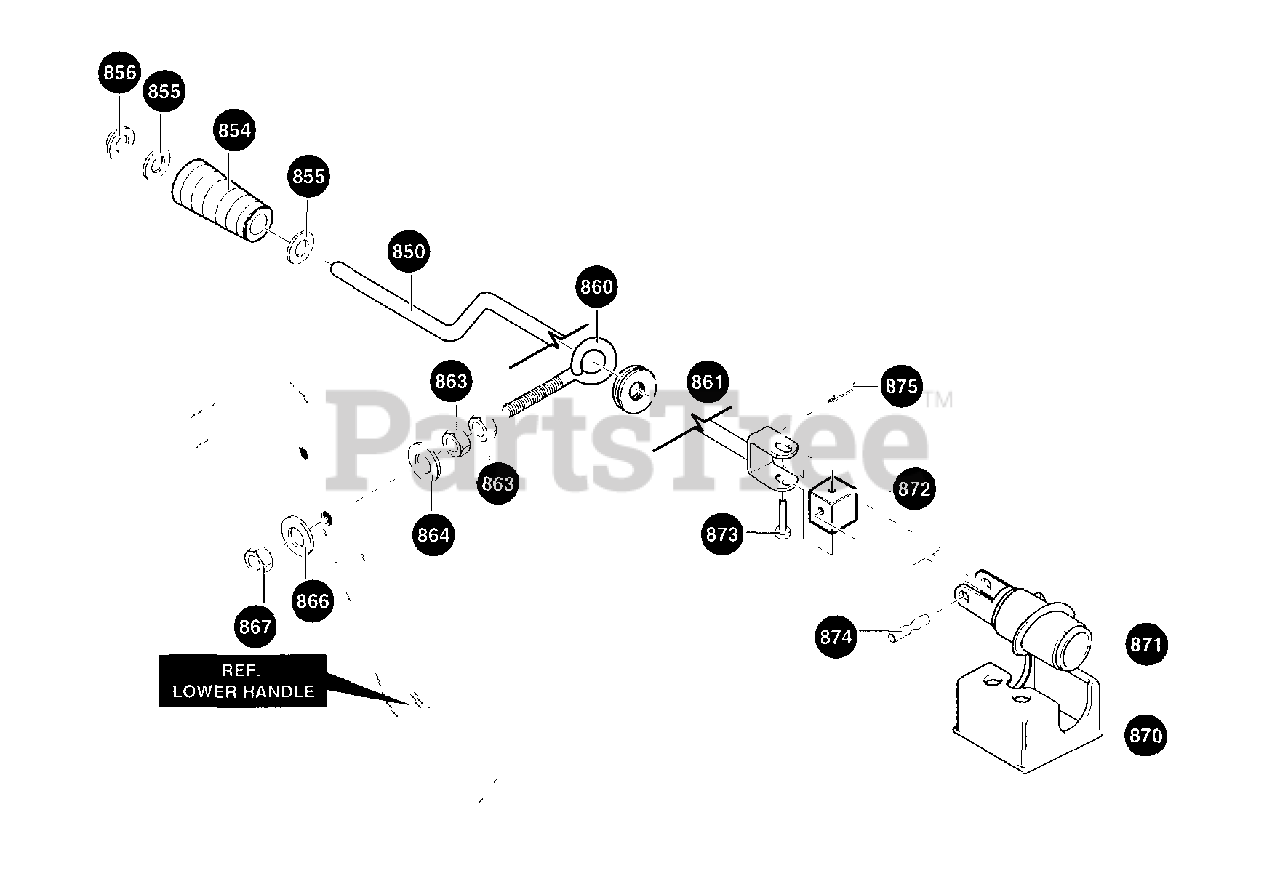

Chute Crank Assembly Parts Diagram

  • Title

850

Husqvarna 601001749

CRANK, ASSY

$

$

Not available

854

Husqvarna 601001569

KNOB,SLEEVE

$

$

Not available

855

Husqvarna 601000020

FLATWASHER .406 X .81 X .065

$

$

Not available

856

Husqvarna 601001291

NUT, PUSH ON

$

$

Not available

860

Husqvarna 601001570

BOLT, EYE

$

$

Not available

861

Husqvarna 601001408

GROMMET, EYE BOLT

$

$

Not available

863

Husqvarna 601001409

NUT 3/8-16

$

$

Not available

864

Husqvarna 601000020

FLATWASHER .406 X .81 X .065

$

$

Not available

866

Husqvarna 601000020

FLATWASHER .406 X .81 X .065

$

$

Not available

867

Husqvarna 601000653

NUT, 3/8-16 HEXNYL

$

$

Not available

870

Husqvarna 601001830

BRACKET, WORM MOUNT

$

$

Not available

871

Husqvarna 601001831

WORM GEAR CHUTE ROT

$

$

Not available

872

Husqvarna 601002053

BLOCK, UNIV PIV.

$

$

Not available

873

Husqvarna 601002054

CLEVIS PIN

$

$

Not available

874

Husqvarna 601002055

PIN, UNIV JOINT

$7.49

$

In Stock, Qty 5

0

875

Husqvarna 601001835

COTTER PIN

$

$

Not available
