ST 927 E - Husqvarna 27" Snow Blower (1997-11) Single Hand Control Assembly (Part 1) Parts Diagram

27" Snow Blower

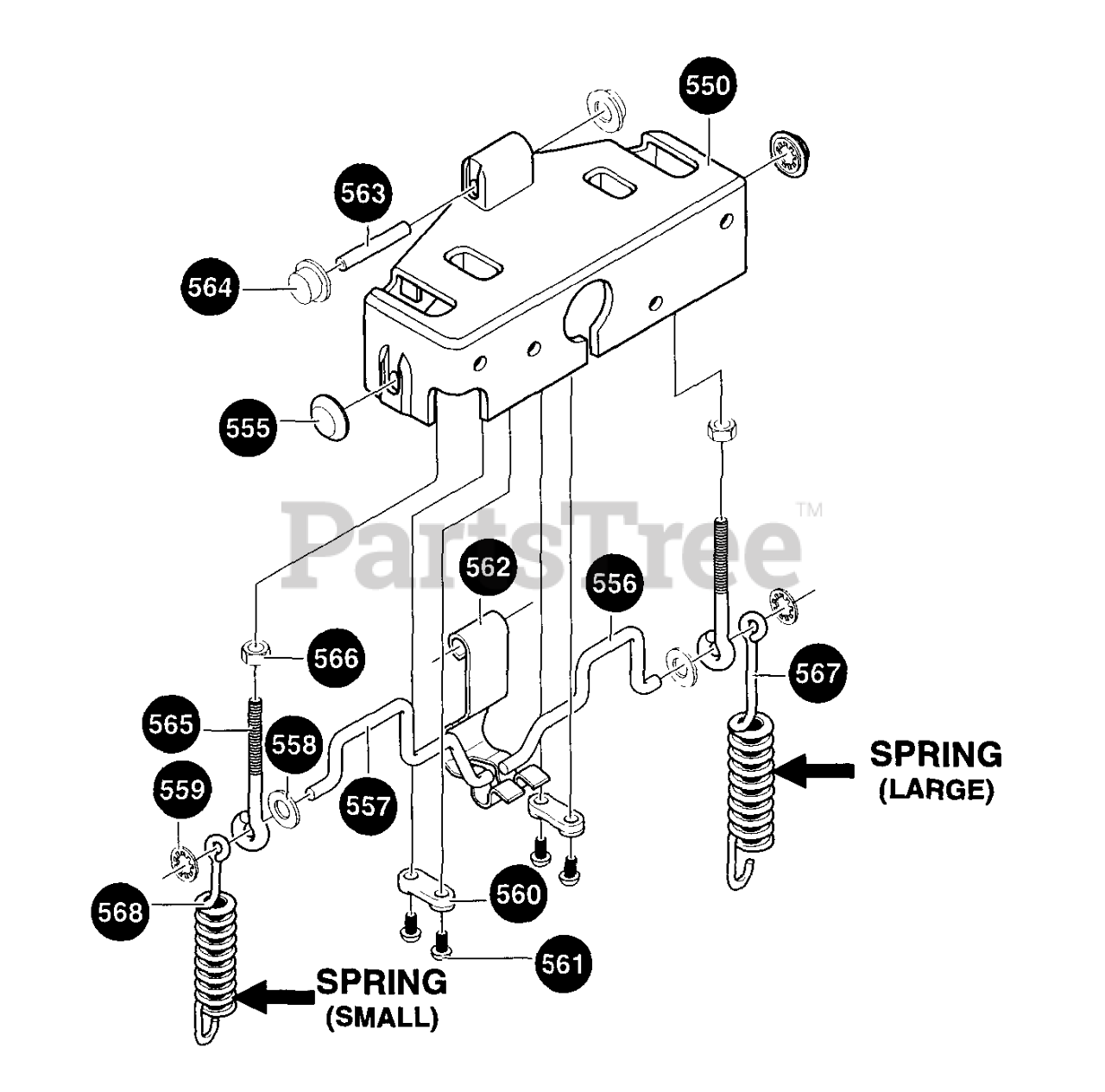

Single Hand Control Assembly (Part 1) Parts Diagram

  • Title

550

Husqvarna 601001619

HOUSING, SINGLE HAND CONTL

$

$

Not available

555

Husqvarna 601000516

NUT, PUSH ON CAP .312 OD

$

$

Not available

556

Husqvarna 601001620

CAM/LATCH LH

$

$

Not available

557

Husqvarna 601001621

CAM/LATCH RH

$

$

Not available

558

Husqvarna 601000019

WASHER, FLAT .344X .69X.

$

$

Not available

559

Husqvarna 601001622

RING, RETAINING

$

$

Not available

560

Husqvarna 601001623

CLAMP, SHC CAM FRAME MTD

$

$

Not available

561

Husqvarna 601001624

SCREW, #8 X .75 PANTAPPLAST

$

$

Not available

562

Husqvarna 601001625

CAM LOCK

$

$

Not available

563

Husqvarna 601001626

PIN, SPRING PIVOT

$

$

Not available

564

Husqvarna 601001291

NUT-PUSH ON 3/8"

$

$

Not available

565

Husqvarna 601001627

EYE-BOLT, 10-24X2.50

$8.49

$

Usually ships in 3-10 days

0

566

Husqvarna 601001628

NUT, #10-24 REGH

$

$

Not available

567

Husqvarna 601002167

SPRING, DRIVE CLUTCH

$

$

Not available

568

Husqvarna 601002166

SPRING, AUGER CLUTCH

$

$

Not available
