ST 927 E - Husqvarna 27" Snow Blower (1997-11) Single Hand Control Assembly (Part 1) Parts Diagram

27" Snow Blower

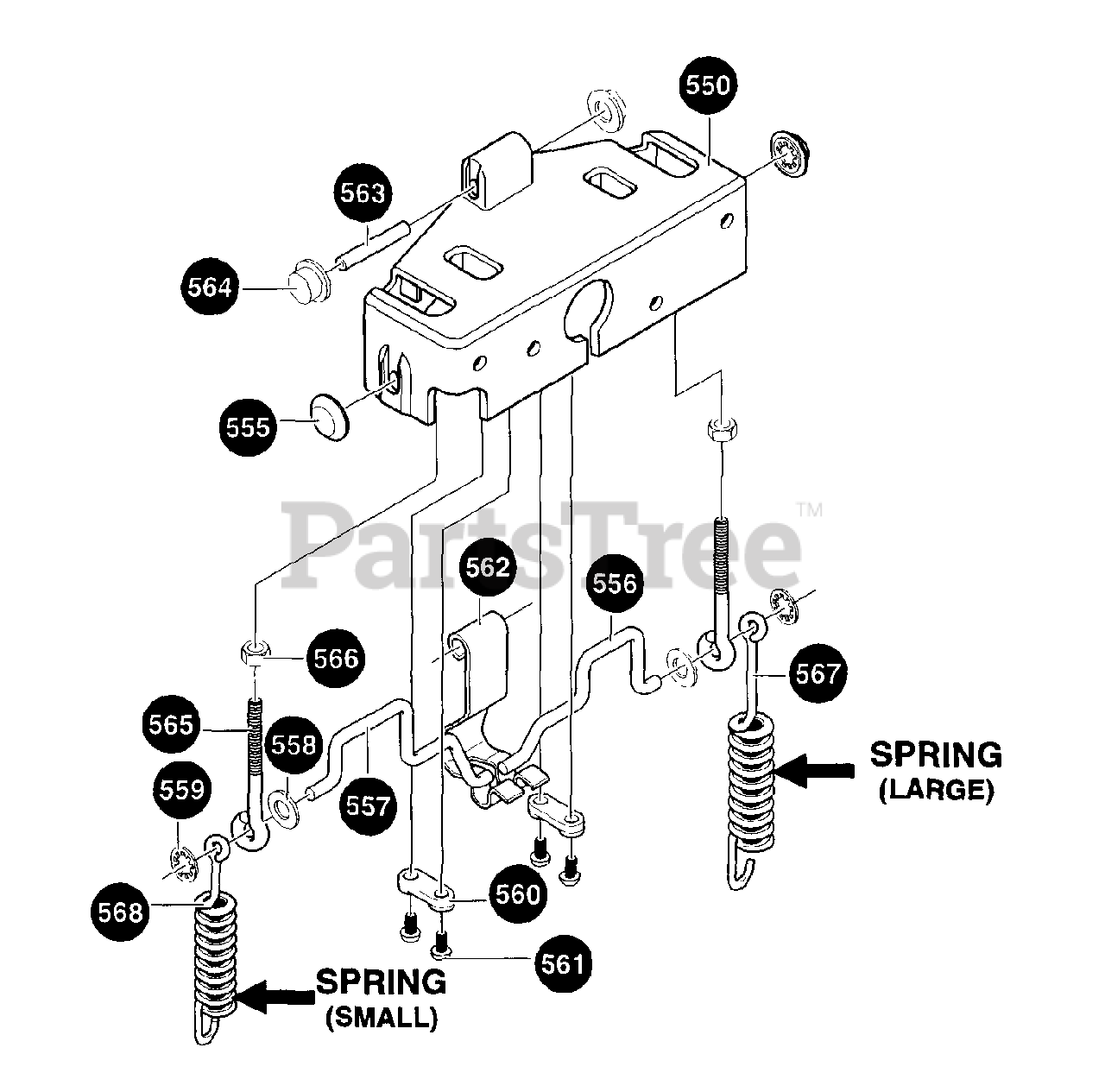

Single Hand Control Assembly (Part 1) Parts Diagram

  • Title

550

Husqvarna 601001619

HOUSING, SINGLE HAND

$

$

Not available

555

Husqvarna 601000516

NUT, PUSH ON CAP 312 OD

$

$

Not available

556

Husqvarna 601001620

CAM/LATCH, LH

$

$

Not available

557

Husqvarna 601001621

CAM/LATCH, RH

$

$

Not available

558

Husqvarna 601000019

WASHER, FLAT .344 X .69 X .065

$3.49

$

In Stock, only 1 left!

0

559

Husqvarna 601001622

RING, RETEX X TRU5115-31

$

$

Not available

560

Husqvarna 601001623

CLAMP, SHC CAM FRAME MOUNTED

$

$

Not available

561

Husqvarna 601001624

SCREW, #8 X .75 PANTAPPLAST

$

$

Not available

562

Husqvarna 601001625

CAM LOCK

$

$

Not available

563

Husqvarna 601001626

PIN, SPRING PIVOT SHC

$

$

Not available

564

Husqvarna 601001291

NUT, PUSH ON 3/8"

$

$

Not available

565

Husqvarna 601001627

BOLT, EYE

$7.99

$

In Stock, only 1 left!

0

566

Husqvarna 601001628

NUT, #10-24 REGH

$

$

Not available

567

Husqvarna 601002167

SPRf NG, DRIVE CLUTCH

$

$

Not available

568

Husqvarna 601002166

SPRING, AUGER CLUTCH

$

$

Not available
