ST 927 E - Husqvarna 27" Snow Blower (1998-01) Auger Housing Assembly Parts Diagram

27" Snow Blower

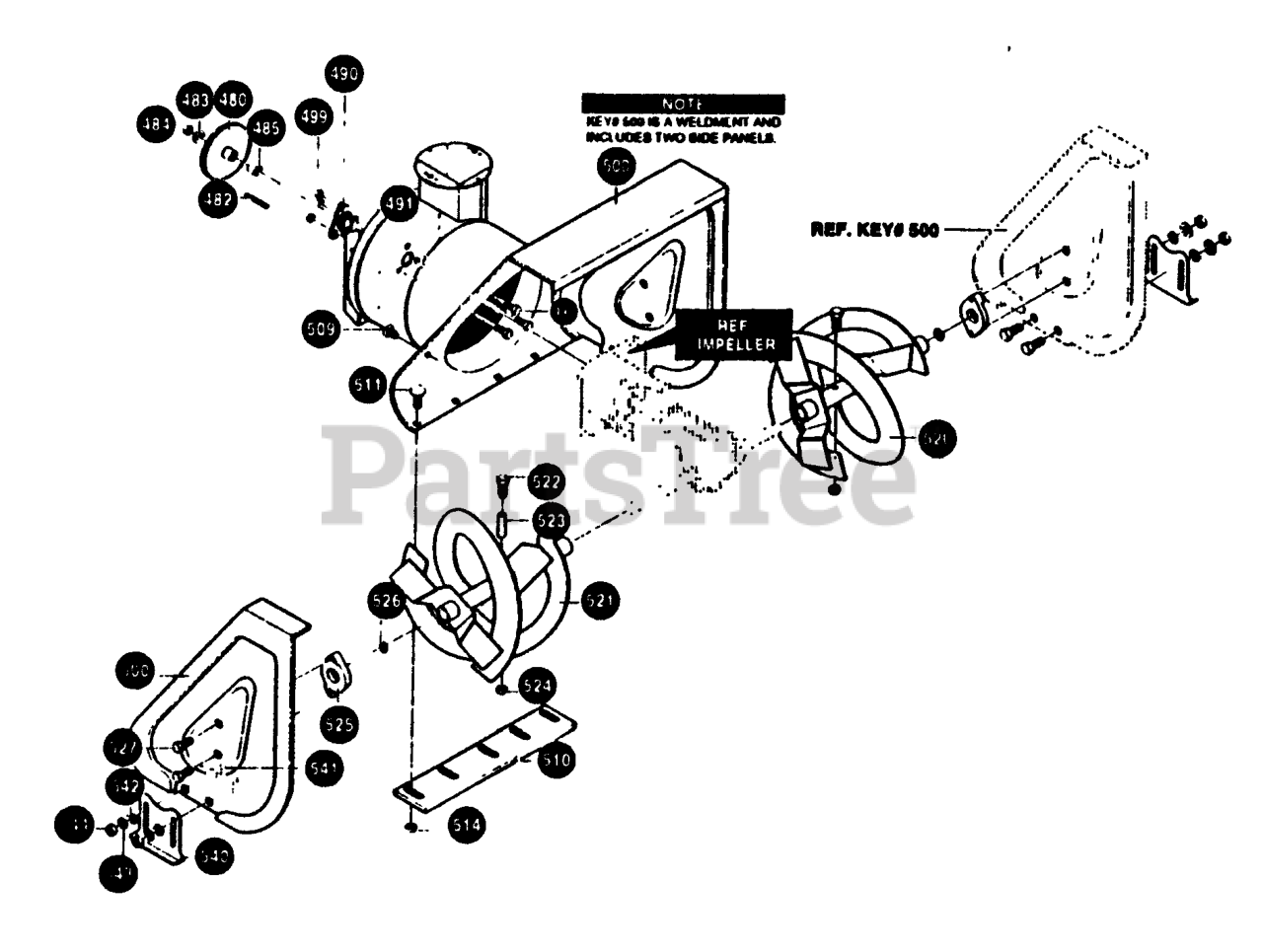

Auger Housing Assembly Parts Diagram

  • Title

480

Husqvarna 601001609

PULLEY, V4L 8.40 OD

$

$

Not available

482

Husqvarna 601001507

SQUARE KEY

$

$

Not available

483

Husqvarna 601001446

WASHER

$

$

Not available

484

Husqvarna 601000107

NUT, 1/2-20 REGHXCTRLK

$

$

Not available

485

Husqvarna 601001610

SPACER, SLEV .676X1.00X.53

$

$

Not available

490

Husqvarna 601001509

RETAINER

$

$

Not available

491

Husqvarna 601000539

BEARING
(Superseded to 601000565)

$

$

Not available

493

Husqvarna 601000073

SCREW, 5/16-18X .75 HHC

$

$

Not available

499

Husqvarna 601002036

NUT, 5/16-18

$

$

Not available

500

Husqvarna 601002402

HSNG, ASSY

$

$

Not available

509

Husqvarna 601002174

PLUG, CHRISTMAS TREE

$

$

Not available

510

Husqvarna 601002403

SCRAPER BLADE

$

$

Not available

511

Husqvarna 601001411

BOLT

$

$

Not available

514

Husqvarna 601002036

NUT, 5/16-18

$

$

Not available

520

Husqvarna 601002404

AUGER ASSY-LH

$

$

Not available

521

Husqvarna 601002405

AUGER, ASSY RH

$

$

Not available

522

Husqvarna 601001456

BOLT, SHEAR 703057

$

$

Not available

523

Husqvarna 601001517

SPACER

$5.99

$

In Stock, only 3 left!

0

524

Husqvarna 601002318

RP NUT

$14.99

$

Usually ships in 3-10 days

0

525

Husqvarna 601001518

BEARING, AUGER SHAFT

$

$

Not available

526

Husqvarna 601001519

WASHER

$

$

Not available

527

Husqvarna 601000520

SCREW, 5/16-18X .75 WAHHT

$

$

Not available

540

Husqvarna 601001745

SKID. HEIGHT ADJUST

$

$

Not available

541

Husqvarna 601001411

BOLT

$

$

Not available

542

Husqvarna 601000019

WASHER, FLAT .344X .69X.

$

$

Not available

543

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X

$

$

Not available

544

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available
