ST 927 E - Husqvarna 27" Snow Blower (1998-01) Chute Rod Assembly Parts Diagram

27" Snow Blower

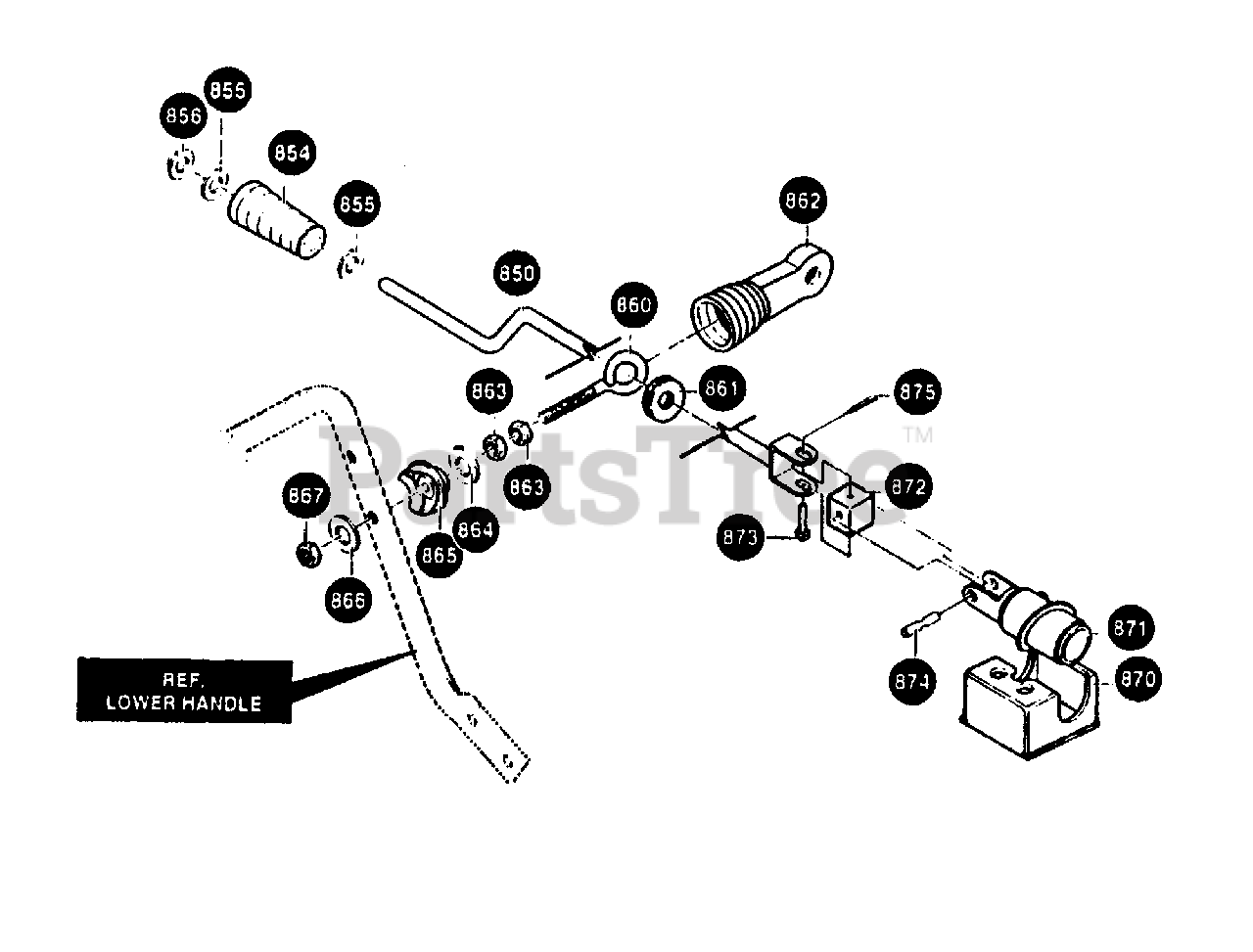

Chute Rod Assembly Parts Diagram

  • Title

850

Husqvarna 601001749

CRANK, ASSY W/YOKE

$

$

Not available

854

Husqvarna 601002048

HANDLE, CRANK

$

$

Not available

855

Husqvarna 601000020

WASHER, FLAT

$

$

Not available

856

Husqvarna 601001863

NUT, PUSH ON 3/8"
(Superseded to 601001291)

$

$

Not available

860

Husqvarna 601001750

BOLT, EYE 6

$

$

Not available

861

Husqvarna 601001408

GROMMET, EYE BOLT

$

$

Not available

862

Husqvarna 601002051

BOOT, EYE BOLT

$

$

Not available

863

Husqvarna 601001409

NUT, 3/8-16 HEXJAM

$

$

Not available

864

Husqvarna 601000020

WASHER, FLAT .406X .81X.065

$

$

Not available

865

Husqvarna 601002052

ADAPTER, BOOT

$

$

Not available

866

Husqvarna 601000020

WASHER, FLAT .406X .81X.065

$

$

Not available

867

Husqvarna 601000853

NUT, 3/8-16
(Superseded to 601000751)

$

$

Not available

870

Husqvarna 601001830

BRACKET, WORM

$

$

Not available

871

Husqvarna 601001831

WORM, GEAR CHUTE

$

$

Not available

872

Husqvarna 601002053

BLOCK, UNIVERSAL

$

$

Not available

873

Husqvarna 601002054

PIN, CLEVIS

$

$

Not available

874

Husqvarna 601002055

PIN, UNIV JOINT

$7.49

$

In Stock, Qty 5

0

875

Husqvarna 601001835

PIN, COTTER .06X .50

$

$

Not available
