STC40-17KA - Scag Tiger Cub 40" Zero-Turn Mower, 17hp Kawasaki (SN: 5810000 - 5819999) Fuel And Hydraulic System Parts Diagram

Tiger Cub 40" Zero-Turn Mower, 17hp Kawasaki

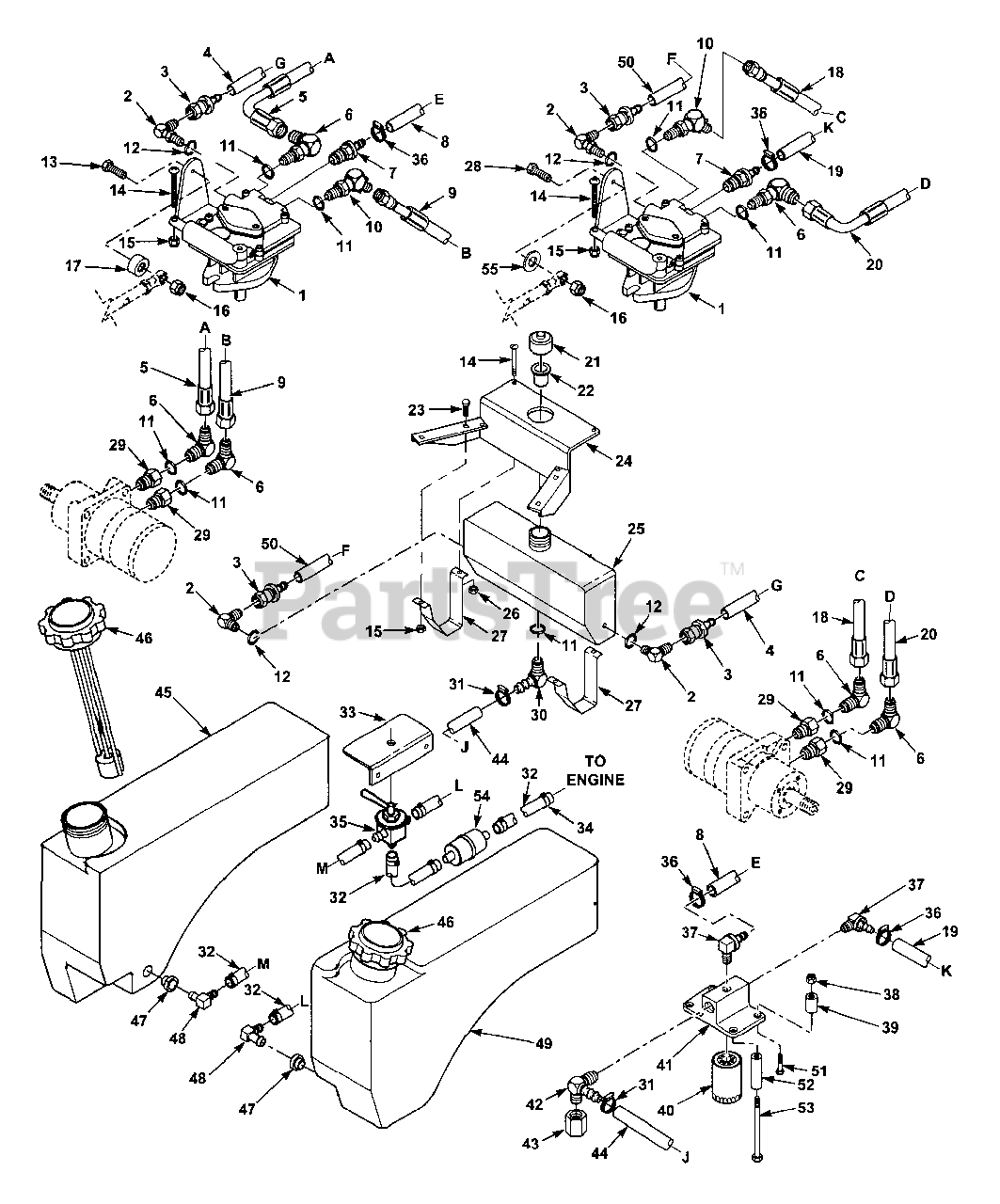

Fuel And Hydraulic System Parts Diagram

  • Title

1

Scag 48551

Pump, Sunstrand BDP-10L 117

$1217.99

$

Usually ships in 2-12 days

0

2

Scag 48350-09

Elbow, 90 Degree 3/8 x 3/8"

$25.99

$

Usually ships in 2-12 days

0

3

Scag 48353-06

Coupling

$10.99

$

In Stock, only 2 left!

0

4

Scag 48811

Hose, 3/8 Pushlock 21" Long

$0.99

$

In Stock, Qty 20+

0

5

Scag 482048

Hose Assembly

$97.99

$

Usually ships in 2-12 days

0

6

Scag 48350-02

Elbow, 90 Degree 1/2 x 1/2"

$26.99

$

In Stock, only 1 left!

0

7

Scag 481467-01

Fitting, 7/16 O-Ring x Hose Barb

$31.99

$

Usually ships in 2-12 days

0

8

Scag 48811

Hose, 3/8 Pushlock 27" Long

$0.99

$

In Stock, Qty 20+

0

9

Scag 482049

Hose Assembly

$97.99

$

Usually ships in 2-12 days

0

10

Scag 48485-01

Elbow, 45 Degree 3/4 JIC x 0-Ring

$23.99

$

Usually ships in 2-12 days

0

11

Scag 48603-02

O-Ring

$3.49

$

In Stock, Qty 5

0

12

Scag 48603-06

O-Ring

$6.99

$

In Stock, only 2 left!

0

13

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

14

Scag 04010-10

Screw, 1/4-20 x 2"

$0.99

$

In Stock, Qty 12

0

15

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

16

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

17

Scag 43077

Spacer

$4.99

$

In Stock, only 1 left!

0

18

Scag 482047

Hose Assembly

$97.99

$

In Stock, only 1 left!

0

19

Scag 48811-13

Hose, 3/8 Pushlock 34" Long

$

$

Currently unavailable

20

Scag 482046

Hose Assembly

$97.99

$

In Stock, only 1 left!

0

21

Scag 481164

Cap, Hydraulic Tank

$18.99

$

In Stock, only 4 left!

0

22

Scag 481507

Insert, Filler Neck

$13.99

$

In Stock, only 1 left!

0

23

Scag 04017-05

Capscrew, 1/4-20 x 3/4" Serr Flange

$0.99

$

In Stock, Qty 20+

0

24

Scag 423059

Support Bracket, Hydraulic Tank

$133.99

$

Usually ships in 2-12 days

0

25

Scag 461323

Hydraulic Tank Assembly w/fittings

$295.99

$

Usually ships in 2-12 days

0

26

Scag 04020-02

Nut, 1/4-20 UNC

$0.99

$

In Stock, Qty 9

0

27

Scag 422794

Strap, Hydraulic Tank

$41.99

$

In Stock, only 1 left!

0

28

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 17

0

29

Scag 48938-02

0-Ring Bushing, 5/8 Tube

$15.99

$

Usually ships in 2-12 days

0

30

Scag 482202

Elbow, 3/4-16 0-Ring 1/2 Hose

$51.99

$

In Stock, only 1 left!

0

31

Scag 48136-05

Clamp, .87 Max Dia

$3.99

$

In Stock, only 2 left!

0

32

Scag 48058

Fuel Hose, 1/4 ID
(Superseded to 483617)

$0.99

$

In Stock, Qty 20+

0

33

Scag 423204

Bracket Fuel Valve

$37.99

$

Usually ships in 2-12 days

0

34

Scag 48059-01

Clamp, Fuel Hose 1/4 Hose ID

$0.99

$

In Stock, Qty 20+

0

35

Scag 482212

Valve, Fuel Shutoff

$44.99

$

Usually ships in 2-12 days

0

36

Scag 48136-07

Clamp, .62 Max. 1.25 Min. Dia.

$

$

Not available

37

Scag 481301-03

Elbow, 1/4 NTP x 3/8 Hose Barb

$10.99

$

In Stock, only 2 left!

0

38

Scag 04019-03

Nut, Serr. Flange 5/16-18

$0.99

$

In Stock, Qty 16

0

39

Scag 43096

Spacer, Oil Filter

$6.49

$

Usually ships in 2-12 days

0

40

Scag 48758

Oil Filter

$27.99

$

Usually ships in 2-12 days

0

41

Scag 48471-02

Filter Head Assembly

$108.99

$

Usually ships in 2-12 days

0

42

Scag 482196

Fitting, Tee Special

$41.99

$

Usually ships in 2-12 days

0

43

Scag 48571-02

Cap, 3/4-16 JIC

$5.99

$

Usually ships in 2-12 days

0

44

Scag 482197

Hose, Filter Inlet

$66.99

$

In Stock, only 1 left!

0

45

Scag 482199

Fuel Tank RH

$304.99

$

Usually ships in 2-12 days

0

46

Scag 481958

Cap, Fuel Tank w/Guage
(Superseded to 483789)

$75.99

$

In Stock, only 4 left!

0

47

Scag 48309

Tank Bushing
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

48

Scag 48939

Elbow, 90 Degree
(Superseded to 483748)

$9.49

$

In Stock, only 2 left!

0

49

Scag 482198

Fuel Tank LH

$278.99

$

Usually ships in 2-12 days

0

50

Scag 48811

Hose, 3/8 Pushlock 15" Long

$0.99

$

In Stock, Qty 20+

0

51

Scag 04001-53

Bolt, Hex Head 5/16-18 x 2-1/2"

$0.99

$

In Stock, Qty 13

0

52

Scag 43555

Spacer

$16.99

$

Usually ships in 2-12 days

0

53

Scag 04001-94

Bolt, Hex Head 5/16-18 x 7-1/2"

$3.49

$

In Stock, only 2 left!

0

54

Fuel Filter

Note: Available through the individual engine manufacturer.

$

$

Not available

55

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0
