STC48A-19KA - Scag Tiger Cub 48" Zero-Turn Mower, 19hp Kawasaki (SN: 9250001 - 9259999) Engine And Attaching Parts (Kawasaki) Parts Diagram

Tiger Cub 48" Zero-Turn Mower, 19hp Kawasaki

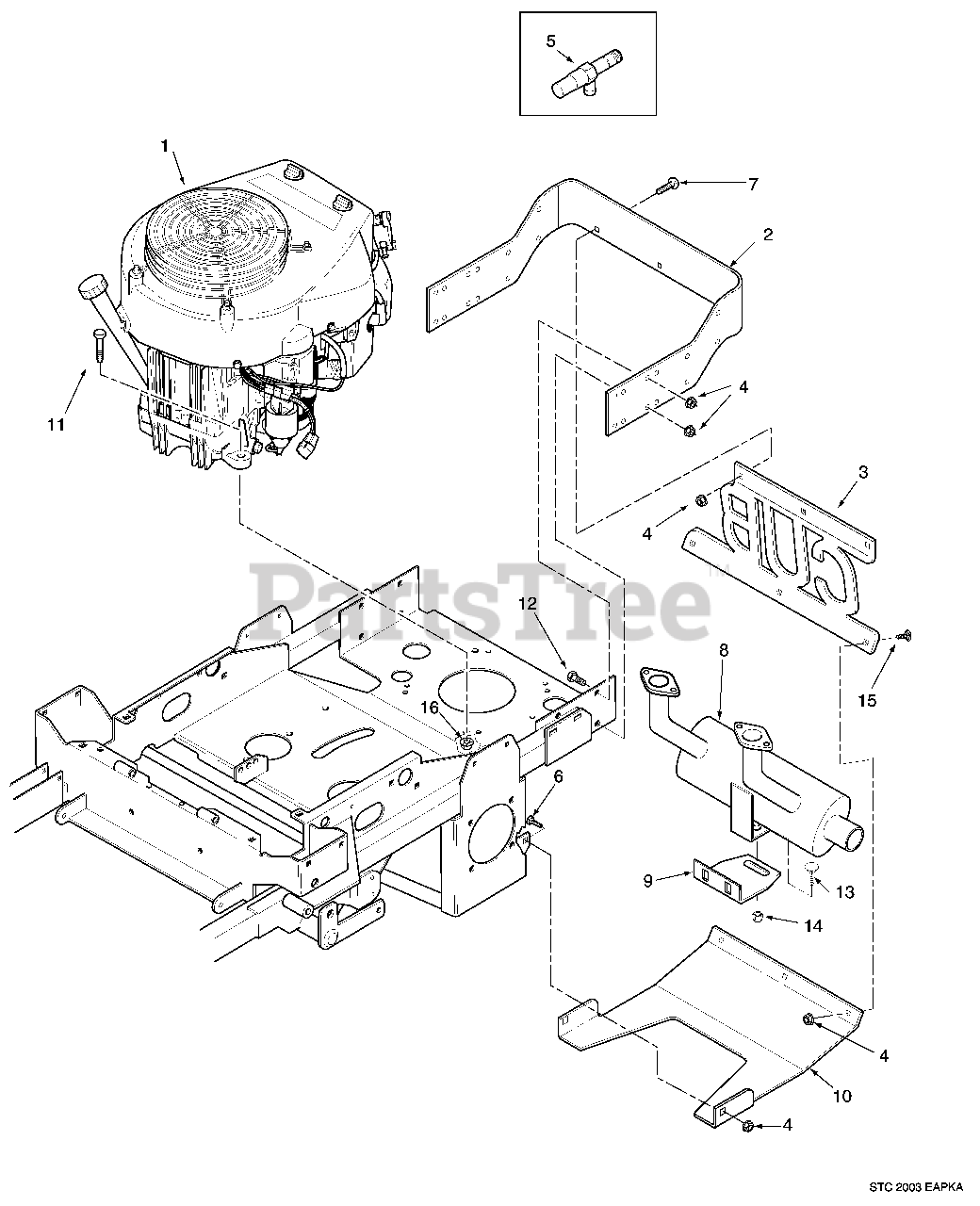

Engine And Attaching Parts (Kawasaki) Parts Diagram

  • Title

1

Scag 482824

Engine, Kawasaki (FH601V-AS29)

$

$

Currently unavailable

2

Scag 423770

Bumper, Rear

$115.99

$

In Stock, only 1 left!

0

3

Scag 423483

Shield, Rear

$94.99

$

Usually ships in 2-12 days

0

4

Scag 04019-04

Nut, Serr. Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

5

Scag 482349

Extension, Oil Drain 4"

$43.99

$

Usually ships in 2-12 days

0

6

Scag 04003-23

Bolt, Carr. 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

7

NOT USED ON THIS MODEL

$

$

Not available

8

Scag 482697

Muffler
(Superseded to 483268)

$405.99

$

Usually ships in 2-12 days

0

9

Scag 423572

Bracket, Muffler

$17.99

$

Usually ships in 2-12 days

0

10

Scag 423555

Plate, Skid

$146.99

$

Usually ships in 2-12 days

0

11

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 10

0

12

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 20+

0

13

Scag 04003-12

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

14

Scag 04019-03

Nut, Serr. Flange 5/16-18

$0.99

$

In Stock, Qty 12

0

15

Scag 04003-31

Bolt, Carr. 3/8-16 x 3/4"

$0.99

$

In Stock, only 3 left!

0

16

Scag 04019-03

Nut, Serr. Flange 5/16-18

$0.99

$

In Stock, Qty 12

0
