STC48A-20CV - Scag Tiger Cub 48" Zero-Turn Mower, 20hp Kohler (SN: 7640001 - 7649999) Cutter Deck Parts Diagram

Tiger Cub 48" Zero-Turn Mower, 20hp Kohler

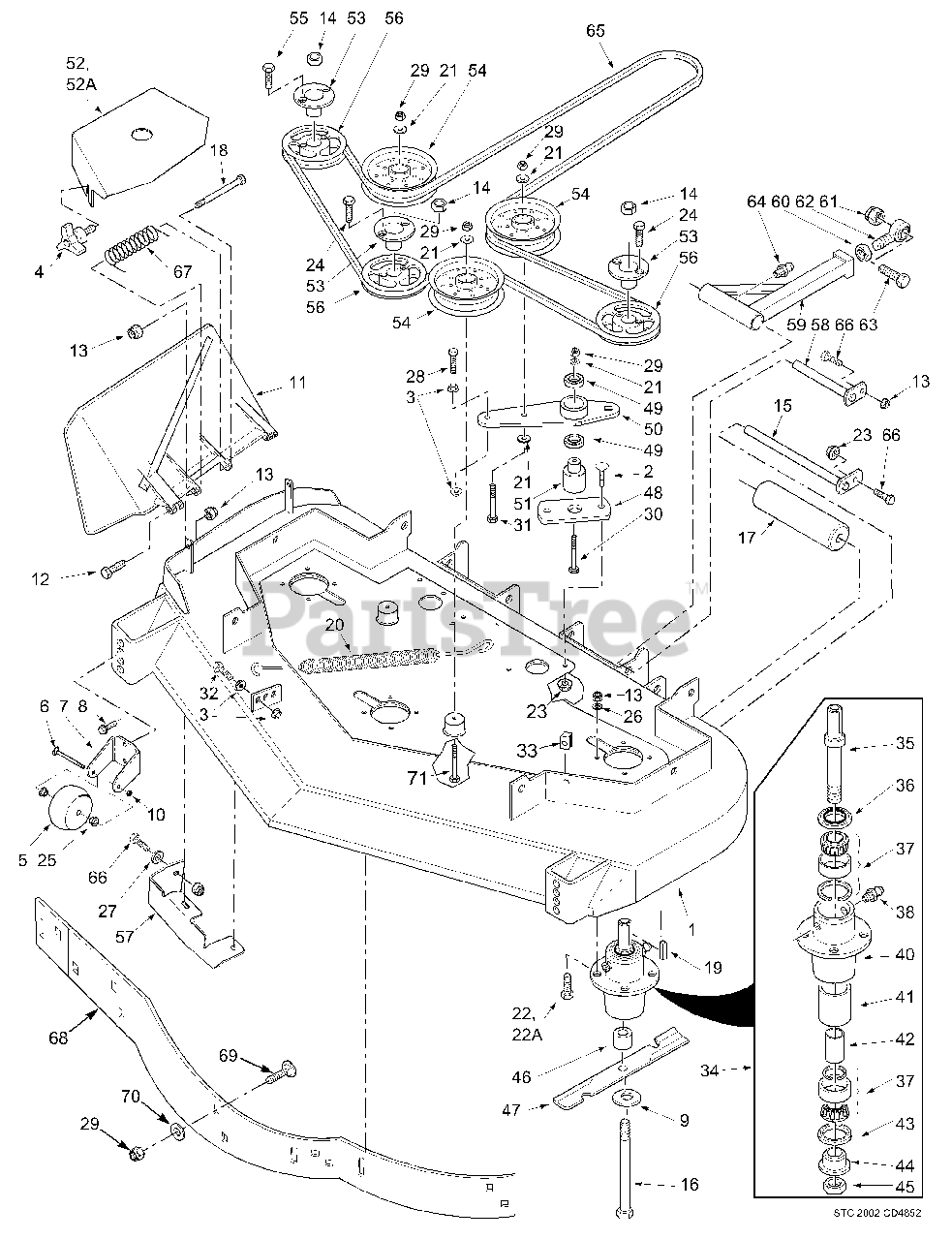

Cutter Deck Parts Diagram

  • Title

1

Scag 461491

Cutter Deck Advantage
(Superseded to 461642K)

$1966.99

$

Usually ships in 2-12 days

0

2

Scag 04003-04

Bolt, Carr. 5/16-18 x 1"

$0.99

$

In Stock, only 4 left!

0

3

Scag 04019-04

Nut, 3/8-16 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

4

Scag 481625-01

Wing Nut, 3/8-16

$2.99

$

In Stock, Qty 20+

0

5

Scag 481632

Anti-Scalp Wheel

$27.99

$

In Stock, Qty 20+

0

6

Scag 04003-26

Bolt, Carriage 3/8-16 x 4"

$1.99

$

In Stock, Qty 20+

0

7

Scag 422478

Bracket, Anti-Scalp Wheel

$28.99

$

In Stock, Qty 8

0

8

Scag 04017-27

Bolt, Serrated Flange 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

9

Scag 04043-06

Flatwasher, 5/8" Hardened

$1.99

$

In Stock, Qty 20+

0

10

Scag 04021-05

Locknut, 3/8-16 Center Lock

$0.99

$

In Stock, Qty 20+

0

11

Scag 461295

Discharge Chute

$70.99

$

In Stock, only 1 left!

0

12

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2", Rear

$0.99

$

In Stock, Qty 9

0

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4", Front

$0.99

$

In Stock, Qty 20+

0

13

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

14

Scag 04020-09

Nut, 5/8-11 UNC

$0.99

$

In Stock, Qty 20+

0

15

Scag 45944

Shaft, Roller

$22.99

$

In Stock, Qty 16

0

16

Scag 04001-41

Bolt, Hex Head 5/8-11 x 9-1/2"

$15.99

$

In Stock, Qty 20+

0

17

Scag 48038

Roller, Rear

$29.99

$

In Stock, Qty 6

0

18

Scag 04001-154

Bolt, Hex Head 5/16-18 x 4-3/4"

$2.99

$

In Stock, Qty 14

0

19

Scag 04063-08

Key, 1/4 x 1/4 x 2"

$1.49

$

In Stock, Qty 20+

0

20

Scag 481597

Spring, Idler
(Superseded to 483704)

$29.99

$

In Stock, Qty 16

0

21

Scag 04043-04

Flatwasher, 3/8"

$0.99

$

In Stock, Qty 20+

0

22

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 9

0

22A

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

23

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

24

Scag 04001-01

Bolt, Hex Head 1/2-20 x 3/4"

$0.99

$

In Stock, Qty 19

0

25

Scag 48100-15

Bushing, .376 ID Oilite

$4.99

$

In Stock, Qty 20+

0

26

Scag 04030-03

Lockwasher 5/16"

$0.99

$

In Stock, Qty 20+

0

27

Scag 04040-15

Flatwasher 5/16"

$0.99

$

In Stock, Qty 10

0

28

Scag 04001-136

Bolt, 3/8-16 x 1-1/2" Grade 8

$0.99

$

In Stock, Qty 20+

0

29

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

30

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 10

0

31

Scag 04001-62

Bolt, Hex Head 3/8-16 x 3.25"

$1.49

$

In Stock, Qty 20+

0

32

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2 Grade 8

$0.99

$

In Stock, Qty 20+

0

33

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

34

Scag 46631

Spindle Assembly
(Superseded to 461663)

$263.99

$

In Stock, Qty 20+

0

35

Scag 43298

Shaft, Spindle
(Superseded to 43589)

$59.99

$

In Stock, Qty 8

0

36

Scag 481024

Seal Upper

$4.99

$

In Stock, Qty 20+

0

37

Scag 481022

Bearing Assembly

$61.99

$

In Stock, Qty 12

0

38

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

?39

Scag 48677

Valve, Grease Relief

$9.49

$

In Stock, only 1 left!

0

40

Scag 43294

Housing, Spindle
(Superseded to 43644)

$60.99

$

Usually ships in 2-12 days

0

41

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 3 left!

0

42

Scag 43296

Spacer, Inside

$8.49

$

In Stock, Qty 5

0

43

Scag 481025

Seal, Lower

$4.99

$

In Stock, Qty 20+

0

44

Scag 43297

Bushing, Bottom

$9.99

$

In Stock, only 2 left!

0

45

Scag 481035

Nut, Special 1-1/16 - 18

$7.99

$

In Stock, Qty 10

0

46

Scag 43590

Spacer, Spindle

$17.99

$

Usually ships in 2-12 days

0

47

Scag 482461

Cutter Blade 16.5"
(Superseded to 481706)

$21.99

$

In Stock, Qty 20+

0

48

Scag 422713

Pivot, Idler Base

$14.99

$

Usually ships in 2-12 days

0

49

Scag 48224

Bearing

$13.99

$

In Stock, Qty 20+

0

50

Scag 461529

Idler Arm Assy.

$101.99

$

Usually ships in 2-12 days

0

51

Scag 43503

Idler Pivot

$27.99

$

In Stock, Qty 5

0

52

Scag 423604

Belt Cover LH (48A)

$89.99

$

Usually ships in 2-12 days

0

52A

Scag 423605

Belt Cover RH (48A)

$85.99

$

Usually ships in 2-12 days

0

53

Scag 48926

Hub, Tapered 1-1/8" Bore

$31.99

$

In Stock, Qty 20+

0

54

Scag 482416

Pulley, Idler 5.0"
(Superseded to 483215)

$62.99

$

In Stock, Qty 20+

0

55

Scag 04001-14

Bolt, Hex Head 1/4-20 x 1"

$0.99

$

In Stock, Qty 10

0

56

Scag 482148

Pulley 4.75"
(Superseded to 483282)

$37.99

$

In Stock, Qty 12

0

57

Scag 422599

Turbo Baffle, Bolt On
(Superseded to 423955)

$124.99

$

Usually ships in 2-12 days

0

58

Scag 451240

Push Arm Shaft

$53.99

$

In Stock, Qty 11

0

59

Scag 461516

Push Arm

Note: (Includes 64, 60, 62)

$216.99

$

In Stock, only 4 left!

0

60

Scag 04020-16

Nut, 5/8-18 UNF

$0.99

$

In Stock, Qty 19

0

61

Scag 04021-13

Nut, Elastic Stop 5/8-11

$1.49

$

In Stock, Qty 11

0

62

Scag 48763

Rod End, 5/8 Male RH Thread

$59.99

$

In Stock, Qty 11

0

63

Scag 04001-79

Bolt, Hex Head 5/8-11 x 4-1/2"

$4.99

$

In Stock, Qty 11

0

64

Scag 48114-04

Grease Fitting, 90 Degree

$1.49

$

In Stock, Qty 20+

0

65

Scag 482529

Belt, Cutter Deck Drive (48A")

$102.99

$

In Stock, only 4 left!

0

66

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

67

Scag 482245

Spring, Discharge Chute

$11.99

$

In Stock, Qty 7

0

68

Scag 451507

Baffle Weldment, 48A

$206.99

$

Usually ships in 2-12 days

0

69

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

70

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

71

Scag 04001-51

Bolt, Hex Head 3/8-16 x 3-3/4"

$1.49

$

In Stock, Qty 20+

0
