STC48V-22FS-LE - Scag Tiger Cat 48" Zero-Turn Mower, 22hp Kawasaki (SN: F7600001 - F7699999) STC Fuel System - C.A.R.B. Tier 3 Parts Diagram

Tiger Cat 48" Zero-Turn Mower, 22hp Kawasaki

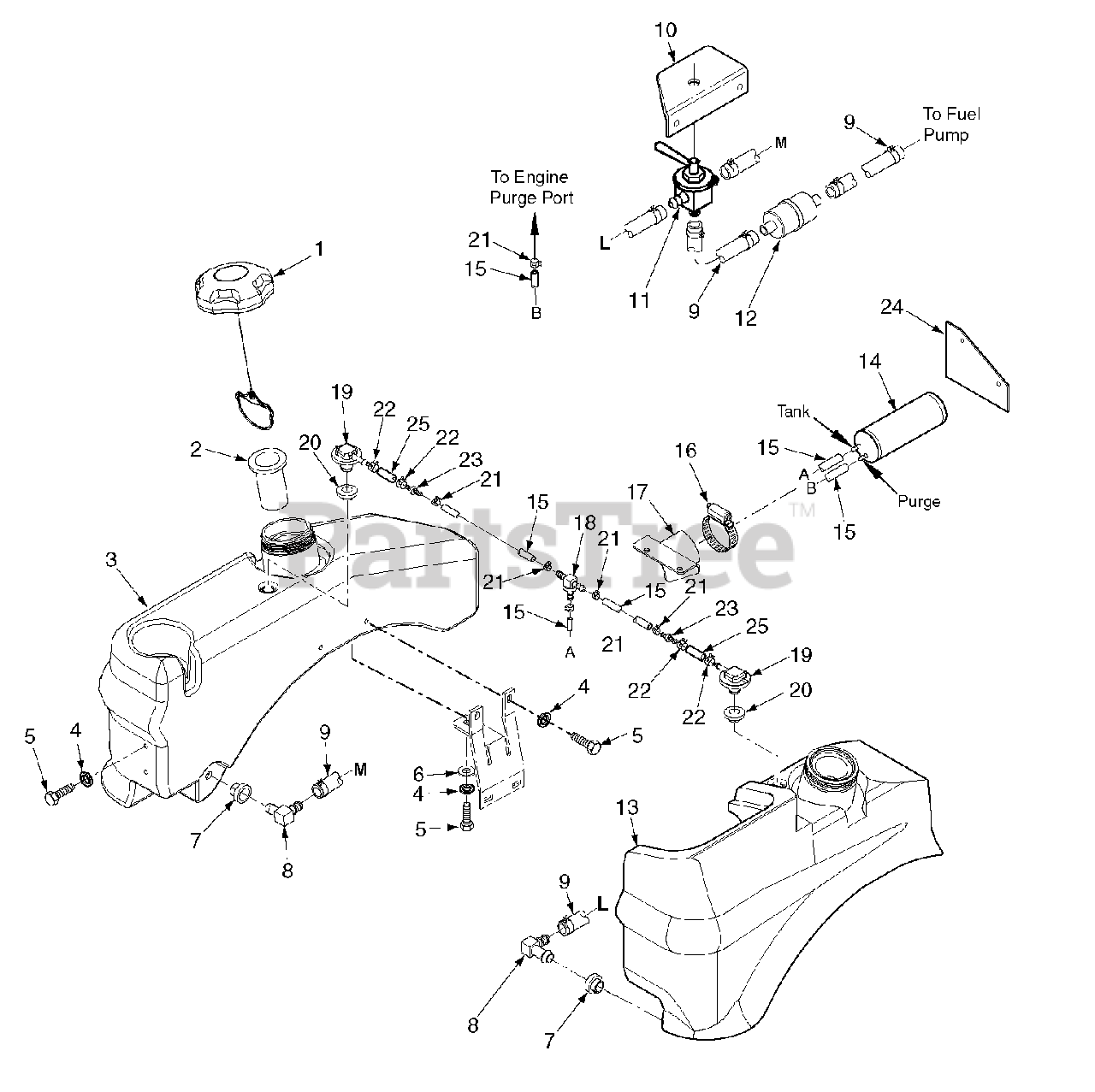

STC Fuel System - C.A.R.B. Tier 3 Parts Diagram

  • Title

1

Scag 484297

Fuel Cap w/ Tethered

Note: (C.A.R.B.)

$65.99

$

Usually ships in 2-12 days

0

2

Scag 484279-01

Tube, Fuel Tank Insert

$4.49

$

Usually ships in 2-12 days

0

3

Scag 462296

Fuel Tank RH

Note: (Incl. #7 & #8)

$254.99

$

Usually ships in 2-12 days

0

4

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0

5

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

6

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 9

0

7

Scag 482571

Tank Bushing

$12.99

$

In Stock, Qty 20+

0

8

Scag 483748

Fitting, 90 Degree

$9.49

$

In Stock, only 2 left!

0

9

Scag 483617

Fuel Hose, 1/4" I.D. Non-Perm

Note: (Order by inch)

$0.99

$

In Stock, Qty 20+

0

10

Scag 423912

Bracket, Fuel Valve

$25.99

$

Usually ships in 2-12 days

0

11

Scag 482212

Fuel Shutoff Valve

$44.99

$

Usually ships in 2-12 days

0

12

Fuel Filter

Note: Available through engine manufacturer only.

$

$

Not available

13

Scag 462295

Fuel Tank LH

Note: (Incl. #7 & #8)

$247.99

$

Usually ships in 2-12 days

0

14

Scag 484342

Carbon Canister

$103.99

$

In Stock, only 4 left!

0

15

Scag 484347

Hose, 3/16"

Note: (Order by inch)

$0.99

$

In Stock, only 3 left!

0

16

Scag 48136-17

Clamp

$7.49

$

Usually ships in 2-12 days

0

17

Scag 452176

Bracket, Canister Mounting

$35.99

$

Usually ships in 2-12 days

0

18

Scag 48935-02

T - Fitting, Fuel Vent

$29.99

$

Usually ships in 2-12 days

0

19

Scag 484284

Valve, Rollover
(Superseded to 484333)

$14.99

$

In Stock, only 3 left!

0

20

Scag 484285

Grommet, Viton

$11.99

$

Usually ships in 2-12 days

0

21

Scag 48059-05

Clamp, Vapor Recovery Hose 3/16"

$4.49

$

In Stock, only 3 left!

0

22

Scag 48059-02

Clamp, Fuel Hose

$0.99

$

In Stock, Qty 10

0

23

Scag 484343-01

Mender, 1/4 x 3/16 w/.02 Hole

$26.99

$

In Stock, only 1 left!

0

24

Scag 425559

Heatshield

$17.99

$

Usually ships in 2-12 days

0

25

Scag 484347

Hose, 1/4" Vapor Recovery

Note: (Order by inch)

$0.99

$

In Stock, only 3 left!

0
