Scag STC48V-26BS - Scag Tiger Cub 48" Zero-Turn Mower, 26hp Briggs & Stratton (SN: D1300001 - D1399999) Cutter Decks 48" Parts Lookup with Diagrams

1

Scag 461854

Cutter Deck Velocity Plus

$1498.99

$

Usually ships in 2-12 days

2

Scag 43686

Boss, Spring Anchor

$8.49

$

Usually ships in 2-12 days

3

Scag 04019-04

Nut, 3/8-16 Serrated Flange

$0.99

$

In Stock, Qty 20+

4

Scag 481625-01

Wing Nut, 3/8-16

$2.99

$

In Stock, Qty 20+

5

Scag 481632

Anti-Scalp Wheel

$27.99

$

In Stock, Qty 20+

6

Scag 04003-26

Bolt, Carriage 3/8-16 x 4"

$1.99

$

In Stock, Qty 20+

7

Scag 422478

Bracket, Anti-Scalp Wheel

$28.99

$

In Stock, Qty 10

8

Scag 04017-27

Bolt, Serrated Flange 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

9

Scag 04043-06

Flatwasher, 5/8" Hardened

$1.99

$

In Stock, Qty 20+

10

Scag 04021-05

Locknut, 3/8-16 Center Lock

$0.99

$

In Stock, Qty 20+

11

Scag 461844

Discharge Chute

$68.99

$

In Stock, Qty 5

12

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2", Rear

$0.99

$

In Stock, Qty 9

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4", Front

$0.99

$

In Stock, Qty 20+

13

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

14

Scag 04020-09

Nut, 5/8-11 UNC

$0.99

$

In Stock, Qty 20+

15

Scag 45944

Shaft, Roller

$22.99

$

In Stock, Qty 16

16

Scag 04001-41

Bolt, Hex Head 5/8-11 x 9-1/2"

$15.99

$

In Stock, Qty 20+

17

Scag 48038

Roller, Rear

$29.99

$

In Stock, Qty 6

18

Scag 04001-154

Bolt, Hex Head 5/16-18 x 4-3/4"

$2.99

$

In Stock, Qty 15

19

Scag 04063-08

Key, 1/4 x 1/4 x 2"

$1.49

$

In Stock, Qty 20+

20

Scag 483246

Spring, Idler L.H.

$63.99

$

In Stock, Qty 7

21

Scag 04043-04

Flatwasher, 3/8"

$0.99

$

In Stock, Qty 20+

22

Scag 04001-176

Bolt, Hex Head 5/16-18 x 1-3/4" Grade 8

$0.99

$

In Stock, Qty 20+

23

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

24

Scag 04001-51

Bolt, Hex Head 3/8-16 x 3-3/4"

$1.49

$

In Stock, Qty 20+

25

Scag 48100-15

Bushing, .376 ID Oilite

$4.99

$

In Stock, Qty 20+

26

Scag 04030-03

Lockwasher 5/16"

$0.99

$

In Stock, Qty 20+

27

Scag 04040-15

Flatwasher 5/16"

$0.99

$

In Stock, Qty 12

28

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Gr. 8

$0.99

$

In Stock, Qty 20+

29

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

30

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 12

31

Scag 483247

Spring, Idler R.H.

$63.99

$

In Stock, Qty 13

32

Scag 424369

Bracket, Spring Anchor L.H. 48V

$62.99

$

Usually ships in 2-12 days

33

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

34

Scag 461663

Spindle Assembly

$263.99

$

In Stock, Qty 20+

35

Scag 43589

Shaft, Spindle

$59.99

$

In Stock, Qty 8

36

Scag 481024

Seal Upper

$4.99

$

In Stock, Qty 20+

37

Scag 481022

Bearing Assembly

$61.99

$

In Stock, Qty 12

38

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

39

Scag 48677

Valve, Grease Relief

$9.49

$

In Stock, only 1 left!

40

Scag 43644

Housing, Spindle

$60.99

$

Usually ships in 2-12 days

41

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 3 left!

42

Scag 43296

Spacer, Inside

$8.49

$

In Stock, Qty 5

43

Scag 481025

Seal, Lower

$4.99

$

In Stock, Qty 20+

44

Scag 43297

Bushing, Bottom

$9.99

$

In Stock, only 2 left!

45

Scag 481035

Nut, Special 1-1/16 - 18

$7.99

$

In Stock, Qty 10

46

Scag 43590

Spacer, Spindle

$17.99

$

In Stock, Qty 9

47

Scag 482877

Cutter Blade 16.5"

$22.99

$

In Stock, Qty 20+

48

Scag 483210

Pulley, Idler 5" Dia.

$56.99

$

In Stock, Qty 18

49

Scag 48224

Bearing

$13.99

$

In Stock, Qty 20+

50

Scag 461940

Idler Arm Assy.

(Superseded to 462269) 

$86.99

$

In Stock, only 2 left!

51

Scag 43689

Idler Pivot

$10.99

$

In Stock, Qty 20+

52

Scag 424322

Belt Cover

Note: (48V)

$40.99

$

Usually ships in 2-12 days

52A

Scag 424323

Belt Cover

Note: (52V)

$68.99

$

In Stock, only 1 left!

53

Scag 48926

Hub, Tapered 1-1/8" Bore

$31.99

$

In Stock, Qty 20+

54

Scag 461946

Idler Arm

$86.99

$

In Stock, only 2 left!

55

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1" Grade 8

$0.99

$

In Stock, Qty 20+

56

Scag 483282

Pulley 4.75"

$37.99

$

In Stock, Qty 12

57

Scag 424208

Turbo Baffle, Bolt On

(Superseded to 424677) 

$32.99

$

Usually ships in 2-12 days

58

Scag 451240

Push Arm Shaft

$53.99

$

In Stock, Qty 11

59

Scag 461516

Push Arm

Note: (Includes 64,60,62)

$216.99

$

In Stock, only 4 left!

60

Scag 04020-16

Nut, 5/8-18 UNF

$0.99

$

In Stock, Qty 19

61

Scag 04021-13

Nut, Elastic Stop 5/8-11

$1.49

$

In Stock, Qty 11

62

Scag 48763

Rod End, 5/8 Male RH Thread

$59.99

$

In Stock, Qty 11

63

Scag 04001-79

Bolt, Hex Head 5/8-11 x 4-1/2"

$4.99

$

In Stock, Qty 11

64

Scag 48114-04

Grease Fitting, 90 Degree

$1.49

$

In Stock, Qty 20+

65

Scag 483241

Belt, Cutter Deck Drive

Note: (48V)

$67.99

$

In Stock, Qty 20+

66

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

67

Scag 483378

Spring, Discharge Chute

$7.99

$

In Stock, Qty 8

68

Scag 424173

Baffle Weldment, 48V

(Superseded to 424839) 

$86.99

$

In Stock, only 1 left!

69

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

70

Scag 04021-22

Nut, Elastic Stop 5/16-18 Grade 8

$0.99

$

In Stock, Qty 20+

71

Scag 04043-04

Flatwasher 3/8"

$0.99

$

In Stock, Qty 20+

72

Scag 483239

Belt, R.H. Cutter Deck

$32.99

$

Usually ships in 2-12 days

73

Scag 48181

Pulley, Idler 5" Dia.

$26.99

$

In Stock, Qty 20+

74

Scag 483283

Pulley, Double Groove

$63.99

$

In Stock, only 1 left!

75

Scag 483167

Bolt, Special

$17.99

$

Usually ships in 2-12 days

76

Scag 461929

Lever Assy., Deck Level

$62.99

$

Usually ships in 2-12 days

77

Scag 04003-40

Bolt, Carriage 7/16-14 x 1-1/4"

$1.49

$

In Stock, Qty 11

78

Scag 04040-11

Flatwasher, 7/16-.500 x 1.25 x .083

$0.99

$

In Stock, Qty 13

79

Scag 04021-11

Nut, Elastic Stop 7/16-14

$0.99

$

In Stock, Qty 9

80

Scag 424367

Dust Shield

$2.49

$

In Stock, Qty 9

81

Scag 04030-03

Lockwasher 3/8"

$0.99

$

In Stock, Qty 20+

82

Scag 424376

Bracket, Spring Anchor R.H.

$13.99

$

Usually ships in 2-12 days

83

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Gr. 8

$0.99

$

In Stock, Qty 20+

84

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 20+

85

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 20+

86

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Gr. 8

$0.99

$

In Stock, Qty 20+

87

Scag 43689

Idler Pivot

$10.99

$

In Stock, Qty 20+

88

Scag 04003-12

Bolt, Carraige 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

89

Scag 04040-04

Flatwasher, 5/16"

$0.99

$

In Stock, Qty 20+

90

Scag 04021-04

Nut, Center Lock 5/16-18

$0.99

$

In Stock, Qty 20+

91

Scag 483176

Wear Pad

$34.99

$

In Stock, Qty 19

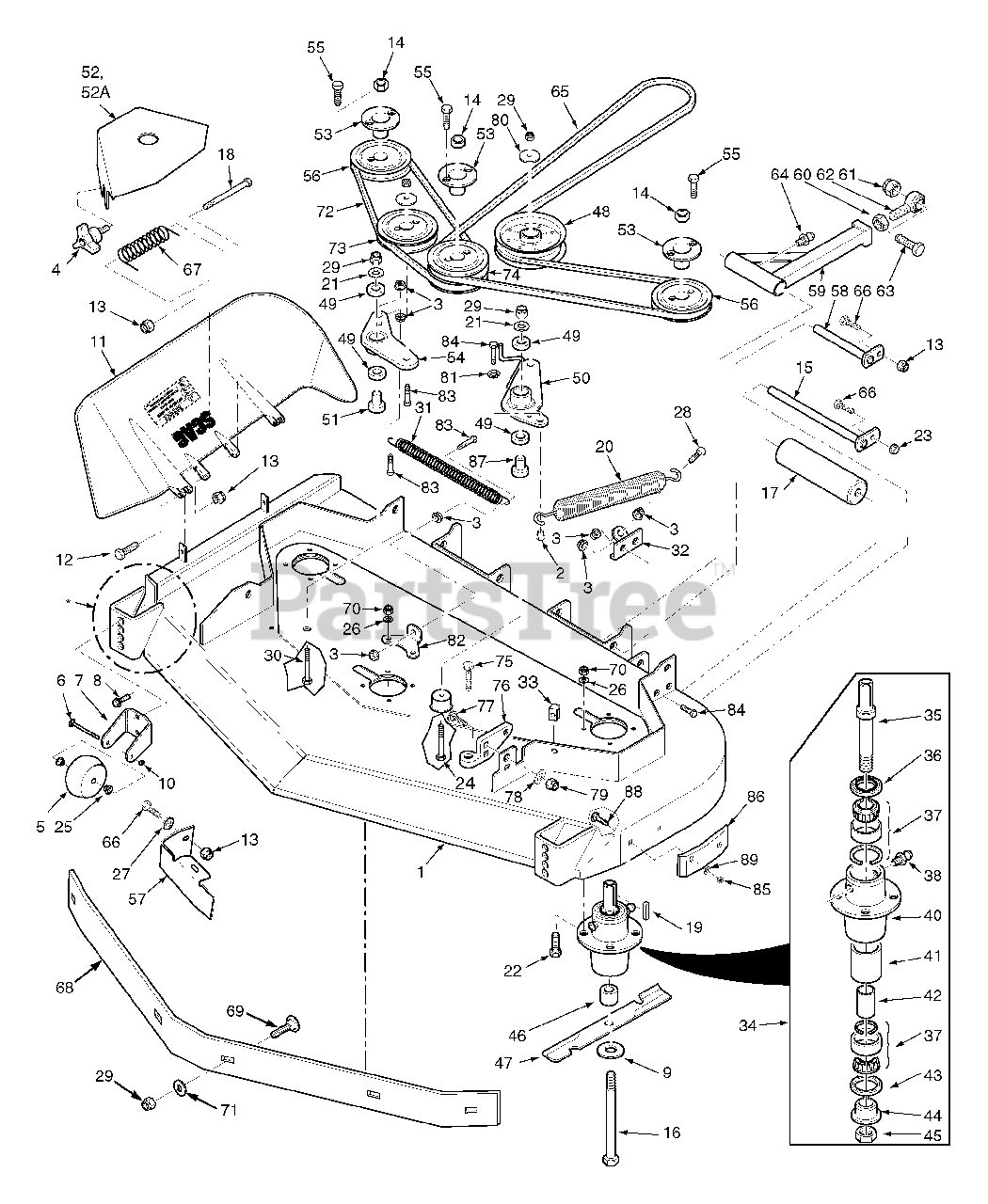

STC48V-26BS - Scag Tiger Cub 48" Zero-Turn Mower, 26hp Briggs & Stratton (SN: D1300001 - D1399999) Cutter Decks 48" Parts Diagram

Cutter Decks 48" Parts Diagram
