STC48V-26BS - Scag Tiger Cub 48" Zero-Turn Mower, 26hp Briggs & Stratton (SN: D1300001 - D1399999) Engine And Attaching Parts (Briggs & Stration) Parts Diagram

Tiger Cub 48" Zero-Turn Mower, 26hp Briggs & Stratton

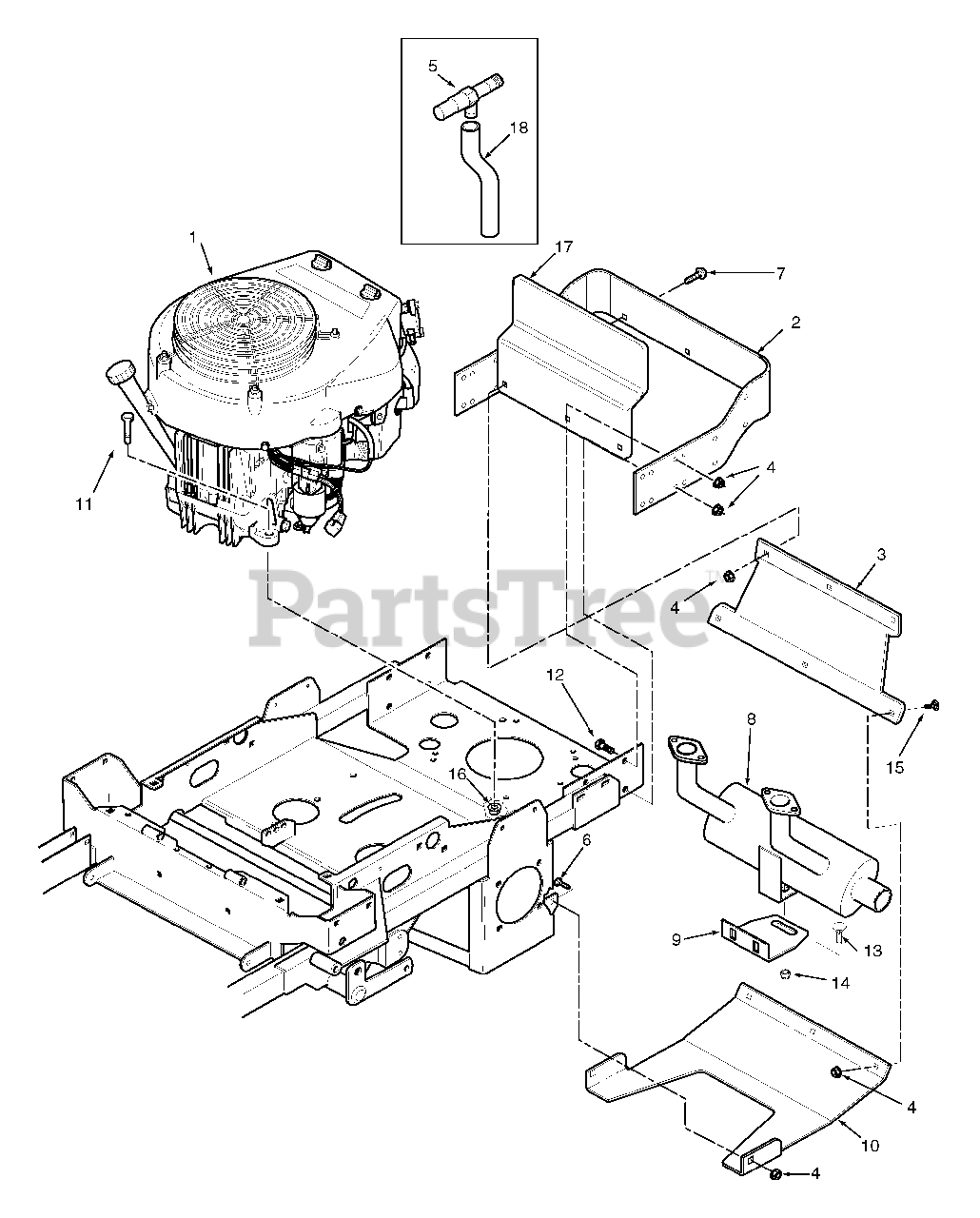

Engine And Attaching Parts (Briggs & Stration) Parts Diagram

  • Title

1

Scag 483439

Engine, Briggs & Stratton 26hp ELS

$

$

Currently unavailable

Scag 483401

Engine, Briggs & Stratton 23hp Vanguard

$

$

Currently unavailable

2

Scag 423770

Bumper, Rear

$115.99

$

In Stock, only 1 left!

0

3

Scag 424107

Shield, Rear

Note: (48" & 52")

$60.99

$

Usually ships in 2-12 days

0

Scag 41031

Weight, Rear Shield

Note: ( 61" Only)

$260.99

$

Usually ships in 2-12 days

0

4

Scag 04019-04

Nut, Serr. Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

5

Scag 482510

Extension, Oil Drain 3.3"

$37.99

$

Usually ships in 2-12 days

0

6

Scag 04003-23

Bolt, Carr. 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

7

Scag 04104-01

Bolt, 3/8-16 x 1" Torx

$3.99

$

Usually ships in 2-12 days

0

8

Scag 483288

Muffler
(Superseded to 484567)

Note: (48")

$183.99

$

Usually ships in 2-12 days

0

Scag 483416

Muffler

Note: (52" & 61")

$279.99

$

Usually ships in 2-12 days

0

9

Scag 424133

Bracket, Muffler

$24.99

$

In Stock, only 1 left!

0

10

Scag 423555

Plate, Skid

$146.99

$

Usually ships in 2-12 days

0

11

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 16

0

12

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 20+

0

13

Scag 04003-12

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 15

0

14

Scag 04019-03

Nut, Serr. Flange 5/16-18

$0.99

$

In Stock, Qty 16

0

15

Scag 04003-31

Bolt, Carr. 3/8-16 x 3/4"

$0.99

$

In Stock, only 3 left!

0

16

Scag 04019-03

Nut, Serr. Flange 5/16-18

$0.99

$

In Stock, Qty 16

0

17

Scag 424415

Guard, Carb Inlet

$35.99

$

Usually ships in 2-12 days

0

18

Scag 483280-01

Tubing, Oil Drain 1/2" x 8"
(Superseded to 483280)

$3.49

$

Usually ships in 2-12 days

0
