STC48V-651FS - Scag Tiger Cat 48" Zero-Turn Mower, Kawasaki 651FS (SN: G2600001 - G2699999) STC Soft Ride Seat Used On STC48V-26BX & STC48V-651FS Models Only Parts Diagram

Tiger Cat 48" Zero-Turn Mower, Kawasaki 651FS

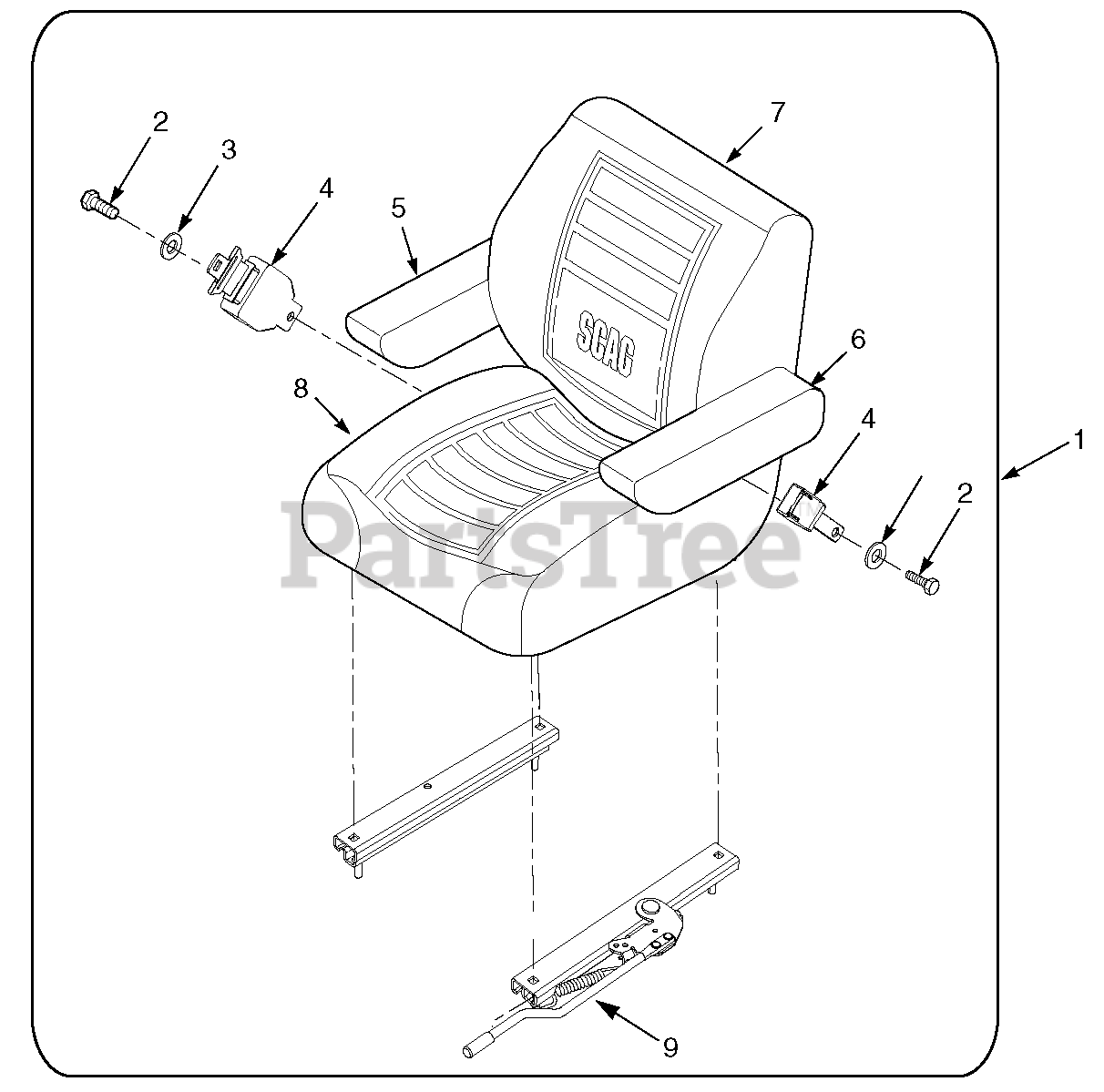

STC Soft Ride Seat Used On STC48V-26BX & STC48V-651FS Models Only Parts Diagram

  • Title

1

Scag 483386

Seat Assembly

$

$

Not available

2

Scag 04001-178

Bolt, Hex Head 7/16-20 x 1"

$1.99

$

In Stock, Qty 12

0

3

Scag 04040-11

Flatwasher, 7/16-.500 x 1.25 x .083

$0.99

$

In Stock, Qty 13

0

4

Scag 483412

Retractable Seat Belt
(Superseded to 485164)

$234.99

$

Usually ships in 2-12 days

0

5

Scag 482618

Armrest, RH

$139.99

$

Usually ships in 2-12 days

0

Scag 482616

Cover, Armrest

$85.99

$

Usually ships in 2-12 days

0

6

Scag 482617

Armrest, LH
(Superseded to 486003)

$106.99

$

Usually ships in 2-12 days

0

Scag 482616

Cover, Armrest

$85.99

$

Usually ships in 2-12 days

0

7

Scag 482938

Cover, Backrest

$285.99

$

Usually ships in 2-12 days

0

8

Scag 482939

Cover, Cushion

$173.99

$

In Stock, only 1 left!

0

9

Scag 482937

Seat Track Set

$186.99

$

Usually ships in 2-12 days

0
