STCII-48V-22FS - Scag Tiger Cat II 48" Zero-Turn Mower, 22hp Kawasaki (SN: L8800001 - L8899999) Brake Components Parts Diagram

Tiger Cat II 48" Zero-Turn Mower, 22hp Kawasaki

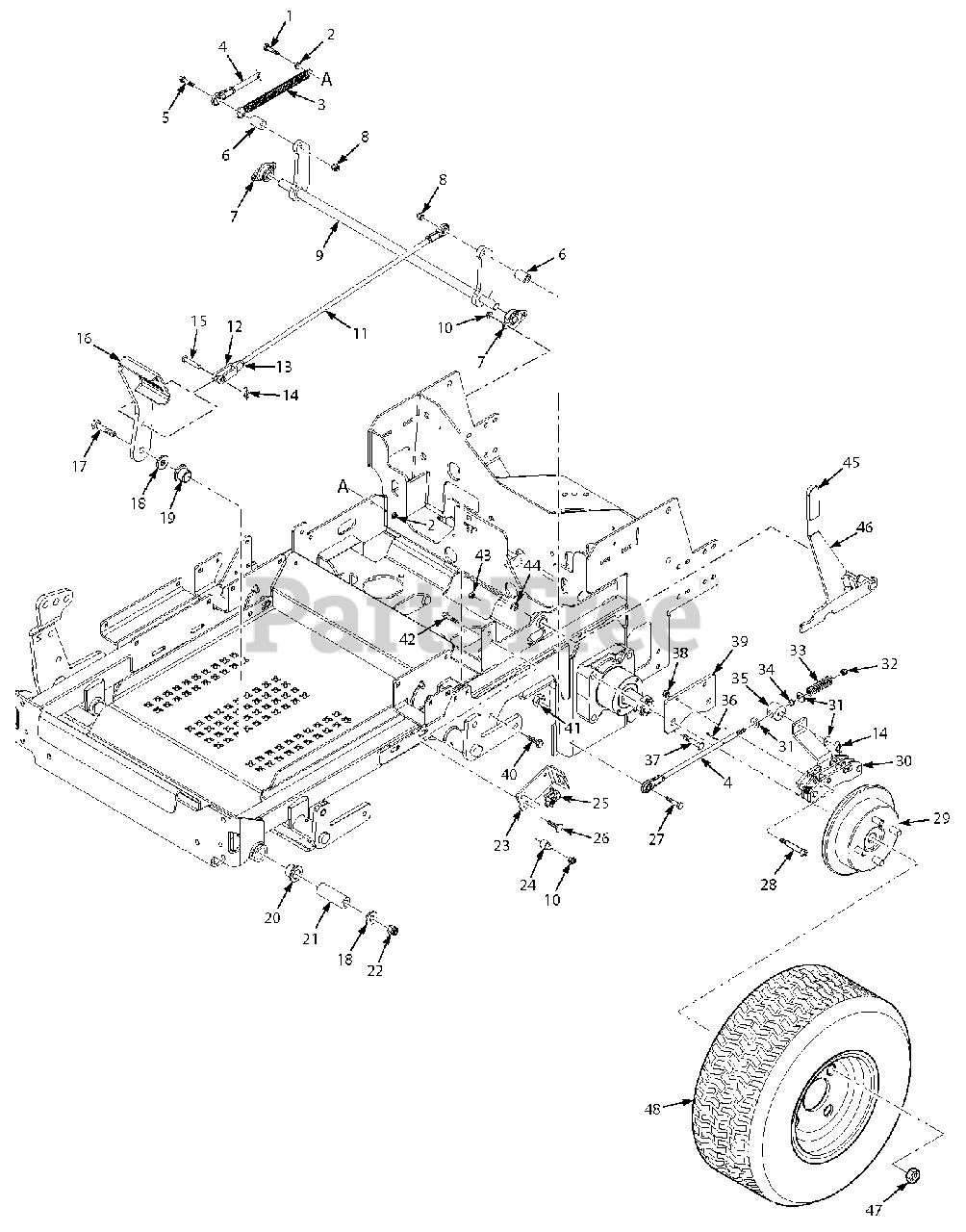

Brake Components Parts Diagram

  • Title

1

Scag 04001-59

Bolt, Hex Head 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 16

0

2

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

3

Scag 485659

Spring, Brake Return
(Superseded to 485831)

$6.49

$

Usually ships in 2-12 days

0

4

Scag 462465

Brake Link Assembly

Note: (incl. #31, 32, 33, 34, 35, 36)

$70.99

$

Usually ships in 2-12 days

0

5

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 10

0

6

Scag 43572

Spacer

$1.99

$

In Stock, only 3 left!

0

7

Scag 48796

Bearing, Self Align - 5/8" I.D.

$12.99

$

Usually ships in 2-12 days

0

8

Scag 04117-02

Nut, Flanged Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

9

Scag 452342

Brake Bellcrank Weldment

$78.99

$

Usually ships in 2-12 days

0

10

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

11

Scag 492001

Brake Rod Assembly
(Superseded to 485740)

$28.99

$

Usually ships in 2-12 days

0

11

Scag 483340

Rod End, 3/8-24 LH

$20.99

$

Usually ships in 2-12 days

0

11

Scag 04020-26

Nut, 3/8-24 UNF LH Jam

$1.99

$

In Stock, Qty 7

0

12

Scag 48343-04

Clevis

$17.99

$

In Stock, only 2 left!

0

13

Scag 04020-25

Nut, 3/8-24 UNF Jam

$0.99

$

In Stock, Qty 5

0

14

Scag 04069-01

Pin, Rue Cotter - 3/8" Dia.

$1.49

$

In Stock, Qty 10

0

15

Scag 04064-02

Clevis Pin, 3/8 x 1.06"

$1.49

$

In Stock, only 4 left!

0

16

Scag 452327

Brake Pedal Weldment

$69.99

$

Usually ships in 2-12 days

0

17

Scag 04001-194

Bolt, Hex Head 1/2-13 x 4-1/4"

$5.49

$

In Stock, Qty 8

0

18

Scag 04040-13

Flatwasher, 1/2-.562 x 1.375 x .109

$0.99

$

In Stock, Qty 6

0

19

Scag 43872

Sleeve, Brake Pivot

$22.99

$

Usually ships in 2-12 days

0

20

Scag 483453-03

Bearing

$7.99

$

In Stock, only 2 left!

0

21

Scag 43872

Sleeve, Brake Pivot

$22.99

$

Usually ships in 2-12 days

0

22

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

23

Scag 426992

Switch Mounting Bracket, Brake

$12.99

$

Usually ships in 2-12 days

0

24

Scag 43602

Spacer

$3.49

$

In Stock, only 2 left!

0

25

Scag 481638

Switch

$15.99

$

In Stock, Qty 18

0

26

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

27

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3"

$1.49

$

In Stock, Qty 19

0

28

Scag 04009-10

Bolt, 1/2 x 2-3/4" Shoulder

$6.49

$

In Stock, Qty 13

0

29

Scag 462808

Brake Hub

$156.99

$

In Stock, only 1 left!

0

30

Scag 485595

Brake Caliper

$93.99

$

In Stock, only 4 left!

0

31

Scag 04040-05

Flatwasher, 3/8-.406 x .812 x .065

$0.99

$

In Stock, Qty 15

0

32

Scag 04021-18

Nut, Elastic Stop 3/8-24

$1.99

$

In Stock, Qty 11

0

33

Scag 484535

Spring, Brake

$10.99

$

In Stock, only 1 left!

0

34

Scag 483453-23

Bearing

$5.49

$

In Stock, only 1 left!

0

35

Scag 462452

Swivel Assembly, Brake

$21.99

$

In Stock, only 1 left!

0

36

Scag 04061-02

Cotter Pin, 3/32 x 3/4"

$0.99

$

In Stock, Qty 6

0

37

Scag 04001-190

Bolt, Hex Head 1/2-13 x 2-3/4"

$2.49

$

In Stock, Qty 6

0

38

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

39

Scag 426983

Mounting Bracket, Brake

$13.99

$

Usually ships in 2-12 days

0

40

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

41

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

42

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

43

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

44

Scag 04050-01

Retaining Ring, .625 Ext "E"

$0.99

$

In Stock, Qty 20+

0

45

Scag 482102

Grip, Brake Lever

$3.99

$

In Stock, only 2 left!

0

46

Scag 462820

Lever w/Grip, Parking Brake

$60.99

$

Usually ships in 2-12 days

0

47

Scag 04028-02

Wheel Nut, 1/2-20

$1.99

$

In Stock, Qty 20+

0

48

Scag 485586

Wheel Assy 24 x 9.5-12 (48" Deck)

$347.99

$

Usually ships in 2-12 days

0

48

Scag 485587

Rim (48" Deck)

$122.99

$

In Stock, only 1 left!

0

48

Scag 484105

Wheel Assy 24 x 9.5-12 (52" Deck))

$444.99

$

Usually ships in 2-12 days

0

48

Scag 481659

Rim (52" Deck)

$140.99

$

Usually ships in 2-12 days

0

48

Scag 484104

Tire 24 x 9.5-12 (48" & 52" Deck)

$329.99

$

In Stock, only 1 left!

0

48

Scag 481850

Wheel Assy 24 x 12-12 (61" Deck)

$394.99

$

Usually ships in 2-12 days

0

48

Scag 481851

Rim (61" Deck)

$141.99

$

In Stock, only 2 left!

0

48

Scag 481852

Tire 24 x 12-12 (61" Deck)

$297.99

$

Usually ships in 2-12 days

0
