STCII-48V-23CV - Scag Tiger Cat II 48" Zero-Turn Mower, 23hp Kohler (SN: L8900001 - L8999999) Engine & Attaching Parts Parts Diagram

Tiger Cat II 48" Zero-Turn Mower, 23hp Kohler

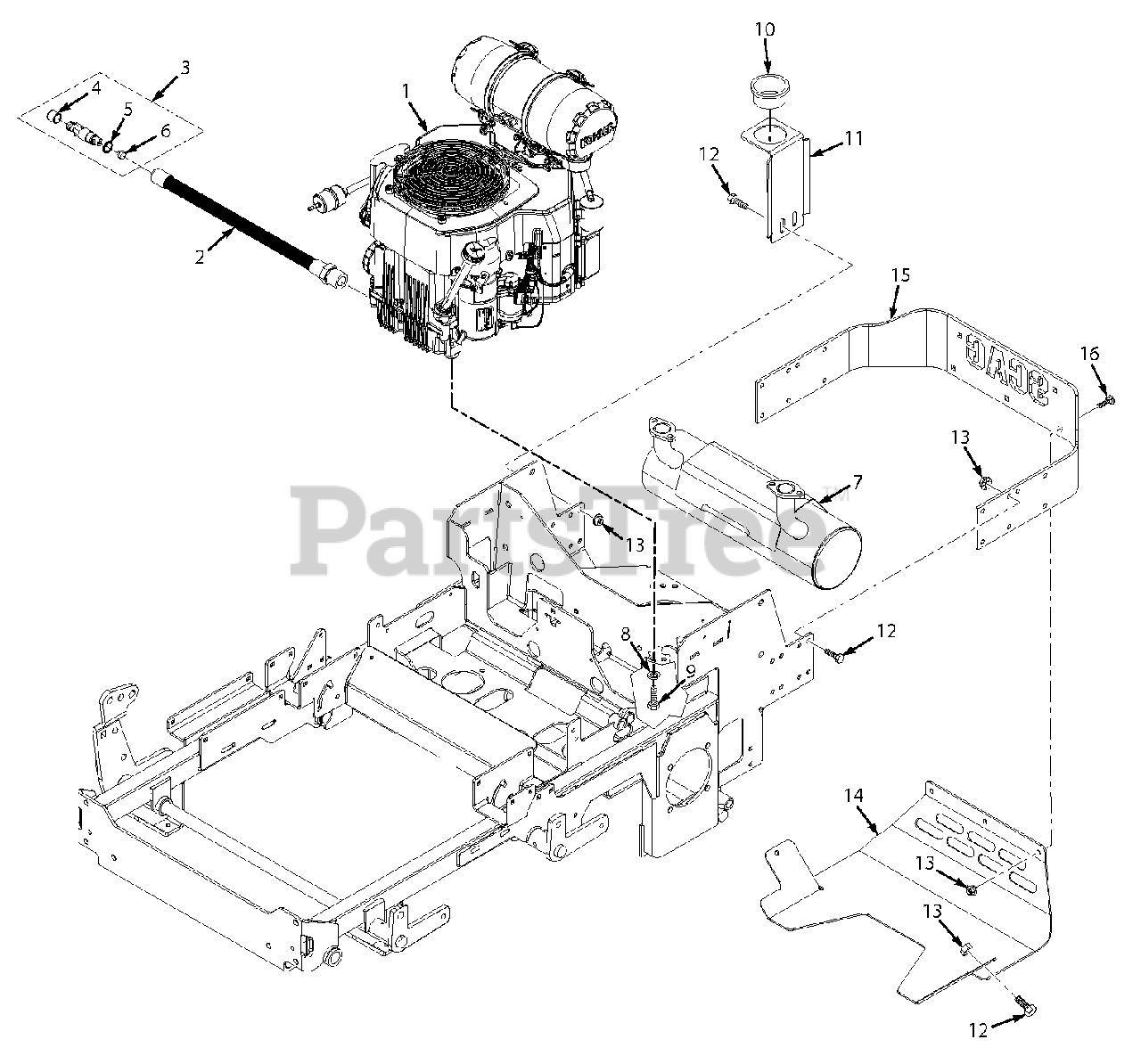

Engine & Attaching Parts Parts Diagram

  • Title
1

Scag 485029

Engine, Kawasaki 22FS

$

$

Currently unavailable

1

Scag 485020

Engine, Kawasaki 22FX

$

$

Currently unavailable

1

Scag 485021

Engine, Kawasaki 23FX

$

$

Currently unavailable

1

Scag 485727

Engine, Kohler 23CV

$

$

Currently unavailable

1

Scag 485728

Engine, Kohler 25CV-EFI

$

$

Currently unavailable

1

Scag 485729

Engine, Kohler 26CV-EFI

$

$

Currently unavailable

2

Scag 484581

Hose, Oil Drain - Kawasaki FX / FS

Note: (incl. #3, 4, 5, 6)

$61.99

$

In Stock, only 1 left!

0

2

Scag 484706

Hose, Oil Drain - Kohler CV & CV-EFI

Note: (incl. #3, 4, 5, 6)

$41.99

$

Usually ships in 2-12 days

0

3

Scag 484583

Valve Assembly, Oil Drain

$19.99

$

In Stock, only 1 left!

0

4

$0.99

$

In Stock, Qty 5

0

5

Scag 48603-12

O-Ring

$0.99

$

In Stock, Qty 10

0

6

$0.99

$

Usually ships in 2-12 days

0

7

Scag 485705

Muffler, Kawasaki FS/FX

$202.99

$

Usually ships in 2-12 days

0

7

Scag 484568

Muffler, Kohler 23CV
(Superseded to 486141)

$185.99

$

Usually ships in 2-12 days

0

7

Scag 484650

Muffler, Kohler 25CV-EFI & 26CV-EFI

$209.99

$

Usually ships in 2-12 days

0

8

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FS

$0.99

$

In Stock, Qty 20+

0

9

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FS

$0.99

$

In Stock, Qty 13

0

9

Scag 04011-07

Bolt, Hex Head 3/8-16 x 1-1/4" Self Tap, Kohler CV & CV-EFI

$3.49

$

In Stock, Qty 11

0

10

Scag 484617

Bushing, Thick Panel Snap

$3.49

$

Usually ships in 2-12 days

0

11

Scag 426040

Bracket, Oil Drain Hose

$26.99

$

Usually ships in 2-12 days

0

12

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 20+

0

13

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

14

Scag 427032

Plate, Skid

$85.99

$

Usually ships in 2-12 days

0

15

Scag 425725

Bumper, Rear

$137.99

$

Usually ships in 2-12 days

0

16

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0
