STCII-61V-32BV - Scag Tiger Cat II 61" Zero-Turn Mower, 32hp Vanguard (SN: S8000001 - S8099999) ENGINE & ATTACHING PARTS Parts Diagram

Tiger Cat II 61" Zero-Turn Mower, 32hp Vanguard

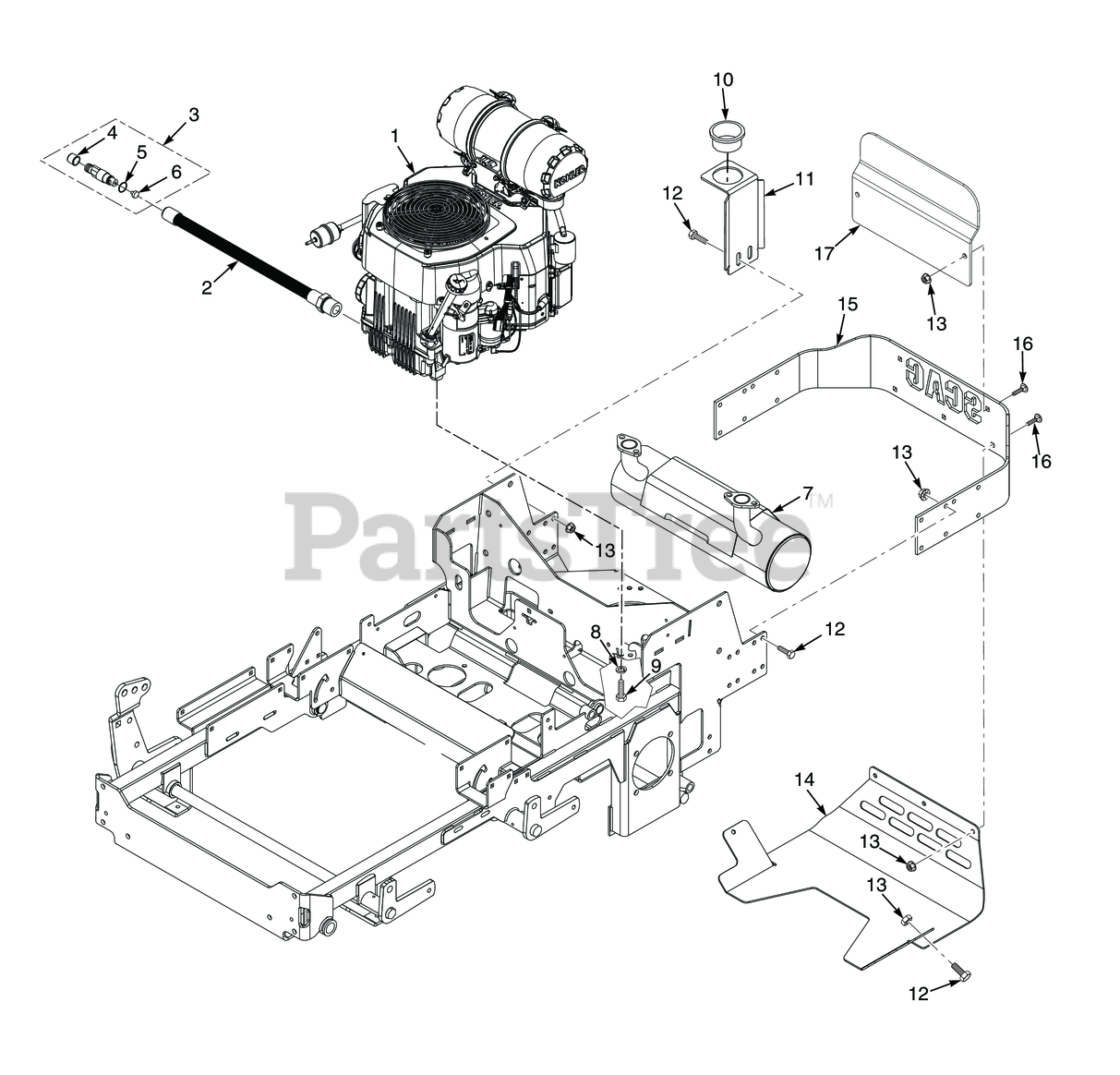

ENGINE & ATTACHING PARTS Parts Diagram

  • Title

1

Scag 486585

Engine, Briggs and Stratton 32BV

Note: Not available through Scag.

$

$

Currently unavailable

2

Scag 484599

Hose, OIl Drain, Briggs & Stratton

$62.99

$

Usually ships in 2-12 days

0

3

Scag 484583

Valve Assembly, Oil Drain

$19.99

$

In Stock, only 1 left!

0

4

Scag 484585

O-Ring

$0.99

$

In Stock, Qty 5

0

5

Scag 48603-12

O-Ring

$0.99

$

In Stock, Qty 10

0

6

Scag 484586

Seal

$0.99

$

Usually ships in 2-12 days

0

7

Scag 486579

Muffler, Briggs and Stratton 32BV

$202.99

$

Usually ships in 2-12 days

0

Muffler, Yamaha

Note: Not available through Scag.

$

$

Not available

8

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FS

$0.99

$

In Stock, Qty 20+

0

9

Scag 04001-20

Bolt, Hex Head, 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 15

0

Scag 04134-03

Nut, Flanged Top Lock 3/8-16

$0.99

$

Usually ships in 2-12 days

0

10

Scag 484617

Bushing, Thick Panel Snap

$3.49

$

Usually ships in 2-12 days

0

11

Scag 426040

Bracket, Oil Drain Hose

$26.99

$

Usually ships in 2-12 days

0

12

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 20+

0

13

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

14

Scag 427032

Plate, Skid

$85.99

$

Usually ships in 2-12 days

0

15

Scag 425725

Bumper, Rear

$137.99

$

Usually ships in 2-12 days

0

16

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

0

17

Scag 425926

Guard, Engine

$39.99

$

Usually ships in 2-12 days

0

Scag 04031-03

Lockwasher, 5/16" Ext. Tooth (Kohler x1)

Note: Not Shown

$0.99

$

Usually ships in 2-12 days

0
