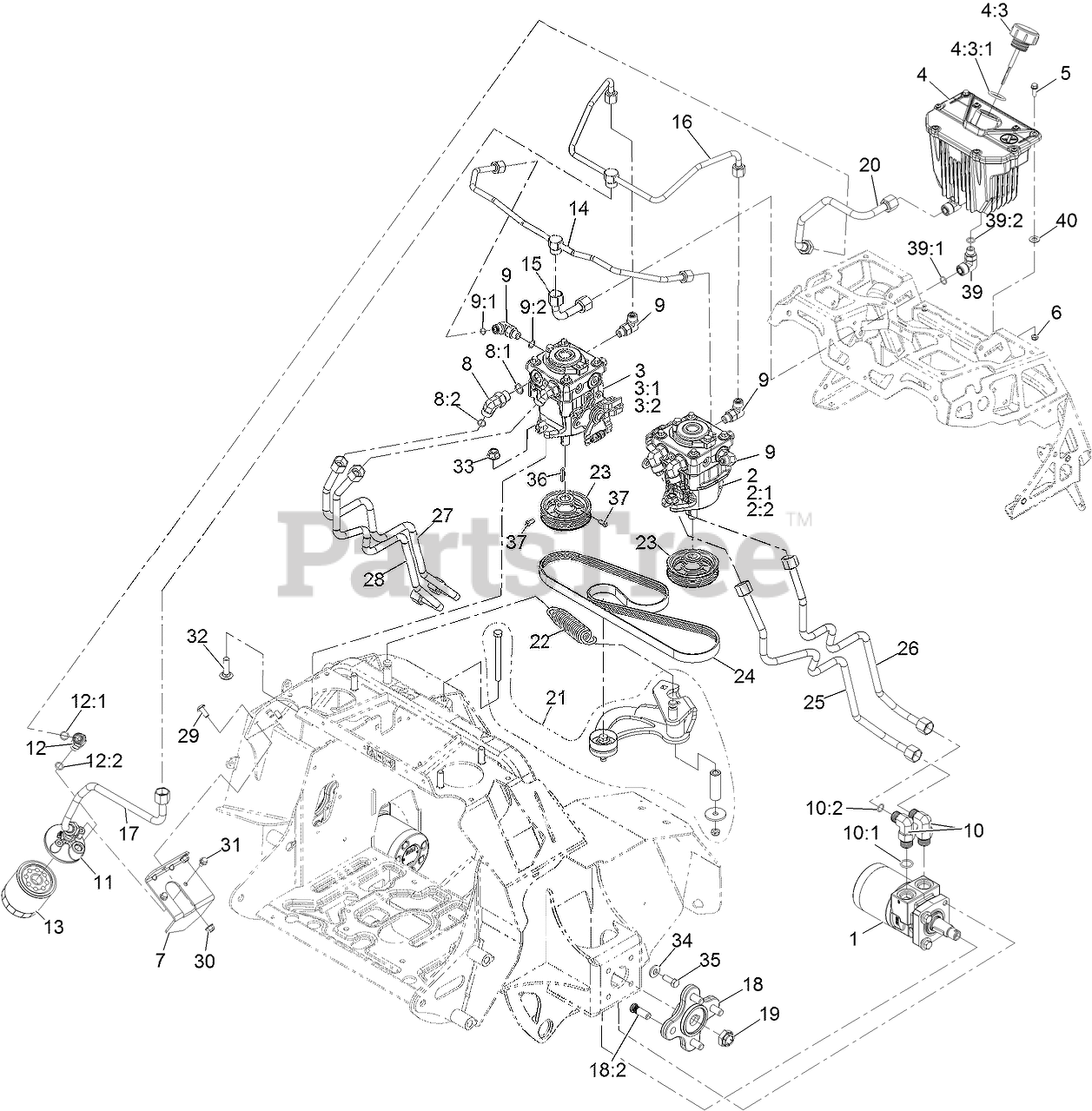

STE600CKA32300 - Exmark 32" Staris E-Series Stand-On Mower, Kaw (SN: 406294345 - 408644345) (Rev A) (2020) Hydraulic Assembly Parts Diagram

32" Staris E-Series Stand-On Mower, Kaw

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 135-1274

Motor-Wheel

$916.99

$

Usually ships in 3-6 days

0

2

Exmark 135-2212

PUMP-HYDRAULIC 10CC

$1246.99

$

Usually ships in 3-6 days

0

2:1

Exmark 126-2479

KIT, 10CC PUMP KIT

$430.99

$

Usually ships in 3-6 days

0

2:2

Exmark 105-6184

SEAL OVERHAUL KIT

$84.99

$

In Stock, only 3 left!

0

3

Exmark 135-2211

PUMP-HYDRAULIC 10CC

$1246.99

$

Usually ships in 3-6 days

0

3:1

Exmark 126-2479

KIT, 10CC PUMP KIT

$430.99

$

Usually ships in 3-6 days

0

3:2

Exmark 105-6184

SEAL OVERHAUL KIT

$84.99

$

In Stock, only 3 left!

0

4

Exmark 135-3305

ASM, Hydraulic Reservoir

$213.99

$

In Stock, only 1 left!

0

4:3

Exmark 142-2793

Cap, Hydraulic

$28.99

$

Usually ships in 3-6 days

0

4:3:1

Exmark 142-2792

O-Ring

$1.49

$

In Stock, Qty 20+

0

5

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

6

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Exmark 135-1634-03

Bracket-Filter

$26.99

$

Usually ships in 3-6 days

0

8

Exmark 340-98

FITTING-ELBOW, 90 DEG

$36.99

$

In Stock, only 1 left!

0

8:1

Exmark 237-79

O-RING

$6.49

$

In Stock, only 4 left!

0

8:2

Exmark 237-30

O-RING

$2.99

$

Usually ships in 3-6 days

0

9

Exmark 340-77

FITTING-ELBOW, 90 DEG

$28.99

$

Usually ships in 3-6 days

0

9:1

Exmark 237-22

O-RING

$2.99

$

In Stock, Qty 6

0

9:2

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

10

Exmark 340-105

FITTING-ELBOW, 90 DEG

$46.99

$

In Stock, only 1 left!

0

10:1

Exmark 237-80

O-RING

$6.99

$

In Stock, Qty 16

0

10:2

Exmark 237-30

O-RING

$2.99

$

Usually ships in 3-6 days

0

11

Exmark 103-2888

HEAD-FILTER

$94.99

$

Usually ships in 3-6 days

0

12

Exmark 340-96

Adapter

$45.99

$

Usually ships in 3-6 days

0

12:1

Exmark 237-30

O-RING

$2.99

$

Usually ships in 3-6 days

0

12:2

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

13

Exmark 109-4180

FILTER-25 MICRON, BI-DIRE

$52.99

$

In Stock, Qty 20+

0

14

Exmark 135-7056

Line, Hydraulic, Case Tee

$99.99

$

Usually ships in 3-6 days

0

15

Exmark 135-7054

Line, Hydraulic, Case

$46.99

$

Usually ships in 3-6 days

0

16

Exmark 135-7055

Line, Hydraulic, Charge Tee

$99.99

$

Usually ships in 3-6 days

0

17

Exmark 135-7154

Line-Hydraulic Charge

$80.99

$

Usually ships in 3-6 days

0

18

Exmark 135-1621

ASM-Hub And Studs

$56.99

$

Usually ships in 3-6 days

0

18:2

Exmark 116-1696

STUD-WHEEL

$3.99

$

In Stock, Qty 20+

0

19

Exmark 116-2839

NUT-LOCK

$12.99

$

In Stock, only 2 left!

0

20

Exmark 135-7153

Line-Hydraulic Supply

$80.99

$

Usually ships in 3-6 days

0

21

Exmark 135-1270

ASM, Idler Arm

$111.99

$

In Stock, only 1 left!

0

22

Exmark 135-1272

SPRING, EXTENSION

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$18.99

$

In Stock, Qty 6

0

23

Exmark 135-1197

PULLEY, PUMP
(Superseded to 142-3044)

$114.99

$

In Stock, only 2 left!

0

24

Exmark 135-1196

Belt, Pvk5

$36.99

$

In Stock, only 2 left!

0

25

Exmark 142-2823

Kit-Ste HYD Line B-A
(Superseded to 142-5632)

$172.99

$

Usually ships in 3-6 days

0

26

Exmark 142-2824

Kit-Ste HYD Line A-B
(Superseded to 142-5633)

$172.99

$

Usually ships in 3-6 days

0

27

Exmark 142-2825

Kit-Ste HYD Line B-B
(Superseded to 142-5634)

$172.99

$

Usually ships in 3-6 days

0

28

Exmark 142-2826

Kit-Ste HYD Line A-A
(Superseded to 142-5632)

$172.99

$

Usually ships in 3-6 days

0

29

Exmark 126-6268

SCREW-TORX

$1.99

$

In Stock, Qty 5

0

30

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

31

Exmark 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

32

Exmark 3232-3

BOLT-CARR

$3.99

$

In Stock, Qty 5

0

33

Exmark 114-8417

NUT-HF, NI

$2.99

$

In Stock, Qty 10

0

34

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

35

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

36

Exmark 135-7971

Key, 5Mm X 5Mm X 29Mm

$2.99

$

In Stock, Qty 9

0

37

Exmark 3241-7

Screw-SQH

$3.99

$

In Stock, Qty 7

0

39

Exmark 340-99

Fitting-HYD, 90 DEG

$42.99

$

Usually ships in 3-6 days

0

39:1

Exmark 237-30

O-RING

$2.99

$

Usually ships in 3-6 days

0

39:2

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

40

Exmark 73-0041

Washer-Thrust

$1.99

$

In Stock, only 1 left!
