STG-18KH - Scag Three-Wheel Riding Mower, 18hp Kohler (SN: 30000 - 39999) ELECTRICAL SYSTEM Parts Diagram

Three-Wheel Riding Mower, 18hp Kohler

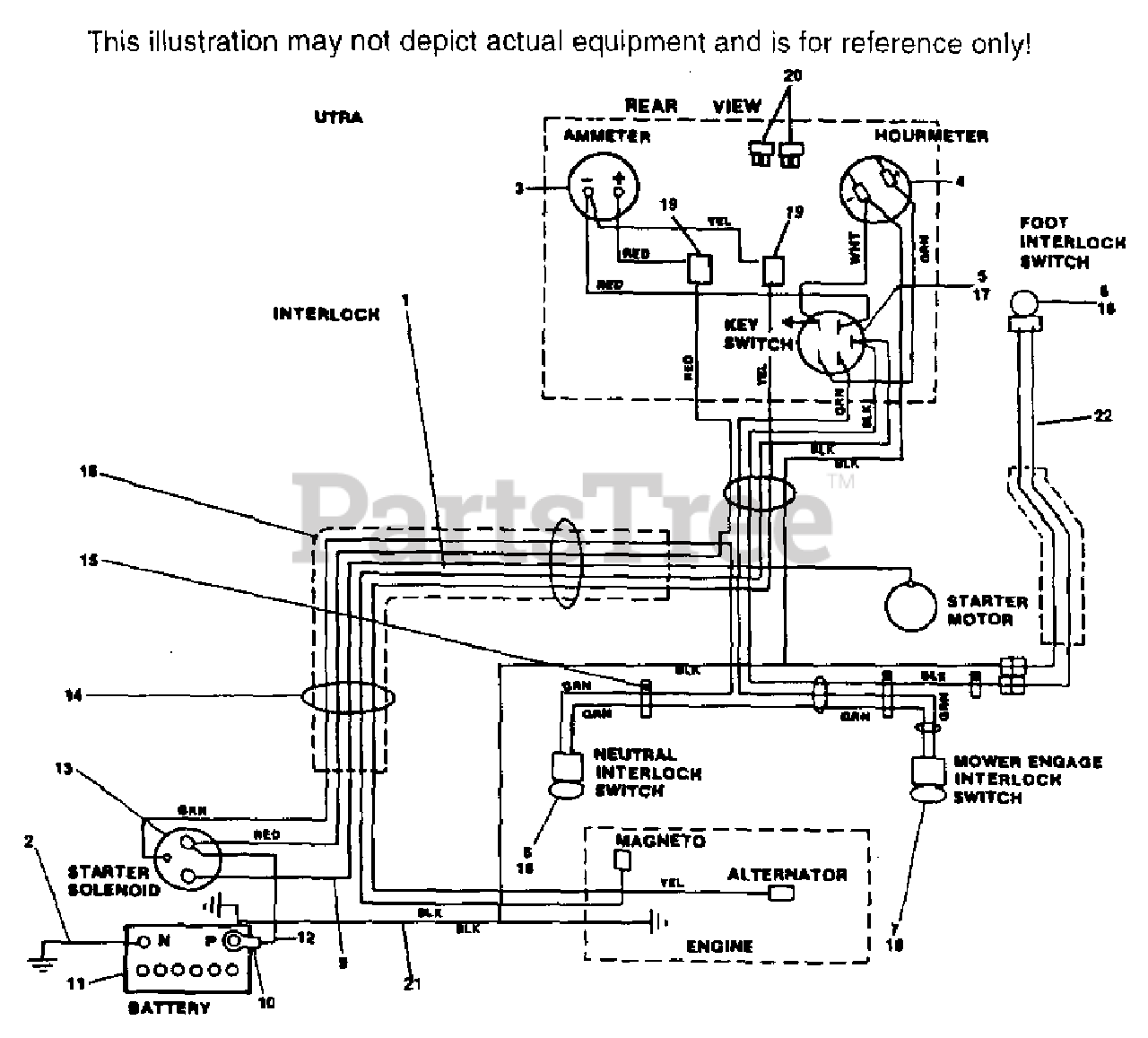

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Scag 48259

WIRING HARNESS, COMPLETE

$

$

Not available

2

Scag 48029-10

BATTERY CABLE, 20" BLACK

$9.99

$

Usually ships in 2-12 days

0

3

Scag 48022

AMMETER
(Superseded to 481755)

$28.99

$

Usually ships in 2-12 days

0

?4

Scag 48023

HOUR METER

$195.99

$

In Stock, only 1 left!

0

5

Scag 48017

KEY SWITCH

$23.99

$

Usually ships in 2-12 days

0

6

Scag 48026

FOOT INTERLOCK SWITCH
(Superseded to 481476)

$58.99

$

In Stock, only 1 left!

0

?7

Scag 48019

MOWER ENGAGEMENT INTERLOCK SWITCH

$37.99

$

Usually ships in 2-12 days

0

?8

Scag 48021

NEUTRAL INTERLOCK SWITCH

$33.99

$

Usually ships in 2-12 days

0

?9

Scag 48029-02

BATTERY CABLE, 31-1/2" RED

$16.99

$

Usually ships in 2-12 days

0

10

Scag 48126

RUBBER BOOT

$8.99

$

Usually ships in 2-12 days

0

11

Scag 48015

BATTERY

$

$

Not available

12

Scag 48029-03

BATTERY CABLE, 13-3/4" RED

$10.99

$

Usually ships in 2-12 days

0

13

Scag 48016

STARTER SOLENOID

$88.99

$

Usually ships in 2-12 days

0

14

Scag 48028

CABLE TIE
(Superseded to 48028-01)

$0.99

$

Usually ships in 2-12 days

0

15

Scag 48030

CABLE CLAMP
(Superseded to 48030-17)

$3.49

$

Usually ships in 2-12 days

0

16

Scag 48033

PLASTIC CONDUIT

$

$

Not available

17

Scag 48018

CONNECTOR, STARTER SWITCH

$1.49

$

Usually ships in 2-12 days

0

18

Scag 48020

CONNECTOR, INTERLOCK SWITCH

$1.49

$

Usually ships in 2-12 days

0

19

Scag 48892

WIRE ASSEMBLY W/FUSE

$

$

Not available

20

Scag 48298

FUSES, 20 AMP BLADE TYPE

$3.99

$

Usually ships in 2-12 days

0

21

Scag 48868

WIRE ASSEMBLY GROUND

$

$

Not available

22

Scag 48616

WIRE, FOOT SWITCH

$40.99

$

Usually ships in 2-12 days

0
