STG-18KH - Scag Three-Wheel Riding Mower, 18hp Kohler (SN: 30000 - 39999) INSTRUMENT PANEL Parts Diagram

Three-Wheel Riding Mower, 18hp Kohler

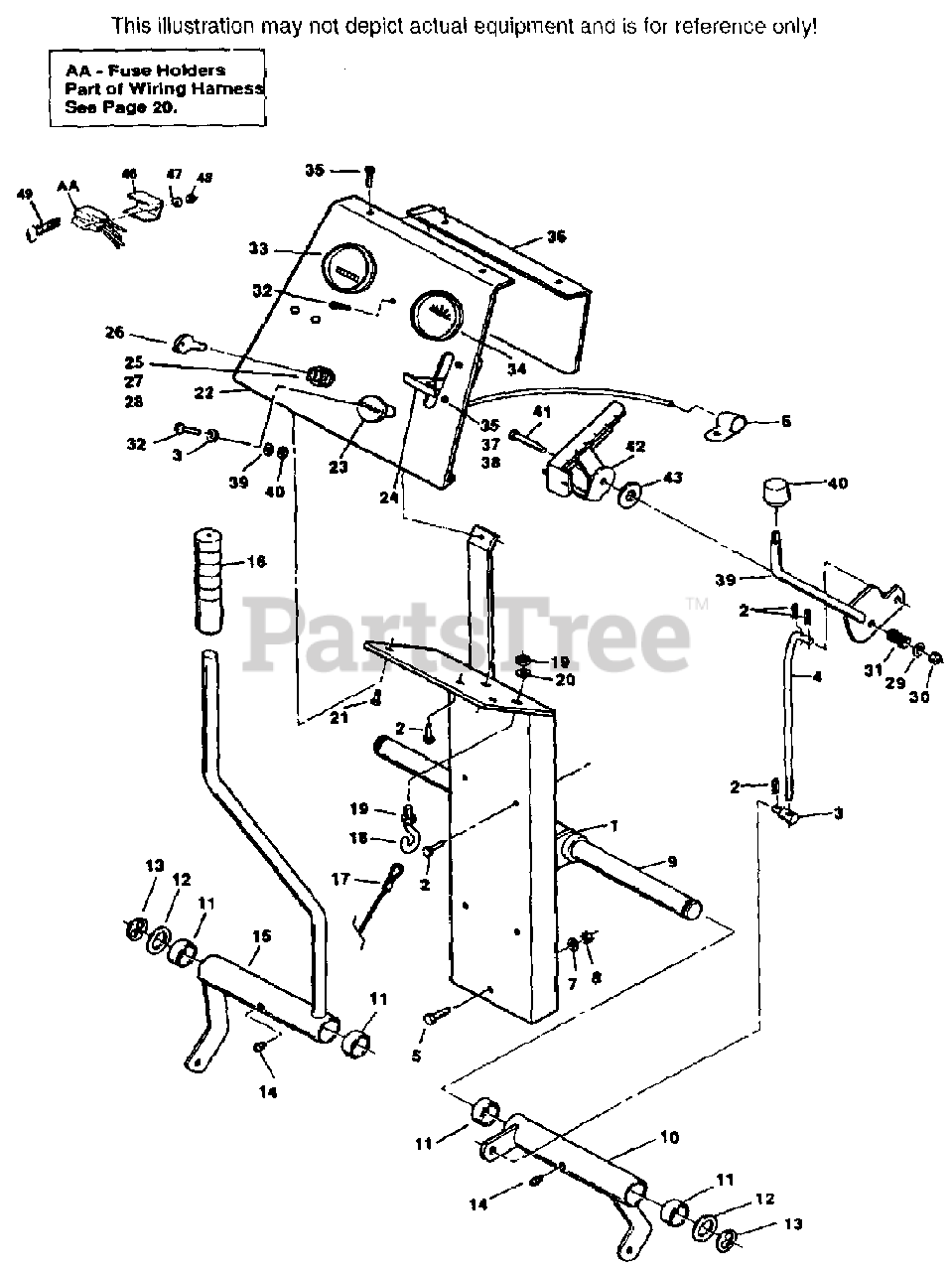

INSTRUMENT PANEL Parts Diagram

  • Title

1

Scag 45025

CONSOLE SUPPORT

$

$

Not available

2

Scag 04062-01

HAIR PIN COTTER, LARGE

$0.99

$

In Stock, Qty 20+

0

3

Scag 43032

SWIVEL JOINT

$6.49

$

Usually ships in 2-12 days

0

4

Scag 43030

SHIFT CONNECTOR ROD

$21.99

$

Usually ships in 2-12 days

0

5

HEX HEAD BOLT, 5/16-18 X 2-1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

6

Scag 48030-01

CLAMP, CABLE
(Superseded to 48030-17)

$3.49

$

Usually ships in 2-12 days

0

7

LOCKWASHER, 5/16 SPRING

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

8

HEX LOCK NUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

9

Scag 43017

BELLCRANK SHAFT

$38.99

$

Usually ships in 2-12 days

0

10

Scag 46142

SHIFTER ASSEMBLY(INCLUDES 11 & 14)

$

$

Not available

11

Scag 48100-06

BRONZE BEARING

$1.49

$

In Stock, Qty 9

0

12

Scag 04041-08

WASHER, 49/64 X 1-1/4 X 16 GA.

$0.99

$

In Stock, Qty 20+

0

13

Scag 04050-02

RETAINING RING, 3/4 EXT. "E"

$0.99

$

In Stock, Qty 10

0

14

Scag 48114-04

GREASE FITTING, 1/4-28 STR

$1.49

$

In Stock, Qty 20+

0

15

Scag 46143

MOWER ENGAGE(INCLUDES 11, 14, 16)

$262.99

$

Usually ships in 2-12 days

0

16

Scag 48093

GRIP, MOWER LEVER

$1.99

$

In Stock, only 1 left!

0

17

Scag 48045

WINCH CABLE ASSEMBLY

$49.99

$

Usually ships in 2-12 days

0

18

Scag 04070-03

EYEBOLT, 3/8-16 X 2"

$39.99

$

Usually ships in 2-12 days

0

19

HEX NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

20

LOCKWASHER, 3/8 SPRING

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

21

HEX HEAD BOLT, 1/4-20 X 3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

22

Scag 42049

INSTRUMENT PANEL

$

$

Not available

23

Scag 48091

CHOKE CONTROL

$51.99

$

Usually ships in 2-12 days

0

24

Scag 48090

THROTTLE CONTROL

$61.99

$

In Stock, only 1 left!

0

25

Scag 48017

STARTER SWITCH(INCLUDES 26-28)

$23.99

$

Usually ships in 2-12 days

0

26

Scag 48017-02

KEY, IGNITION

$4.49

$

In Stock, Qty 7

0

27

Scag 48017-03

LOCKWASHER, INTERNAL TOOTH 5/8"

$0.99

$

In Stock, Qty 7

0

28

Scag 48017-04

HEX NUT, 5/8-11

$1.99

$

In Stock, Qty 5

0

29

WASHER, 13/32 X 13/16 X 16 GA.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

30

HEX NUT, 3/8-16 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

31

Scag 48050

SPRING

$33.99

$

Usually ships in 2-12 days

0

32

TRUSS HEAD SCREW, 1/4-20 X 3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

33

Scag 48023

HOUR METER

$195.99

$

In Stock, only 1 left!

0

34

Scag 48022

AMMETER
(Superseded to 481755)

$28.99

$

Usually ships in 2-12 days

0

35

SCREW, PHILLIPS WASHER HD, #10-32 X 1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

36

Scag 45122

PANEL COVER WELDMENT

$

$

Not available

37

LOCKWASHER, EXT. TOOTH #10

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

38

HEX NUT, #10-32

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

39

Scag 45023

SHIFTER HANDLE

$

$

Not available

40

Scag 48092

SHIFTER KNOB

$5.99

$

Usually ships in 2-12 days

0

41

HEX HEAD BOLT, 3/8-16 X 2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

42

Scag 45024

SHIFT QUADRANT WELDMENT

$

$

Not available

43

Scag 04041-10

WASHER, 3/8 X 2 X 16 GA.

$1.99

$

Usually ships in 2-12 days

0

?44

Scag 45023

SHIFTER HANDLE

$

$

Not available

?45

Scag 48092

SHIFTER KNOB

$5.99

$

Usually ships in 2-12 days

0

46

Scag 42413

BRACKET, FUSE HOLDER

$41.99

$

Usually ships in 2-12 days

0

47

Scag 04031-01

LOCKWASHER, #10 EXTERNAL TOOTH

$0.99

$

In Stock, Qty 20+

0

48

Scag 04021-01

HEX NUT, ELASTIC STOP LOCK #10-32

$0.99

$

In Stock, Qty 10

0

49

SCREW, PHILLIPS HEAD, #10-32 X 1-1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available
